FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2. Remove the mounting plate of the magnetic lock cover.
3. Remove the four screws on the mounting plate of the magnetic lock cover, and remove
the cover of the magnetic lock.

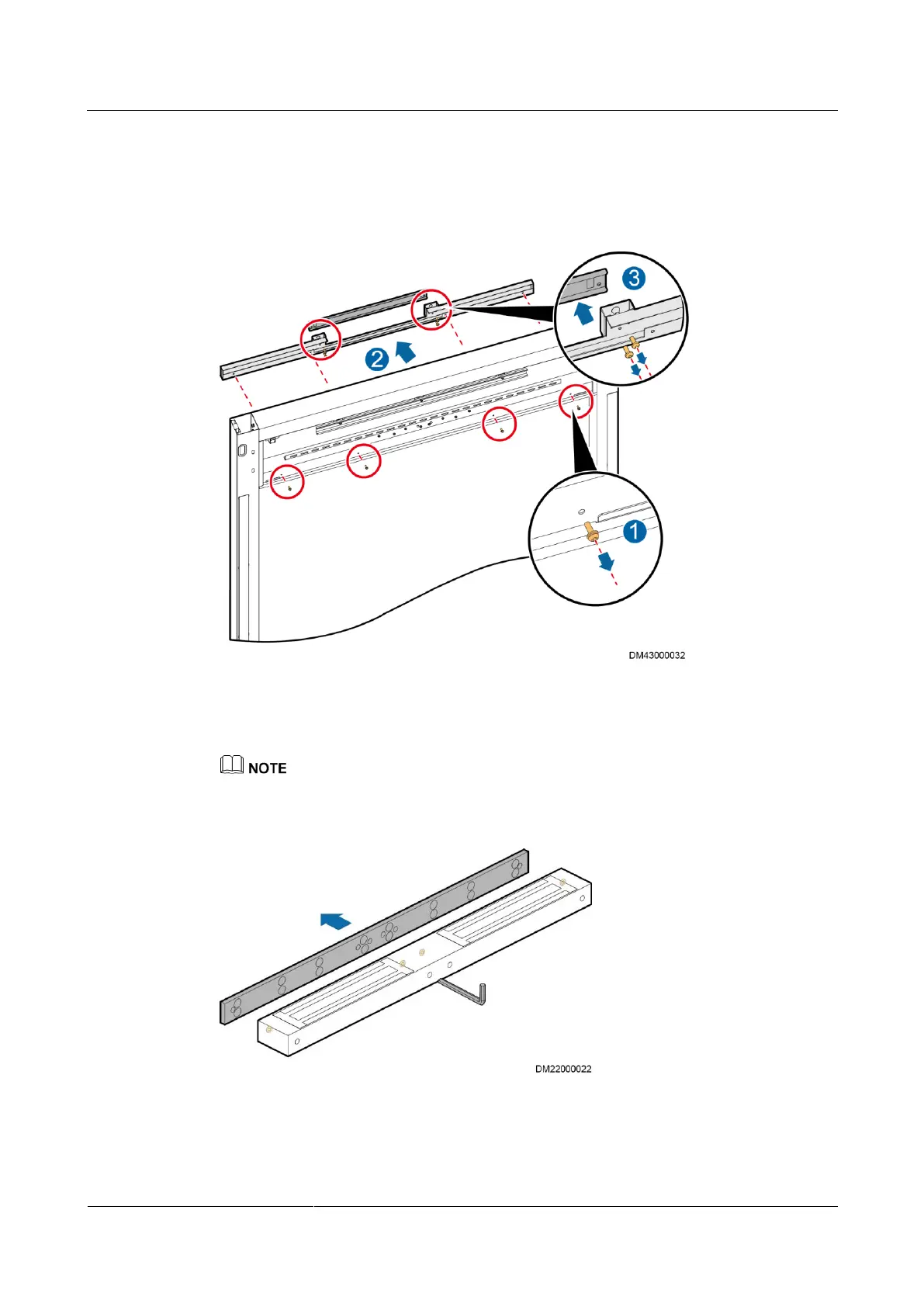

Figure 15-38 Removing the cover of the magnetic lock
Step 2 Remove the magnetic lock fixing plate. Remove the fixing plate from the revolving door
magnetic lock using the hex key delivered with the magnetic lock.
Four hex socket screws need to be removed in this step.
Figure 15-39 Removing the fixing plate of a magnetic lock
Step 3 Install the magnetic lock fixing plate. Secure the magnetic lock fixing plate to the upper frame
mounting kit using eight M4 countersunk screws, as shown by (1) in Figure 15-40.
