FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

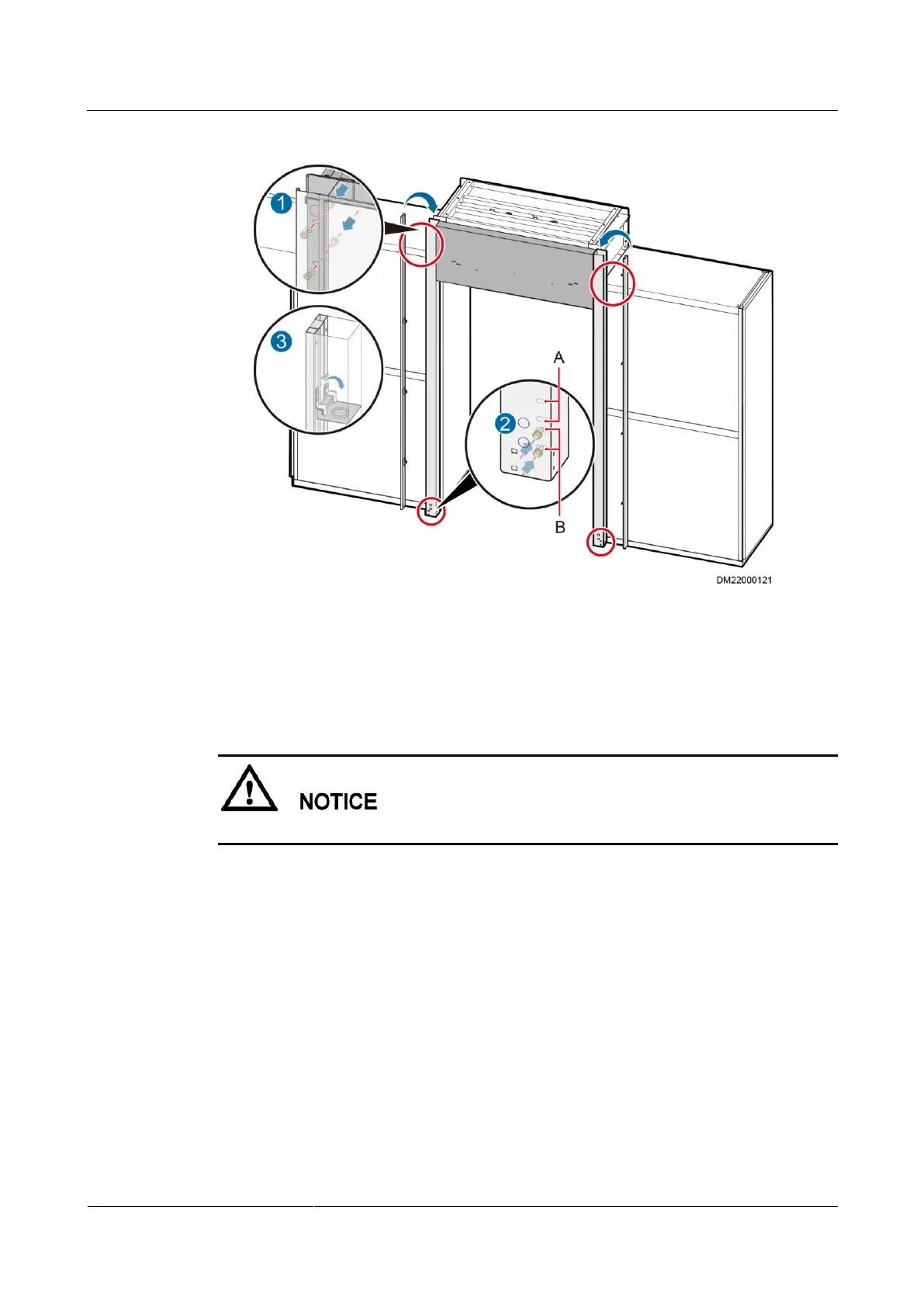

Figure 10-33 Installing a door frame
(A) Mounting holes for securing a door
frame to a 2000 mm high cabinet
(B) Mounting holes for securing a door
frame to a 2200 mm high cabinet
Step 2 Install the guide rail and glass doors.
Before installation, remove the protective rubber strips from the glass panel.
1. Install the glass door rubber strips and magnet fasteners, as shown in Figure 10-34.
