Press down the stop block springs when installing the stop block screws.

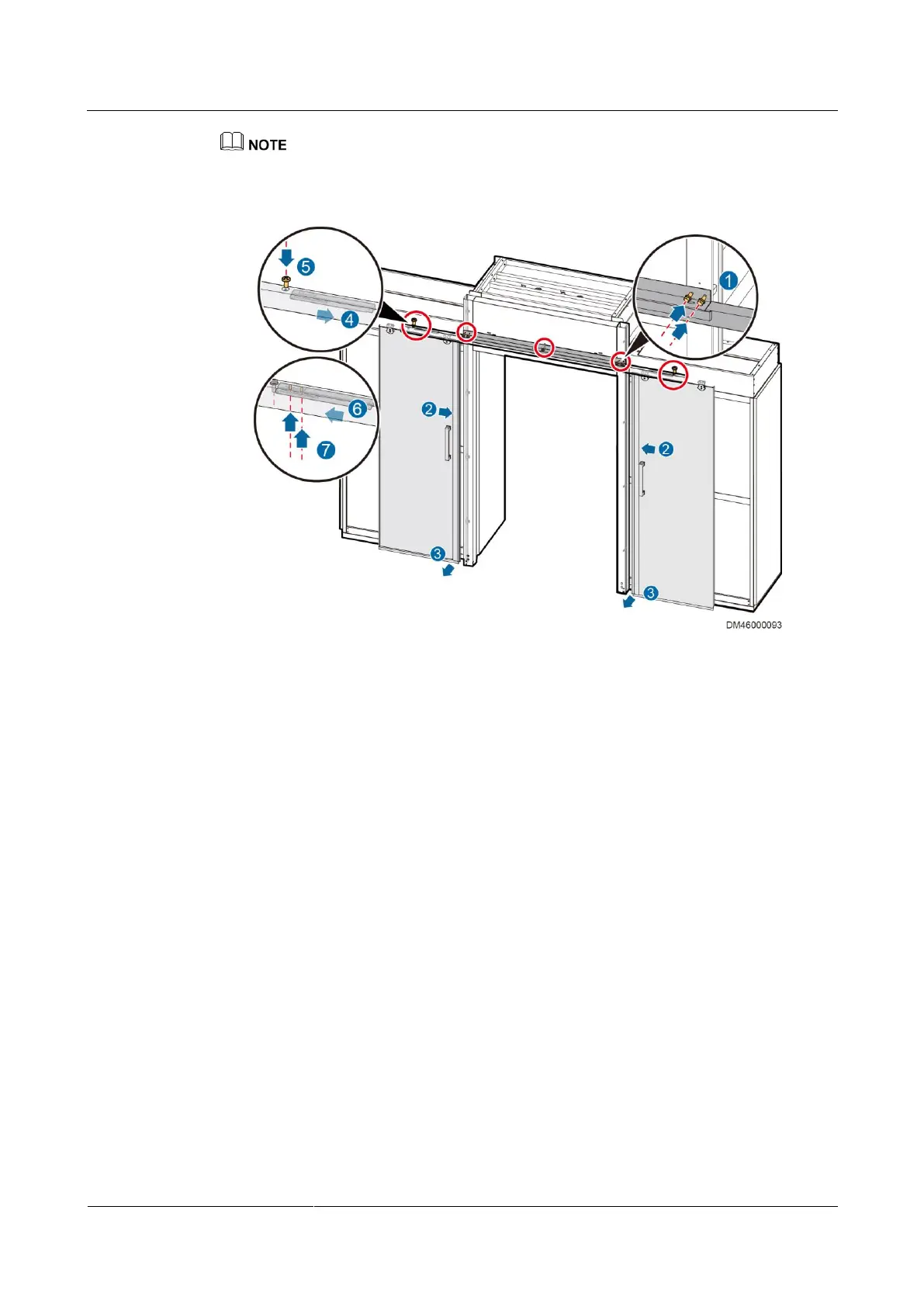

Figure 10-35 Installing the guide rail and glass doors
Step 3 Install dampers, as shown in Figure 10-36.
1. Slide a damper into the glass door, as shown by (1) in Figure 10-36.
2. Snap the damper into the post, and verify that the damper is in close contact with the post,
as shown by (2) and (3) in Figure 10-36.
3. Secure the damper to the post using two M4x10 countersunk screws, as shown by (4) in
Figure 10-36.
4. Install the damper on the other side in the same way.
