FusionModule2000 Smart Modular Data Center

Installation Guide

14 Installing Power Supply and Distribution Devices

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

178

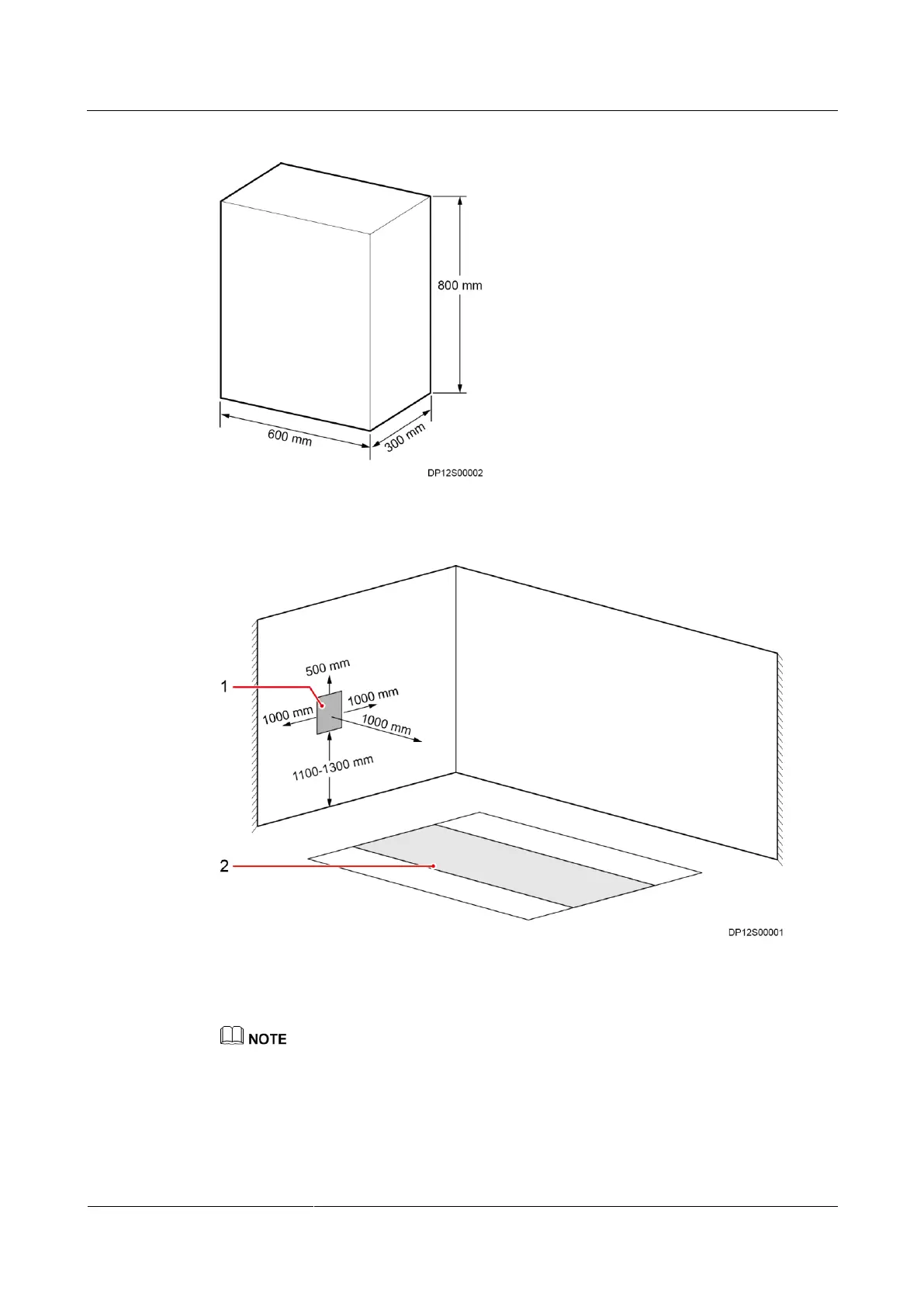

Figure 14-1 Air conditioner PDB dimensions

Figure 14-2 Installation layout and space requirements for the air conditioner PDB

(1) Air conditioner PDB

(2) Smart module

The installation layout and space requirements of the air conditioner PDB are for reference only. They

can be adjusted based on the actual situation.
