FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

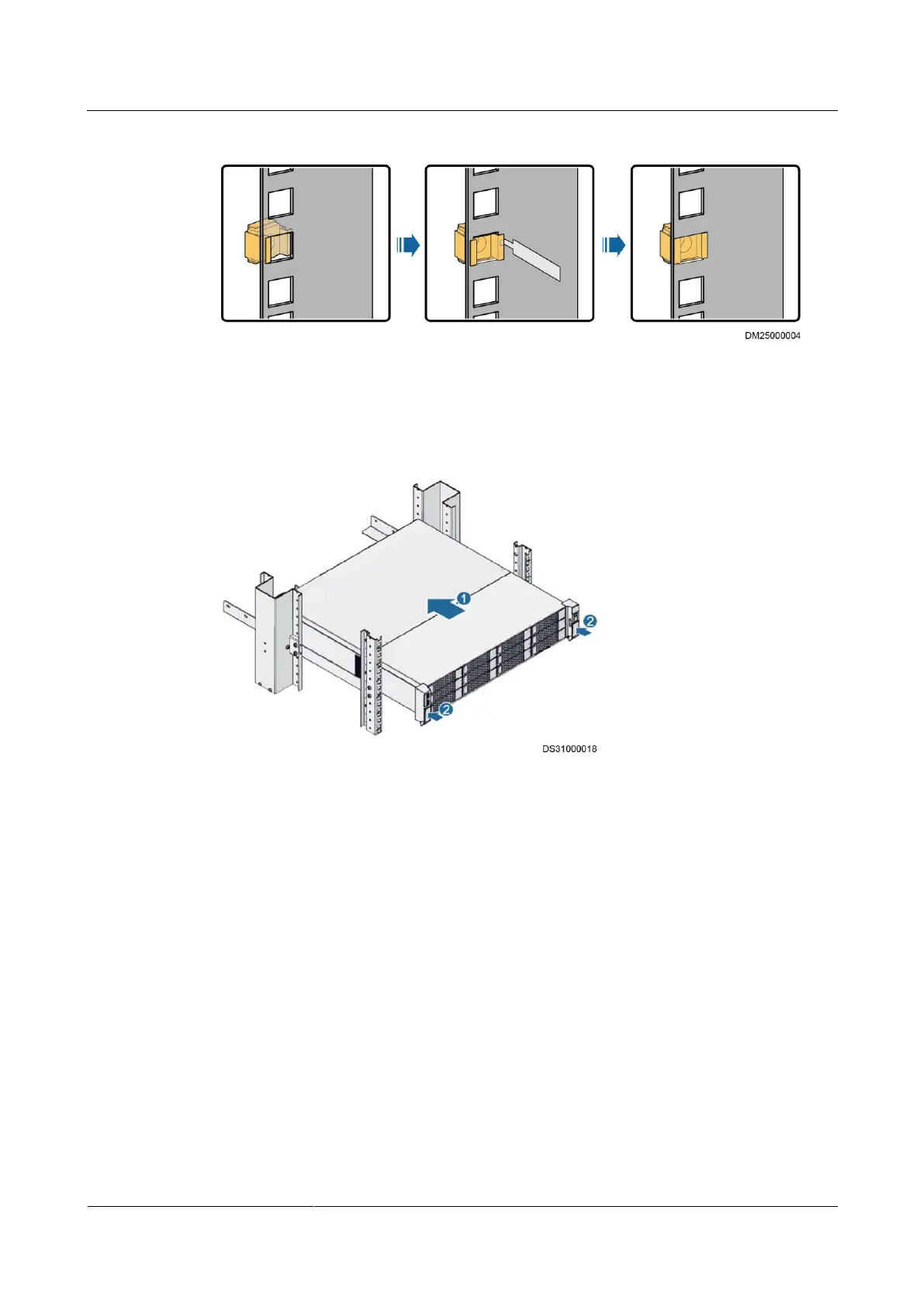

Figure 15-6 Installing a floating nut
Step 2 Place the VCN500 into the network cabinet with caution, and gently press down buttons on
the mounting ears.
Figure 15-7 Placing a VCN500
Step 3 Tighten the captive screws in the mounting ears using a Phillips screwdriver to close the
mounting ear buttons.
