FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
207
1. Take out the magnet from the magnetic lock fitting bag, and knock the positioning pins
of the magnet into the magnet using a rubber mallet.

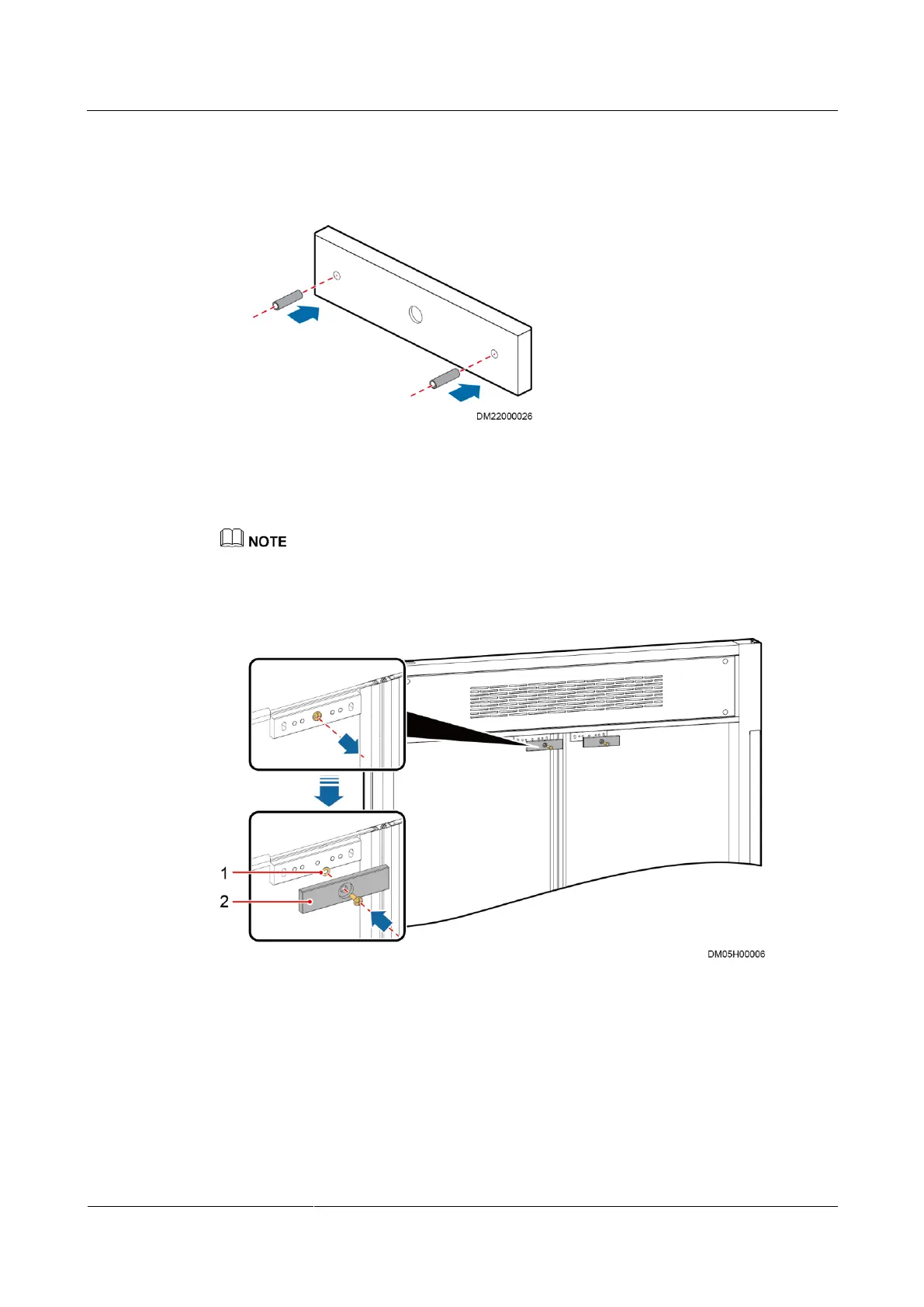

Figure 15-42 Installing positioning pins of the magnet
2. Insert the assembled magnet into the magnetic lock base on the revolving door, and
secure the magnet to the door using the screws on the door and the white washer
delivered with the magnet lock.
When securing the magnet to the door panel, do not over-tighten the screws so that the white rubber
washer is elastic. The washer will adjust the magnet to a correct position because of its elasticity.
Figure 15-43 Installing the magnet
(1) White rubber washer
(2) Magnet
Step 7 (Optional) Adjust the magnet.
If the magnet does not work properly after power-on, check that:
1. The magnet provides magnetic force by attaching magnetizable iron parts to it.
2. The revolving door magnetic lock is aligned with the magnet face-to-face.
