FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2. Install the holder cover using two M4x12 screw assemblies.
3. Install the holder baffle plate using one M4x12 screw assembly.

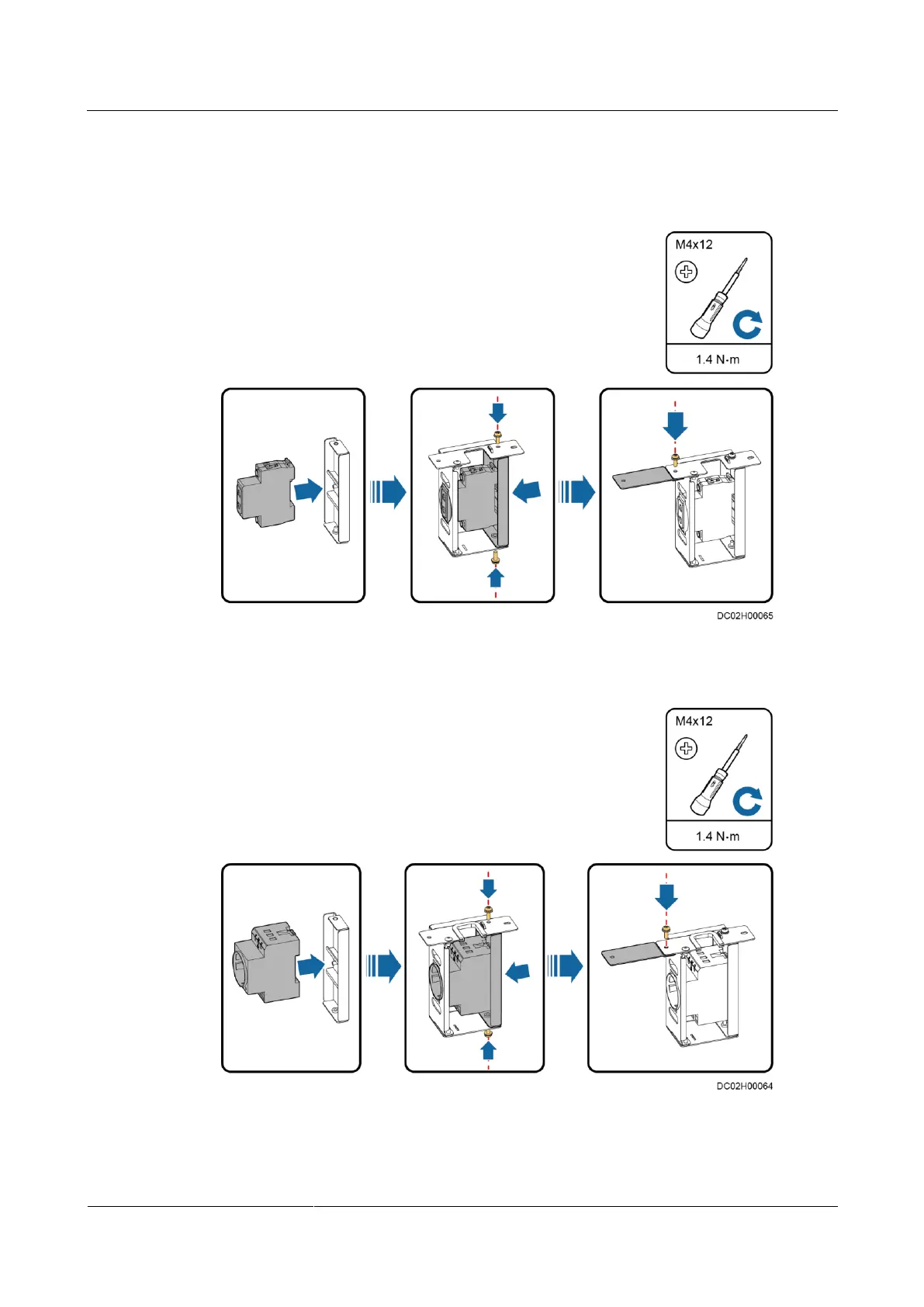

Figure 15-53 Assembling a pad power connector holder (BOM number: 14190892)
Figure 15-54 Assembling a pad power connector holder (BOM number: 14190242)
Step 2 Connect cables from the power connector to the AC actuator, and route the cables.
