FusionModule2000 Smart Modular Data Center

Installation Guide

15 Installing Monitoring Devices

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

239

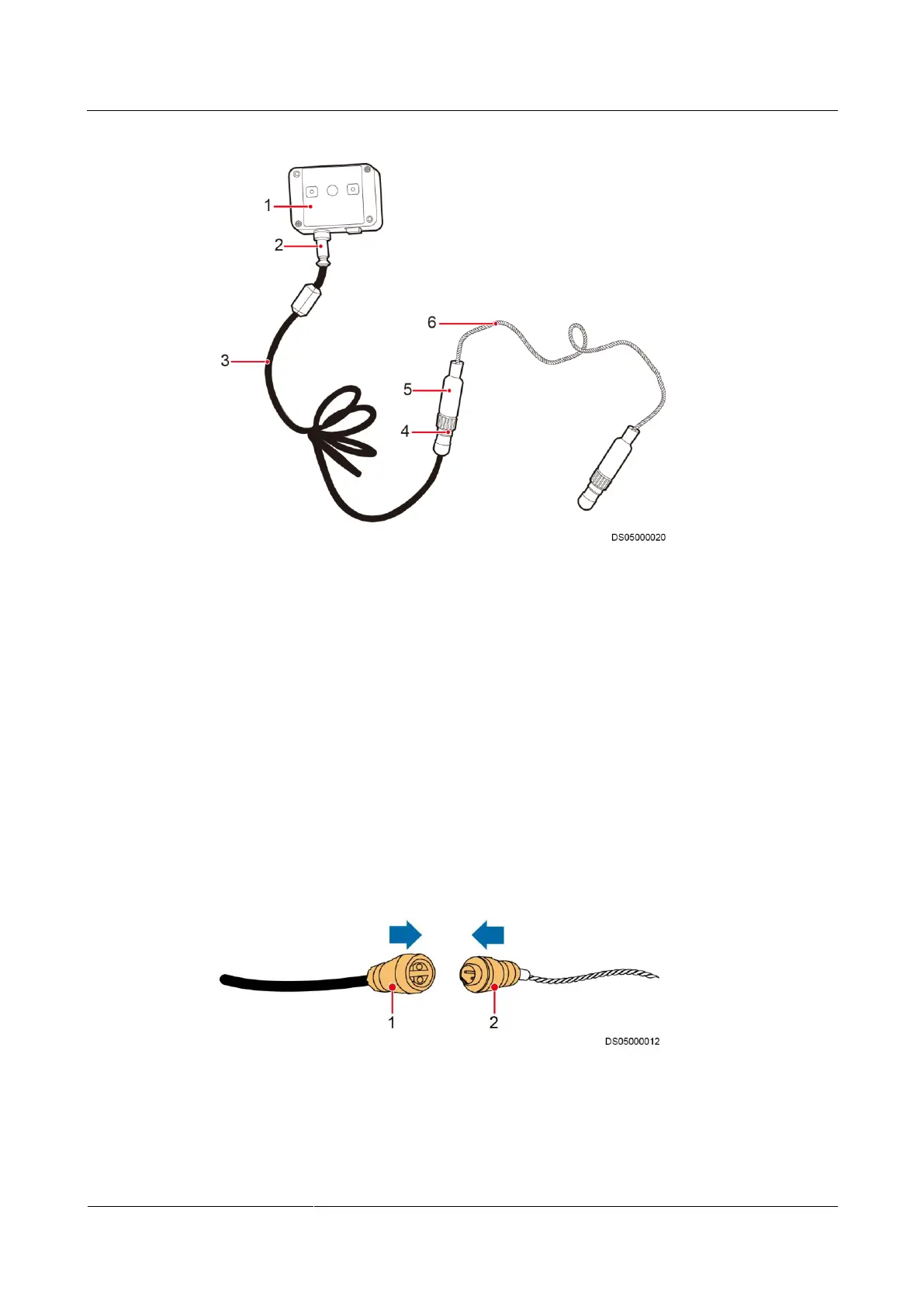

Figure 15-81 Water sensor

(1) Water detector

(2) Conversion cable end A,

connected to the water detector

(3) Conversion

cable

(4) Conversion cable end B,

connected to the water detection

cable

(5) Water detection cable end A,

connected to the conversion cable

(6) Water

detection cable

Preparations

Materials: water detection cable, conversion cable

Procedure

Step 1 Connect the water detection cable and conversion cable.

Figure 15-82 Connecting cables

(1) Conversion cable end B, connected to

the water detection cable

(2) Water detection cable end A, connected

to the conversion cable
