FusionModule2000 Smart Modular Data Center
Installation Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

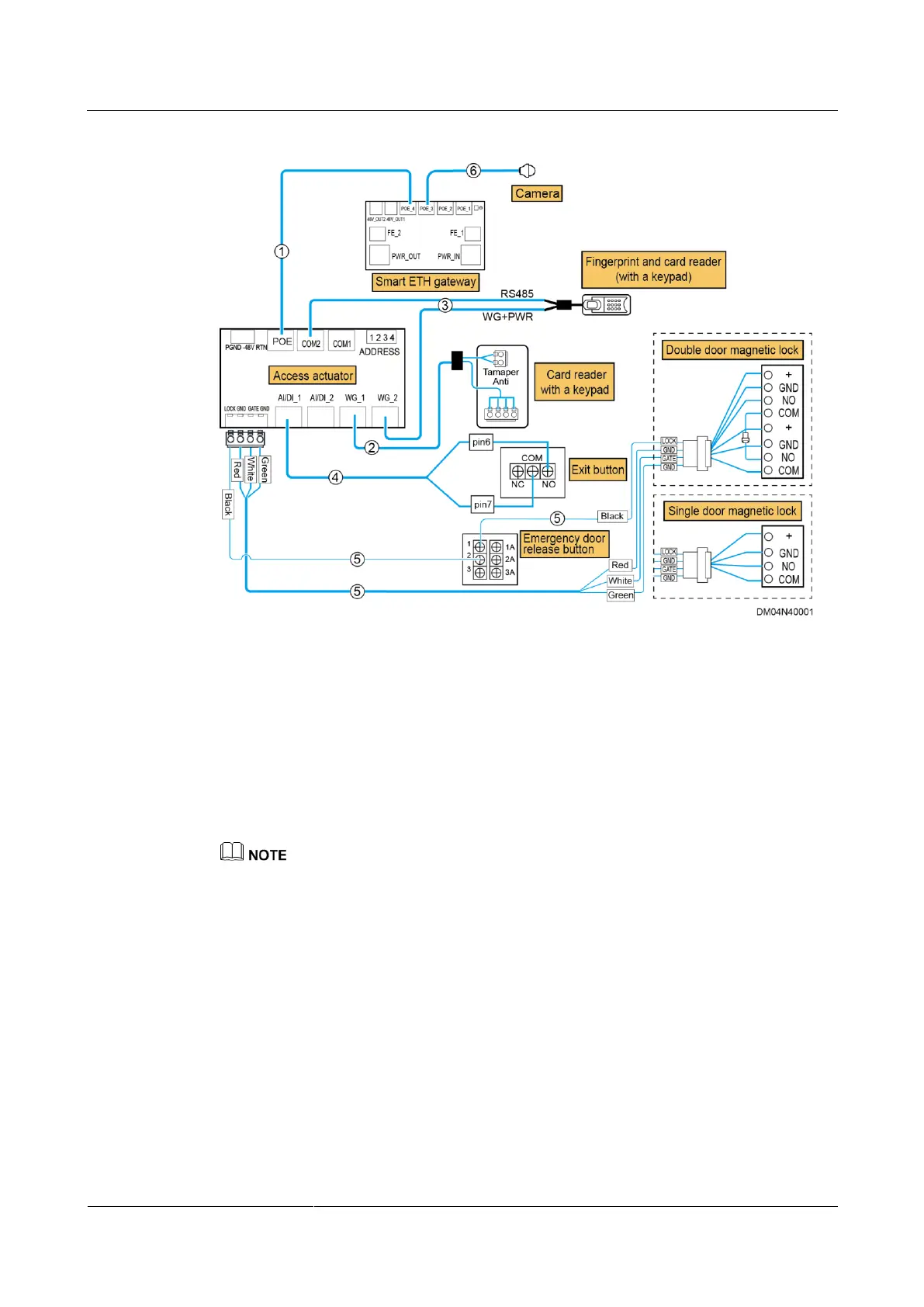

Figure 17-35 Routing cables for the access control and camera system
(1) Cable BOM number: 04093981-01
(2) Cable BOM number: 04093981-02
(3) Cable BOM number for a
fingerprint and card reader:
04093981-03; cable BOM number for
a fingerprint and card reader with a
keypad: 04093981-04
(4) Cable BOM number: 04093981-05
(5) Cable BOM number: 04093981-06
If the total number of in-aisle and in-room cameras and VCN500s in the smart module is greater than
four, communications cables of in-aisle and in-room cameras and VCN500s must be connected to a
LAN switch.
