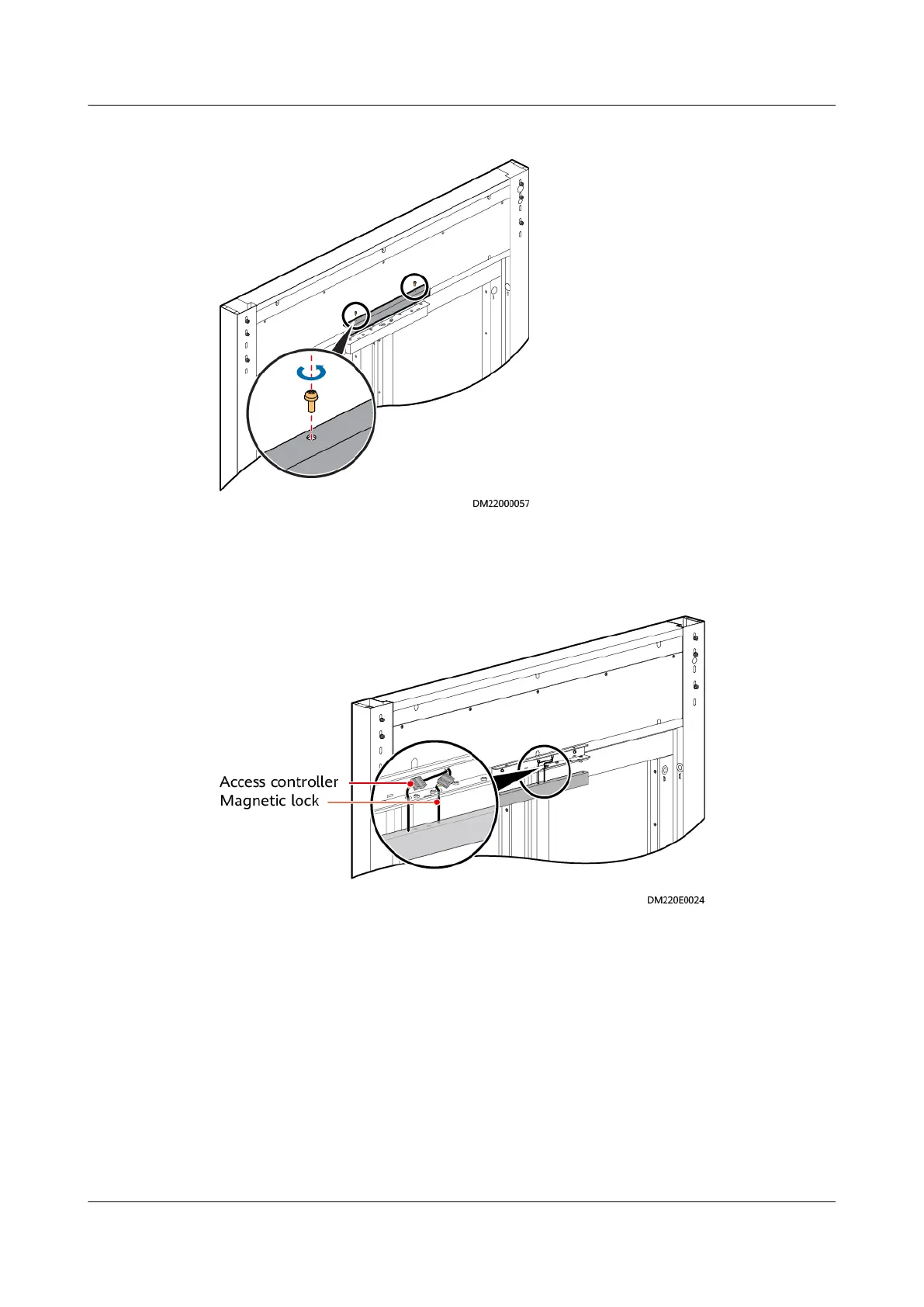

Figure 7-27 Removing a cover
Step 2 Remove magnetic lock cables from the terminals and route the cables out of the
cable holes, as shown in Figure 7-28.
Figure 7-28 Removing cables
Step 3 Remove the base and the magnetic lock, as shown in Figure 7-29.
