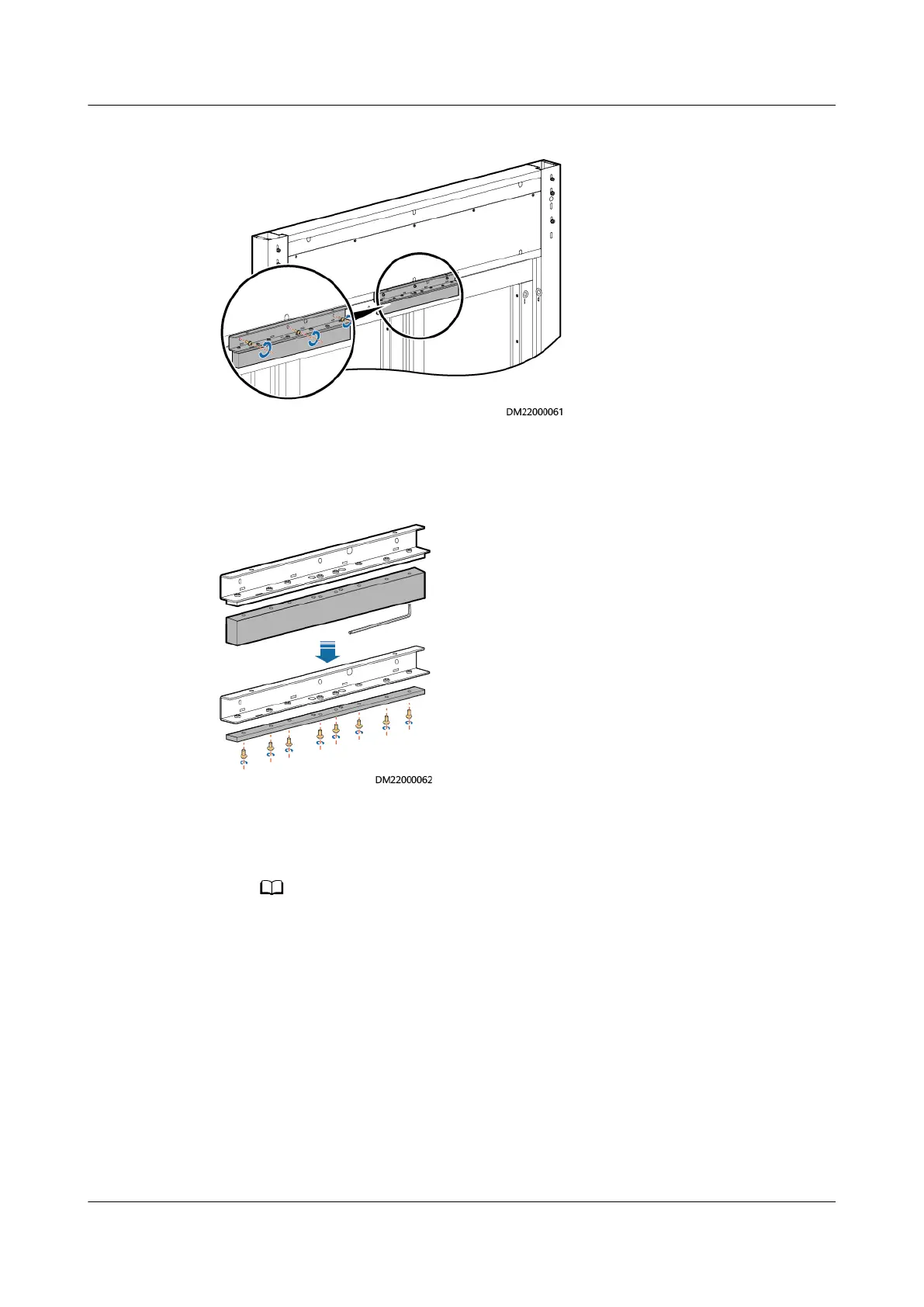

Figure 7-29 Removing the base
Step 4 Separate the base from the magnetic lock using a hex key, as shown in Figure
7-30. Unpack and take out a new magnetic lock.
Figure 7-30 Separating a magnetic lock
Step 5 Install the new magnetic lock.
1. Remove the
xing plate from the magnetic lock using the delivered hex key
as shown in Figure 7-31.
The four hex socket screws should be removed in this step.
