Context
● Check that the room door is a single-door that can be rotated open outwards.
The door frame should be over 42 mm thick. A glass door is not supported.
● The cable routes are planned.
Procedure
Step 1 Fold the delivered cutout template along the dotted line by 90 degrees, as shown
by (2) in Figure 3-67.
Step 2 Close the door, place the cutout template near the top of the door frame in the
door opening direction, mark the mounting holes, and drill holes, as shown in
Figure 3-67.

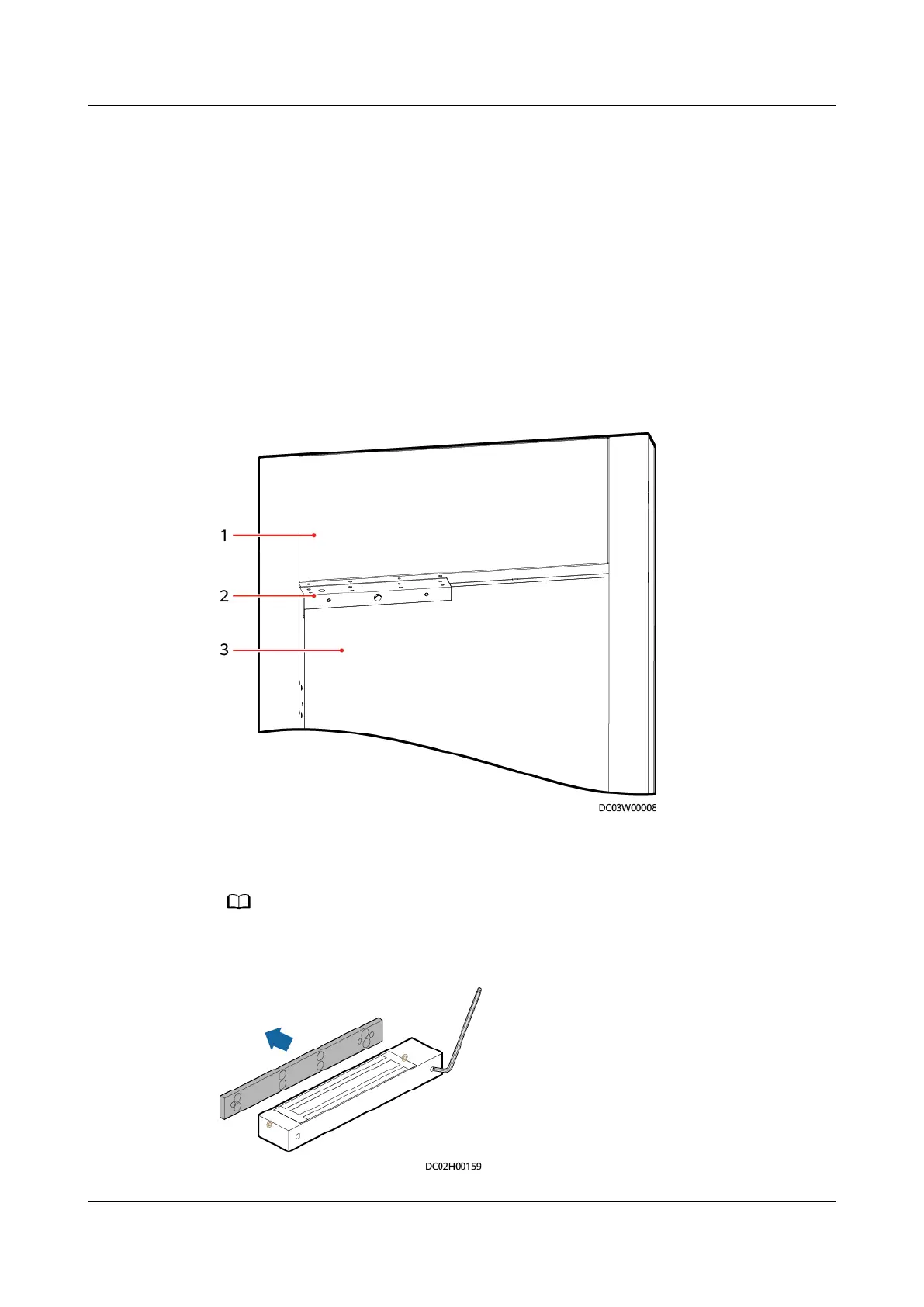

Figure 3-67 Mark the installation position
(1) Door frame
(2) Cutout template (3) Door panel
Step 3 Remove the hoisting strip using the delivered hex key.
Two hex socket screws need to be removed in this step.
Figure 3-68 Removing a hoisting strip
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 3 Installing Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 58
