Multi Group View Screen 29
User Guide v 2.3 — September 2015 Altanium Operator Interface

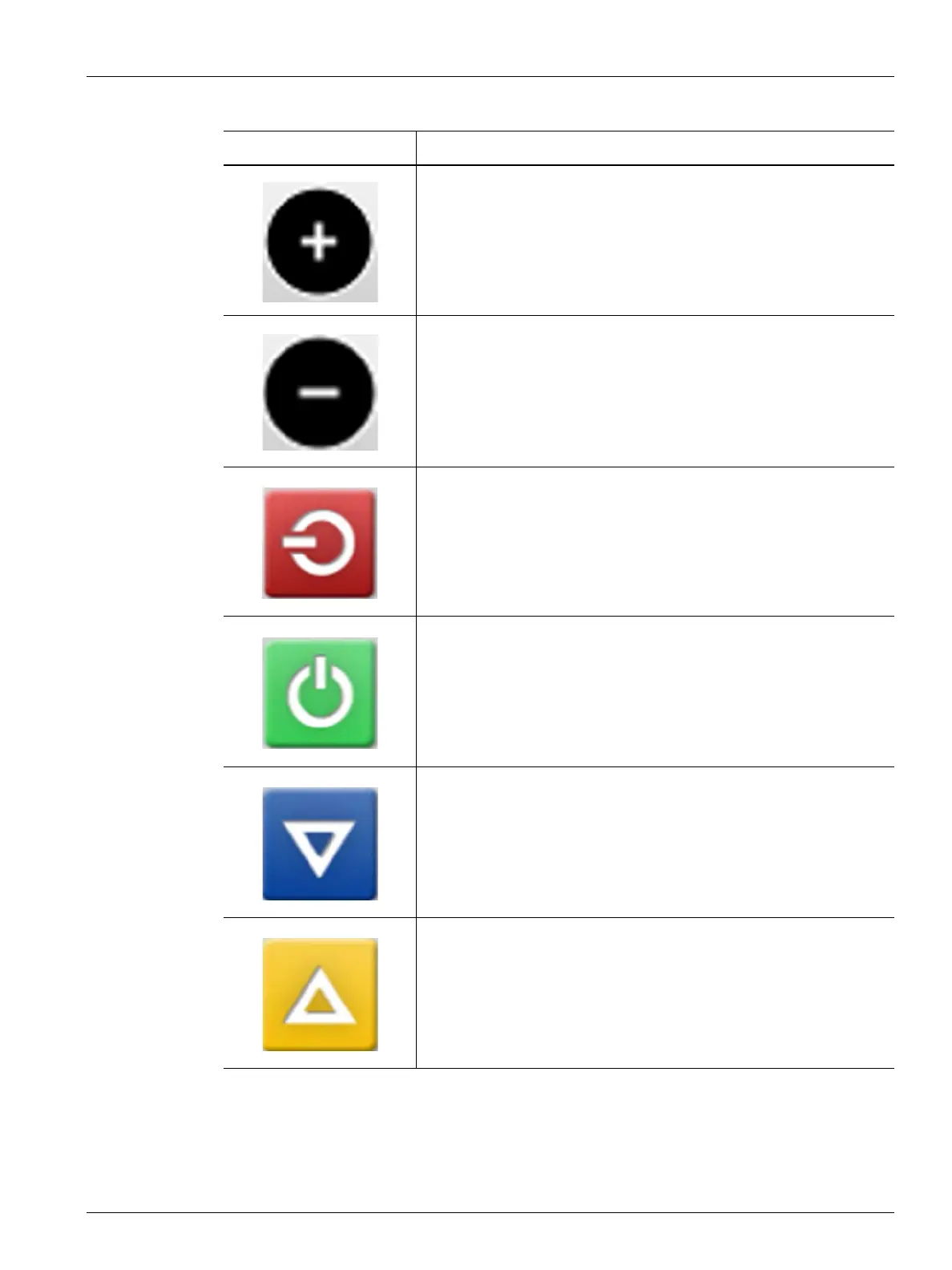

Expands the related group information list.
If this button is green, the actual temperature for all zones is within the
lower alarm limit.
If this button is black, the actual temperature for all zones is not within
the lower alarm limit.
Collapses the related group information list.
If this button is green, the actual temperature for all zones is within the
lower alarm limit.
If this button is black, the actual temperature for all zones is not within
the lower alarm limit.
Turns off the zones in that group if they are on.
Turns on the zones in that group if they are off.
Sets the zones in this group to manual standby. Multiple groups can
be placed in standby at once. This button will be inactive if any groups
are in boost mode.
Sets the zones in this group to manual boost. Multiple groups can be
placed in boost at once. This button will be inactive if any groups are
in standby mode.
Table 4-5 Buttons (Continued)
Button Description
