Intel® Server System S7000FC4UR TPS System Chassis and Sub-Assemblies
Revision 1.0
81
9.3 Main Board Subsystem
The main board mounts to a sheet metal tray with four metal brackets from the Component
Enabling Kit (CEK) and four loose screws. The main board assembly is mounted in the chassis
via slot and tab hooks and secured by a single captive plunger.

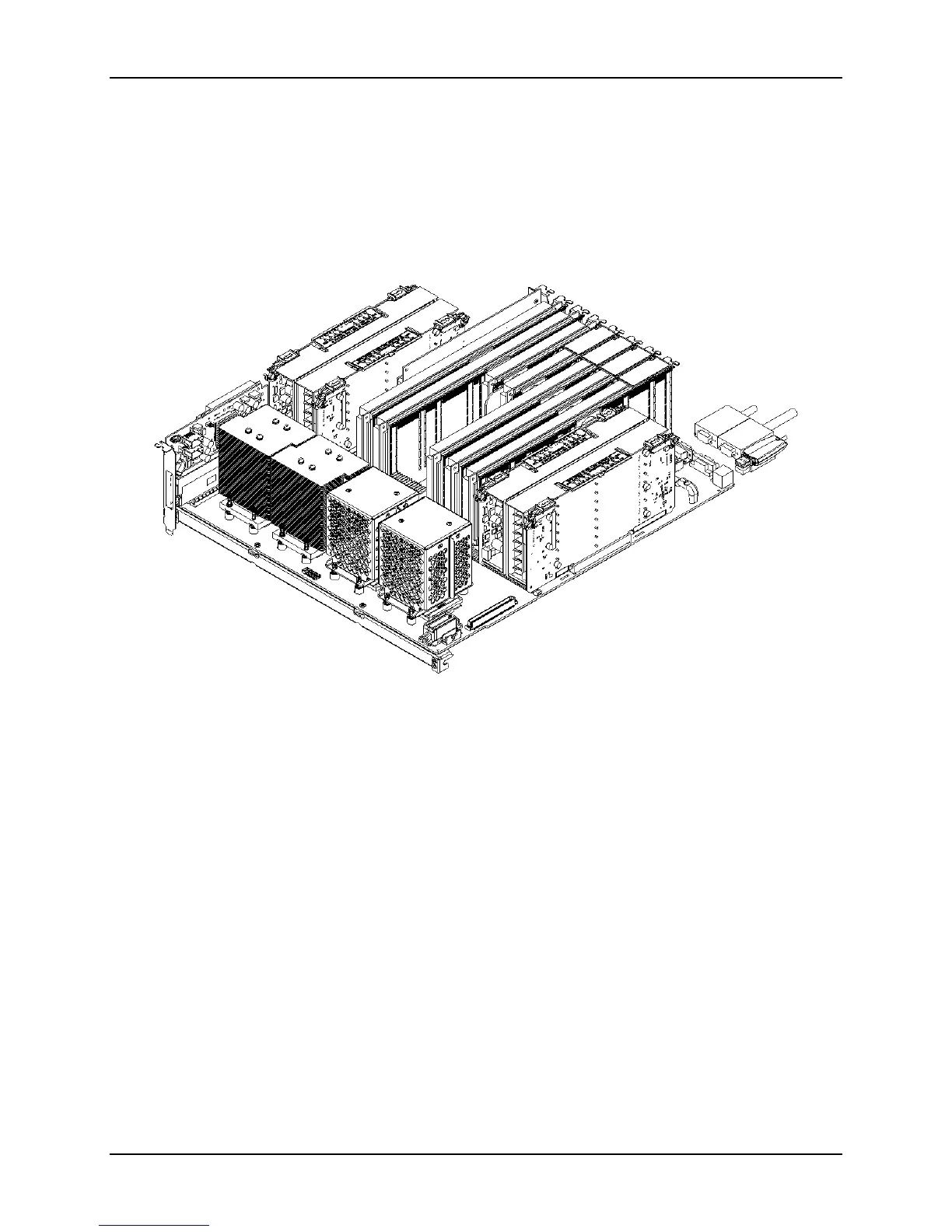

Figure 27. Main Board and Sheetmetal Tray
9.4 Peripheral Bay Subsystem
The peripheral bay is a sheet metal enclosure with features to mount the hard drives, half height
5.25-inch tape drive, and optical drive. The SAS backplane is installed by sliding the slots on the
board onto hooks on the peripheral bay. One integral latch is used to secure the SAS backplane
into the bay.
