Intel S7000FC4UR Technical Product Specification

System Chassis and Sub-Assemblies Intel® Server System S7000FC4UR
Revision 1.0
82
9.4.1 Hard Drive Carrier
The hard drive carrier is an assembly that provides guidance for hot swapping. It contains two
integrated light pipes to transfer the LED indicator light from the SAS backplane to the front, and
an insertion/extraction mechanism that includes a hard drive bezel.

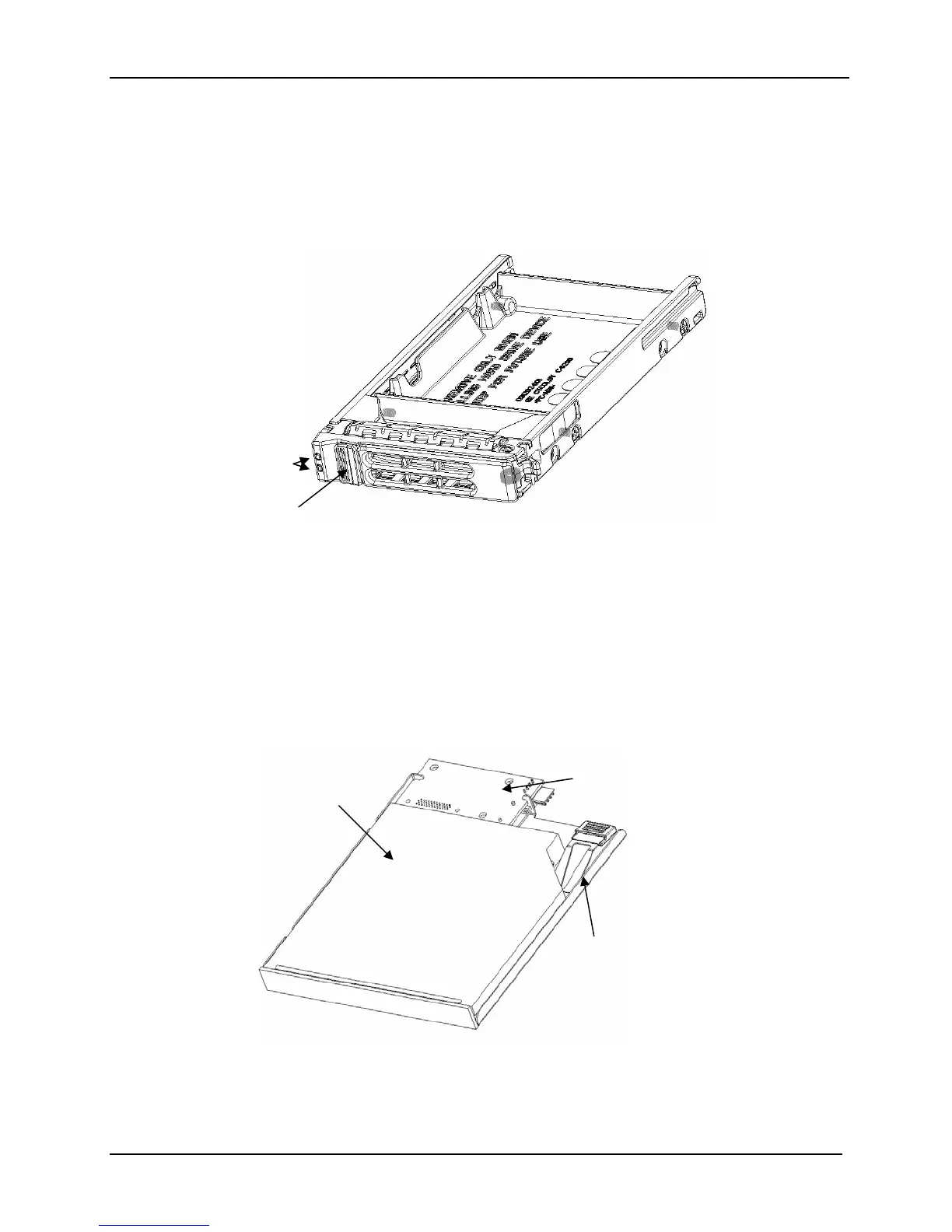

Figure 28. Hard Drive Carrier
9.4.2 Optical Drive Carrier
The optical drive is installed in a sheet metal tray and then installed in the chassis. The SATA-
to-PATA converter board is then plugged in.
Figure 29. Optical Drive Carrier with Converter Board
DVD/CD
Device
SATA to PATA
Converter
Board
DVD/CD
Carrier
Latch
LEDs
