Intel S7000FC4UR Technical Product Specification

Intel® Server System S7000FC4UR TPS Memory Riser
Revision 1.0
51

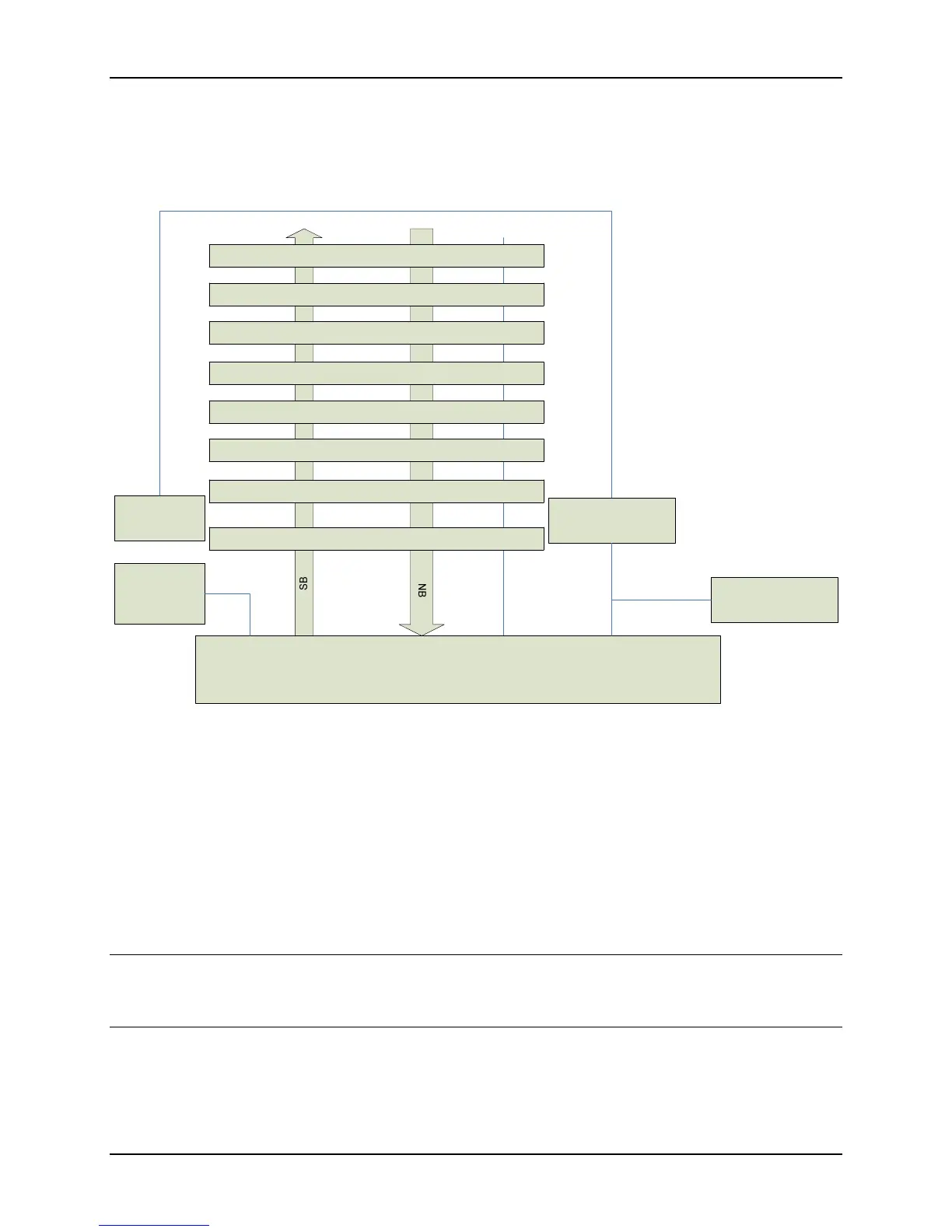

4.1.2 Memory Riser Functional Diagram
Mem Riser Conn
FRU
SPD BMBus
DIMM 1
DIMM 2
DIMM 3
DIMM 4
DIMM 5
DIMM 6
DIMM 7
DIMM 8
Board Temp Sensor
Board Remote
Temp Sensor
BMC SMBus
LEDs
Serial
GPIOs
Board Temp Sensor
& Remote Temp
Sensor (Backup)
DIMM AMB Temp
Sensor (POR)
Figure 13. Memory Riser Functional Diagram
4.1.3 Supported Memory
The memory riser supports FBD Generation 1 DIMMs. FBD Generation 1 represents FBD-
DDR2-533 and FBD-DDR2-667 memory speeds. The maximum memory capacity supported per
memory riser is 64GB, using eight sticks of 8-GB FBDIMMs (2-Gbit x4, stacked DRAM
technology devices). The maximum memory capacity using four fully-loaded memory risers is
256 GB.
Notes:
1. 512Mb is the lowest technology point available from FBDIMM suppliers.
2. 2-Gb technology may not be available at the time of launch.
