Intel S7000FC4UR Technical Product Specification

System Overview Intel® Server System S7000FC4UR
Revision 1.0
68
8. System Overview
The Intel
®
Server System S7000FC4UR is a 4U, high-density, rack-mount server system with
support for one to four processors and up to 256GB FBDIMM memory.
Figure 18 and Figure 19 show the front and rear views of the system.

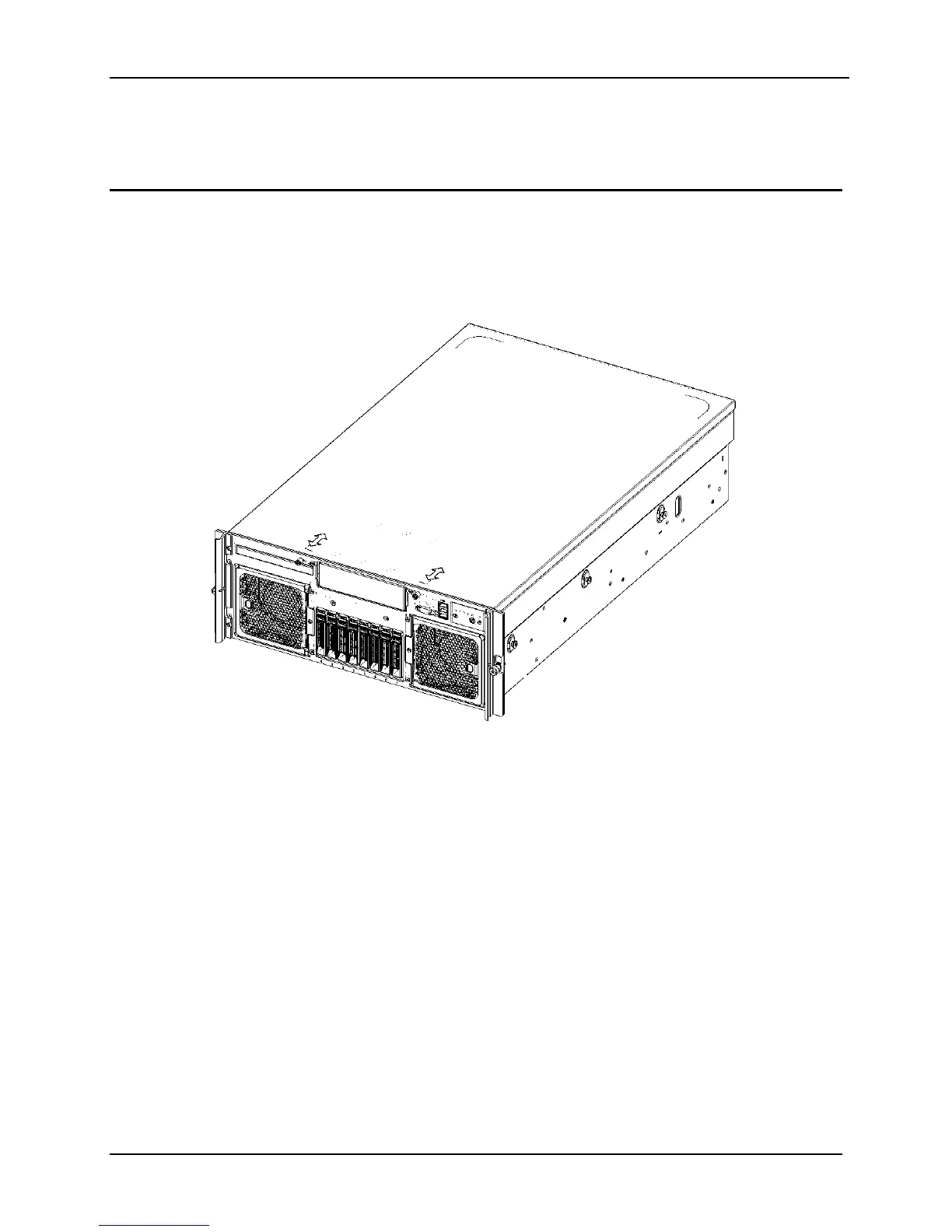

Figure 18. Intel
®
Server System S7000FC4UR (Front View)
The Intel
®
Server System S7000FC4UR is based on the Intel
®
Board Set S7000FC4UR and the
Intel
®
7300 Chipset. The main board attaches to a sheet metal tray for structural support. The
tray and board assembly is installed along the bottom of the chassis. The memory boards plug
vertically to the main board and contain eight FBDIMM slots each. With all four memory boards
installed, the system supports up to 256GB of memory (using 8GB DIMMs).
