The hard drive bay located at the front of system holds eight 2.5-inch SAS hard disk drives. The
SAS hard drives plug into a horizontal SAS backplane at the rear of hard drive bay. One slim-
line (½-inch) optical drive bay and a half-height 5.25-inch tape backup bay are also located at
the front of the system.
The cooling subsystem utilizes eight hot-swap system fans. All 8 fans are required for operation
in a redundant cooling configuration. In a non-redundant cooling configuration 2 of the rear fans
are removed. Each system fan contains a status LED, illuminating in the event of a fan failure.
The fans are accessible from the front and the inside of the system.
The front panel provides a user interface for system monitoring and management via buttons
and status LEDs. The optional front bezel has snap-on features for ease of installation. It can be
customized to meet Original Equipment Manufacturer (OEM) industrial design requirements.
The bezel design allows adequate airflow to cool system components

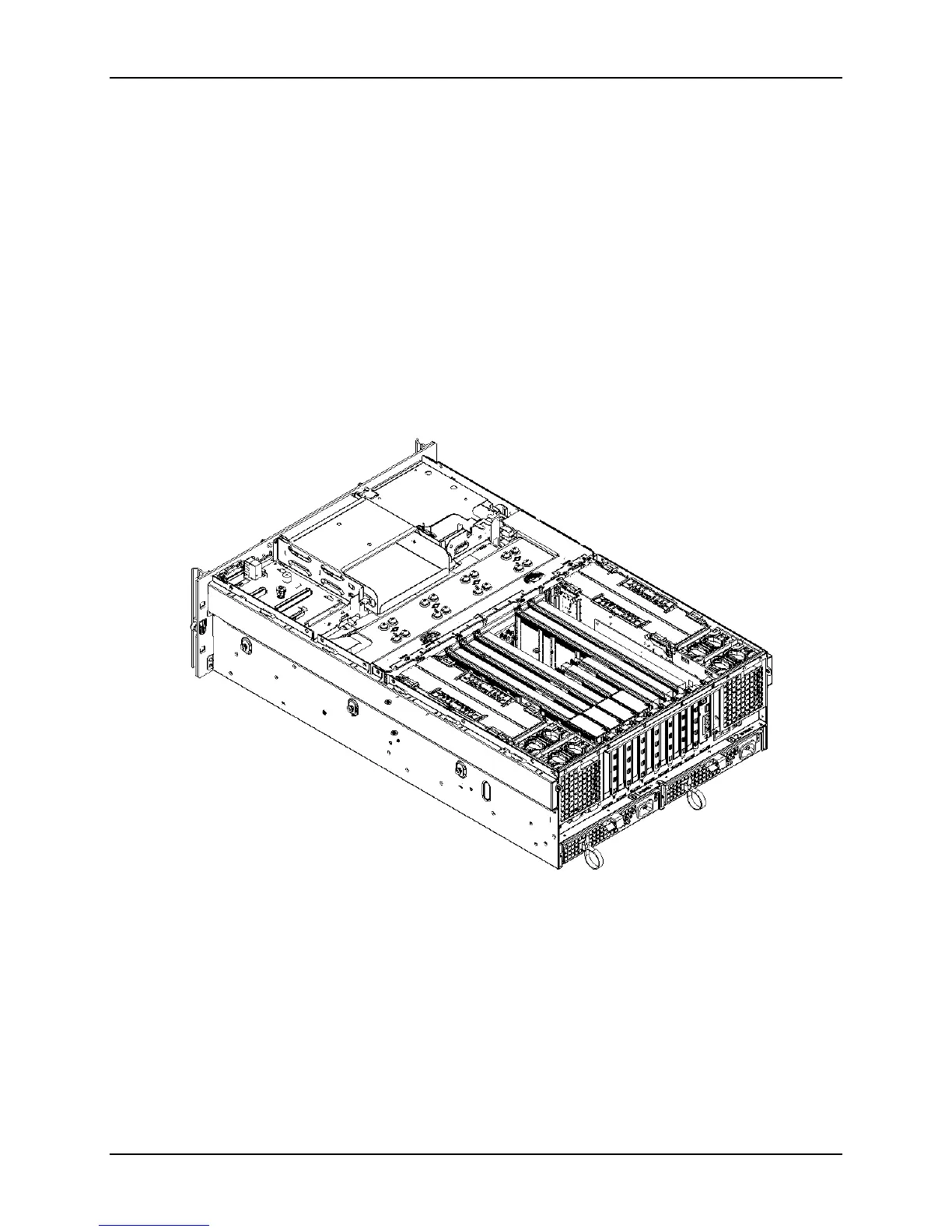

Figure 19. Intel
®
Server System S7000FC4UR (rear view with top cover removed)
The power supply modules are located at the rear of system under the main board. The
modules plug directly into connectors on the power distribution board. The system supports up
to two hot-swap power supply modules in a 1+1 redundant configuration.
Upon removal of the top cover, the user has access to the memory boards, memory fans and
PCI-Express* adapters.
