System Overview Intel® Server System S7000FC4UR
Revision 1.0
70
8.1 External Chassis Features – Front
Figure 20 shows the front view of the system with the front bezel removed. The front provides
access to the following components:
Front panel buttons and LEDs (with optional LCD)
User accessible video and USB connectors
Hard drive, optical drive, and tape backup drive
Hot-swap fans

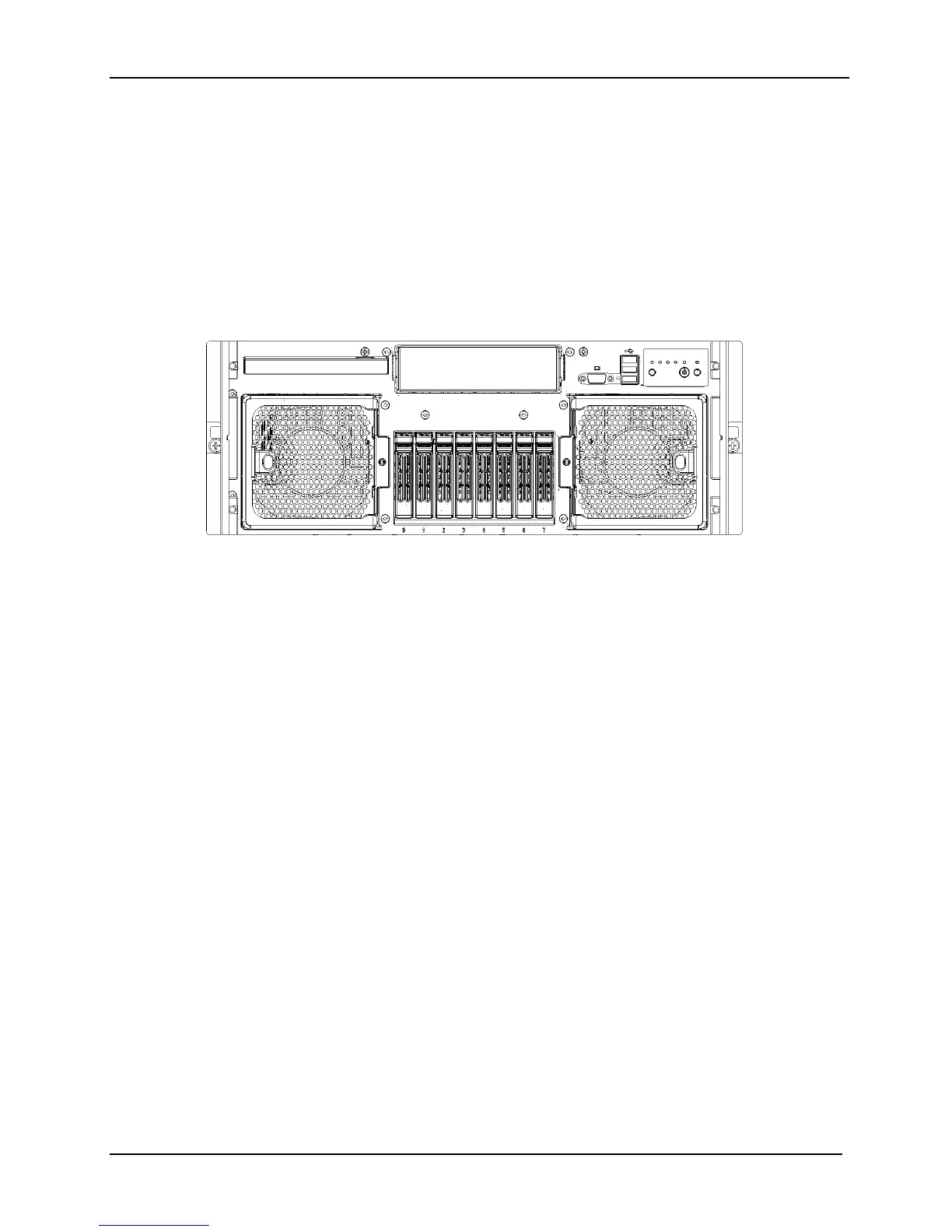

Figure 20. Front View (without bezel)
8.1.1 Front Panel
The front panel contains the following:
System control buttons and LED status indicators
One video connector
Three USB 2.0 ports
One system speaker
The front bezel must be removed to access the front panel switches and connectors. All LEDs
are visible with the front bezel installed. Refer to Section 12 for a detailed description of the front
panel boards.
