131
7 Configuration
Activation/type, limit value, switching differential
Alarm/Event list
All events and their time of occurrence are added to the event list. If the event is an alarm, newly occur-
ring alarms and their time of occurrence are additionally added to the alarm list. If an alarm is made in-
active, it is removed from the alarm list and the time of removal is added to the event list.
Alarm suppression, alarm delay
Alarm delay and alarm suppression delay or prevent entries being added to the event list and alarm list,
activation of the collective alarm, and display in the status bar.
Alarm delay
During an out-of-limit case, the status signal is only activated after the delay time has expired. If the limit
value infringement no longer exists at that point, the time for the next limit value infringement restarts
from zero.
Switching differ-
ential
0 to 99999 The switching differential is used to sup-
press constant switching of the status
signal in the event of fluctuations of the
input signal around the limit value.
Alarm suppres-
sion
Digital selector
No selection
The selected digital signal (high-active)
prevents the status signal being activat-
ed.

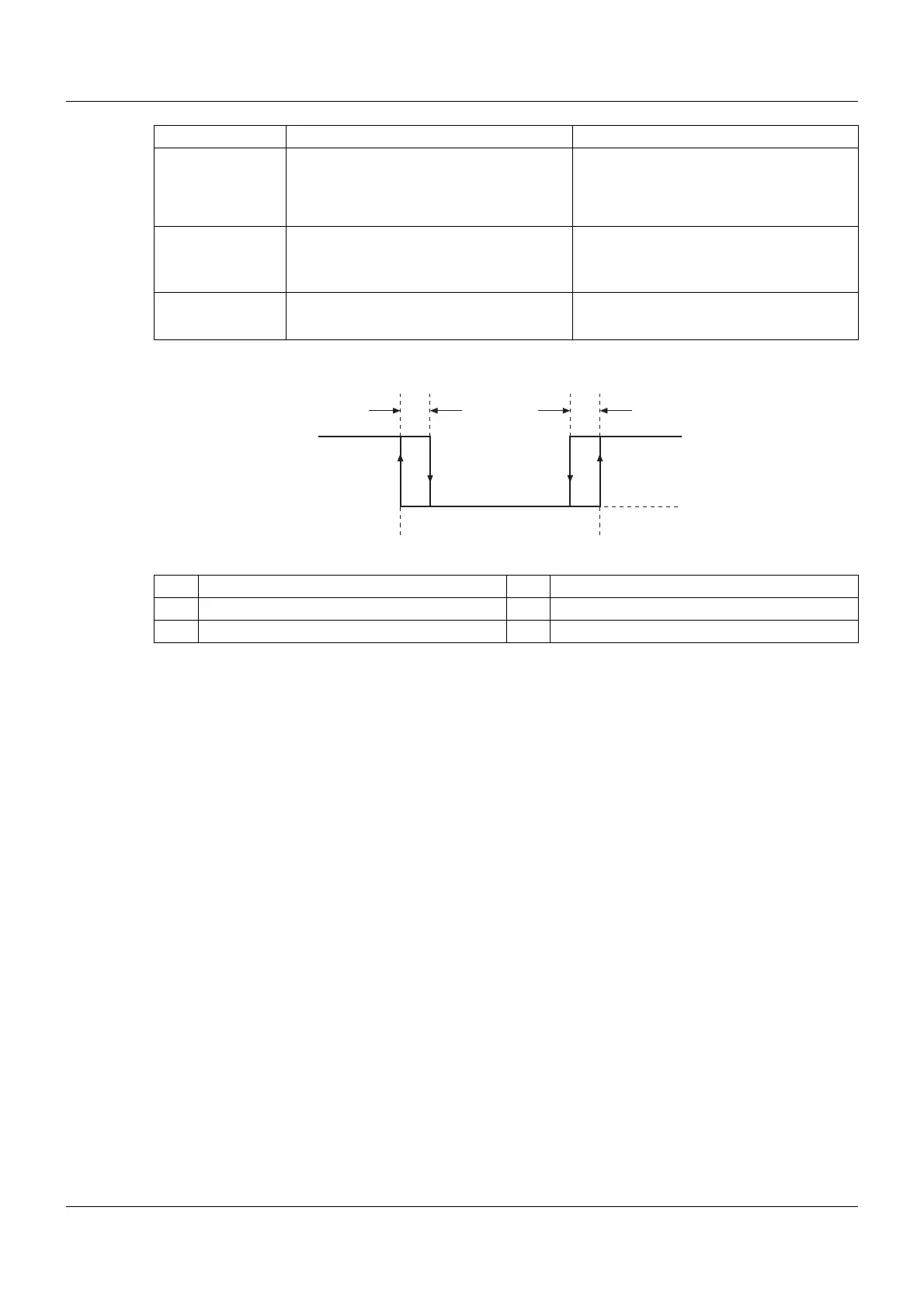

Alarm delay 0 s to 32767 s Delay time for status signal activation
Parameter Selection/settings Description
(1) Limit value for min. alarm 1 Status signal on
(2) Limit value for max. alarm 0 Status signal off
(3) Switching differential
