5 Operation
Detailed view
5.4.10 Comment text
This function can be used to enter a text (max. 160 characters) that is entered in the event list after com-
pleting the entry.
chapter 5.5 "Text input dialog", Page 62
The comment text is assigned either only to the group in question or to all groups. The assignment de-
pends on the visualization that the device is in when the function is called up.
In the case of the following visualizations, the comment text is assigned to all groups: current batch, com-
pleted batch, process screen, counter/integrator
In the case of the following visualizations, the comment text is only assigned to the group in question:
curve diagram, digital diagram, bar graph, text image, report
The assignment to a certain group applies when only the event list of a certain group is displayed (mem-
ory view, curve presentation of the completed batch). In addition, the PCA3000 PC evaluation software
can filter the events according to groups.
Comment with authentication
Depending on the "Comment with authentication" parameter, the user ID and password are required to
enter a comment text (see operating manual, chapter "Configuration - only in the setup program" > "User
list" > "Password rules").

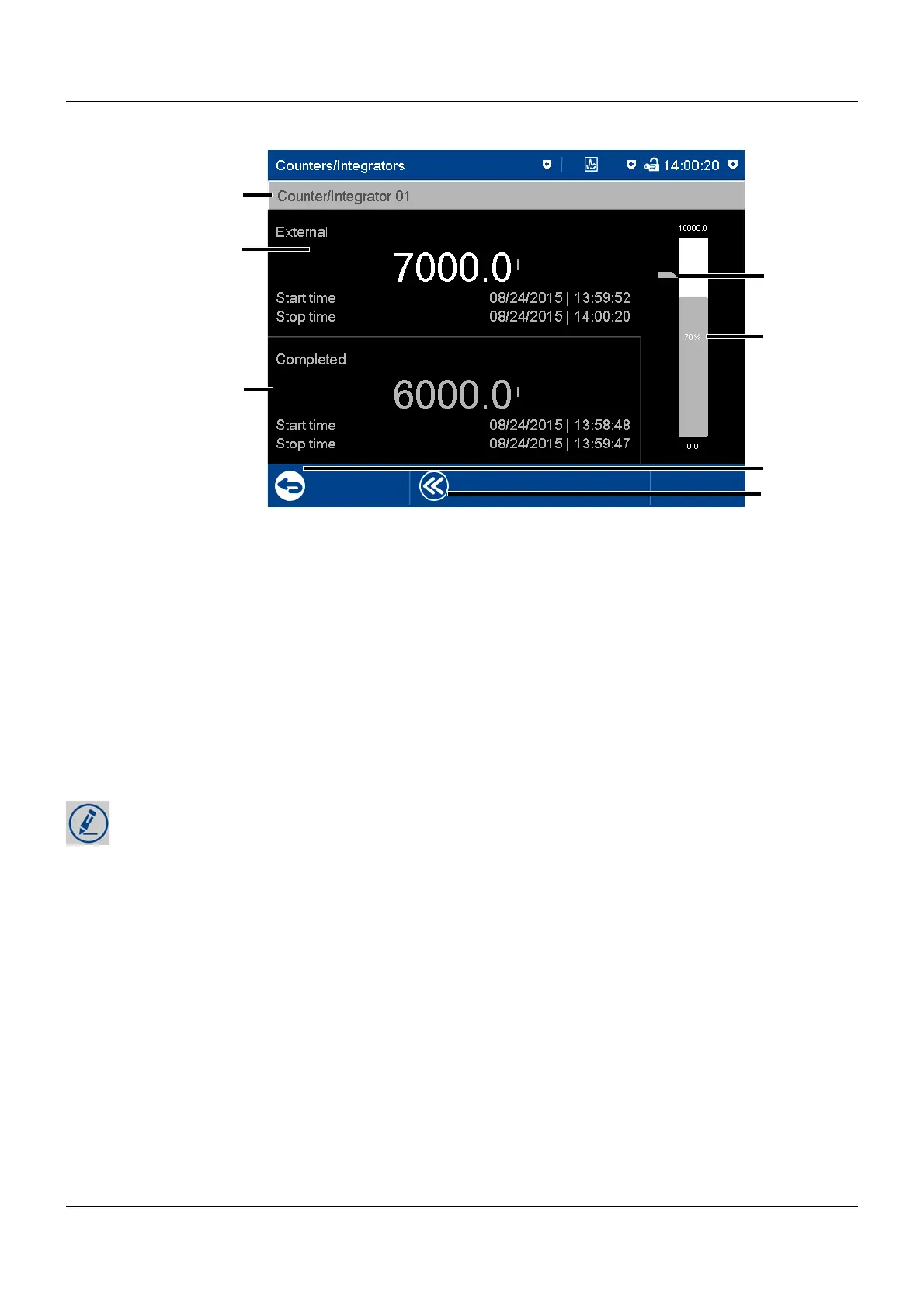

(1) Designation (configurable) of the count-
er/integrator
(4) Limit value for max. alarm (configurable)
(2) Specifications on current counter/inte-
grator
The type (configurable; here: external)
decides when the status is stored and
the counter/integrator thus completed.
(5) Bar graph view of the current counter/in-
tegrator
Start and end of the display range are
configurable.
(3) Specifications on the completed counter/
integrator
(6) Back to view of all activated counters/in-
tegrators
(7) Display of the last 7 completed counter/
integrator statuses
(2)
(5)
(3)
(7)
(1)
(4)
(6)
