7.6 Analog outputs
The analog outputs (optional extra) can each be configured as current or voltage outputs (current signal,
voltage signal) and are freely scalable.

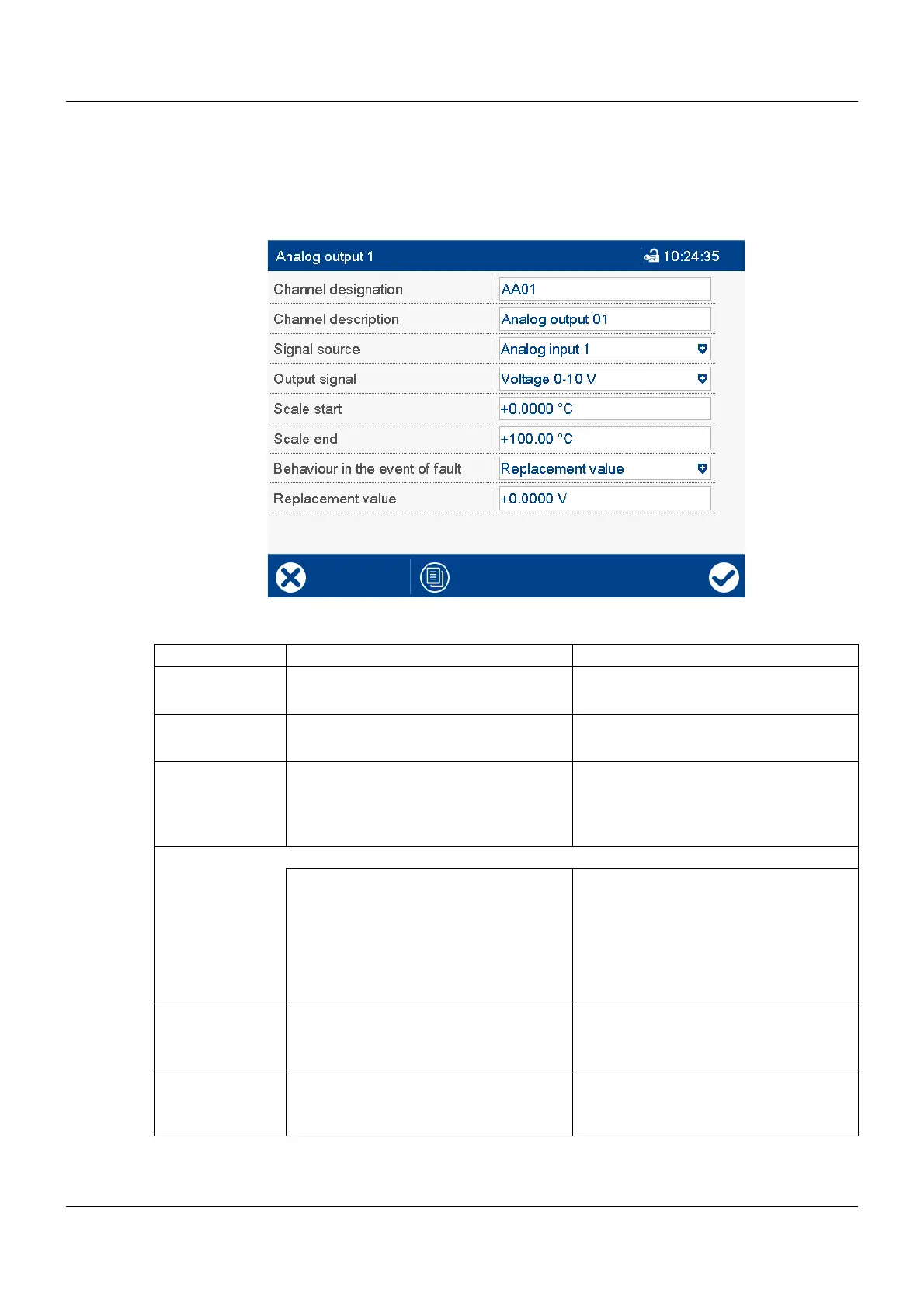

Device dialog box
Parameter
Parameter Selection/settings Description
Channel designa-
tion
AO ...
Use default text or enter other text.
Name (abbreviation) with max. 5 charac-
ters that is used in the visualizations.
Channel descrip-
tion
Analog output ...
Use default text or enter other text.
Description (designation) with max. 21
characters
Signal source Analog selector
No selection
Analog signal that is issued via the ana-
log output.
In the event of "No selection" a voltage of
0 V is output.
Output signal Physical output signal
Voltage 0 to 10 V Voltage signal
Current 0 to 20 mA Current signal
Current 4 to 20 mA Current signal
Voltage 10 to 0 V Voltage signal, inverse
Current 20 to 0 mA Current signal, inverse
Current 20 to 4 mA Current signal, inverse
Scaling
start
-99999 to 0 to +99999 Start value of value range
Scale
end
-99999 to 100 to +99999 End value of value range
