9 Configuration – in setup program only
9.12 Process screens
Process screens are used for visualizing process data. The setup program can be used to create indi-
vidual process screens that are transferred to the device and are available there in the "View" menu.
The size of a process screen (background) is 640 pixels (width) by 379 pixels (height).
9.12.1 Process screen editor

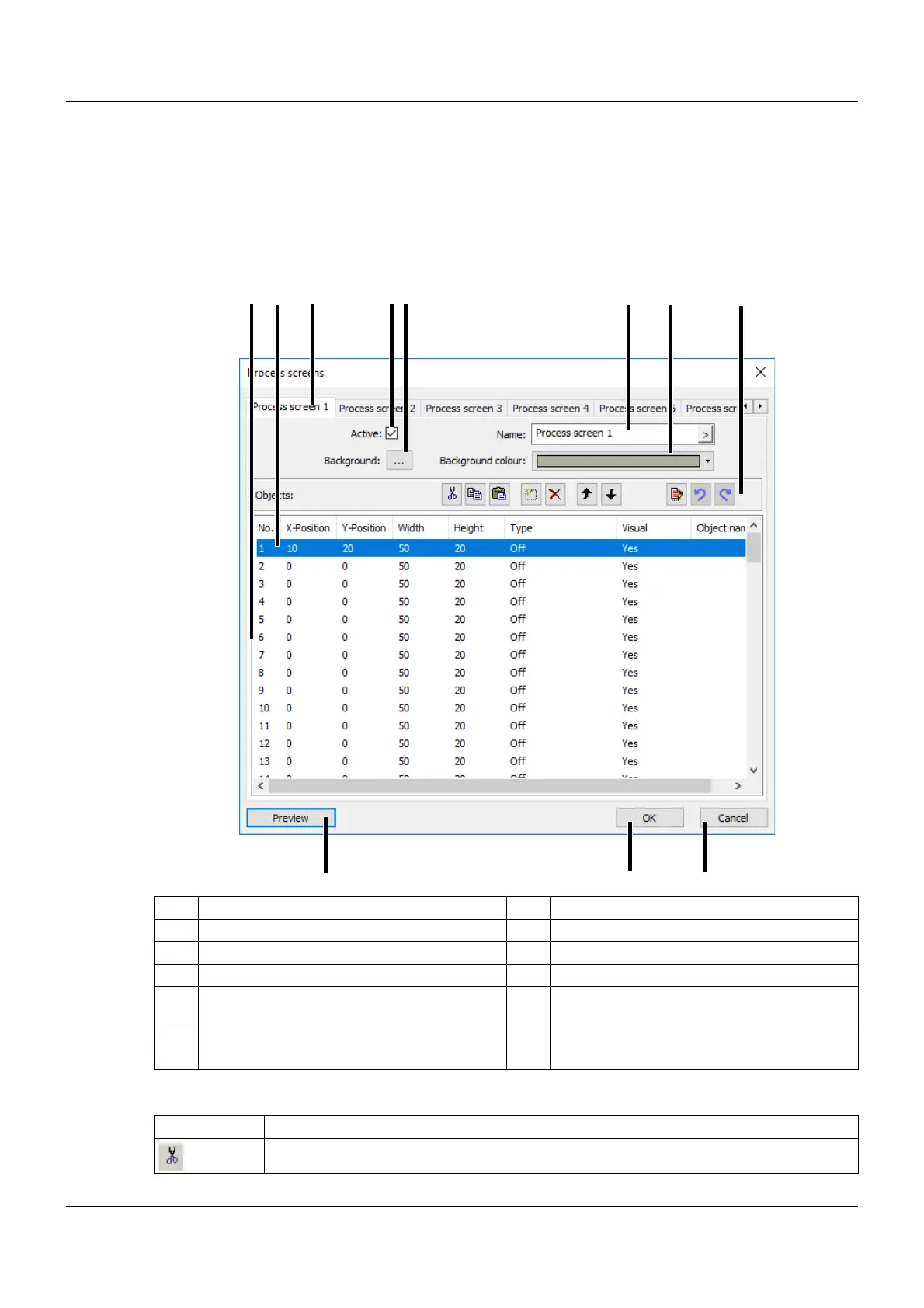

Setup dialog box
Navigation and processing functions
(1) Object list (2) Object used
(3) Selected process screen (4) Activate process screen
(5) Select background image (6) Name of the process screen
(7) Select background color (8) Navigation and processing functions
(9) Exit process screen editor; settings are not
adopted
(10) Exit process screen editor; settings are ad-
opted
(11) Preview of the process screen (preview
screen is opened in the setup program)
(1) (2)
(3)
(4)
(5) (6) (7)
(8)
(9)
(10)
(11)
Button Function
Cut object from the object list
