JUMO LOGOSCREEN 601 - Setup File; Views and Functions

87
6 Setup program
6.4 Setup file
The setup file contains full details of the device's hardware and software, as well as its configuration.
The function File > New or File > Open creates a new setup file, or opens an existing file.
6.4.1 Views and functions

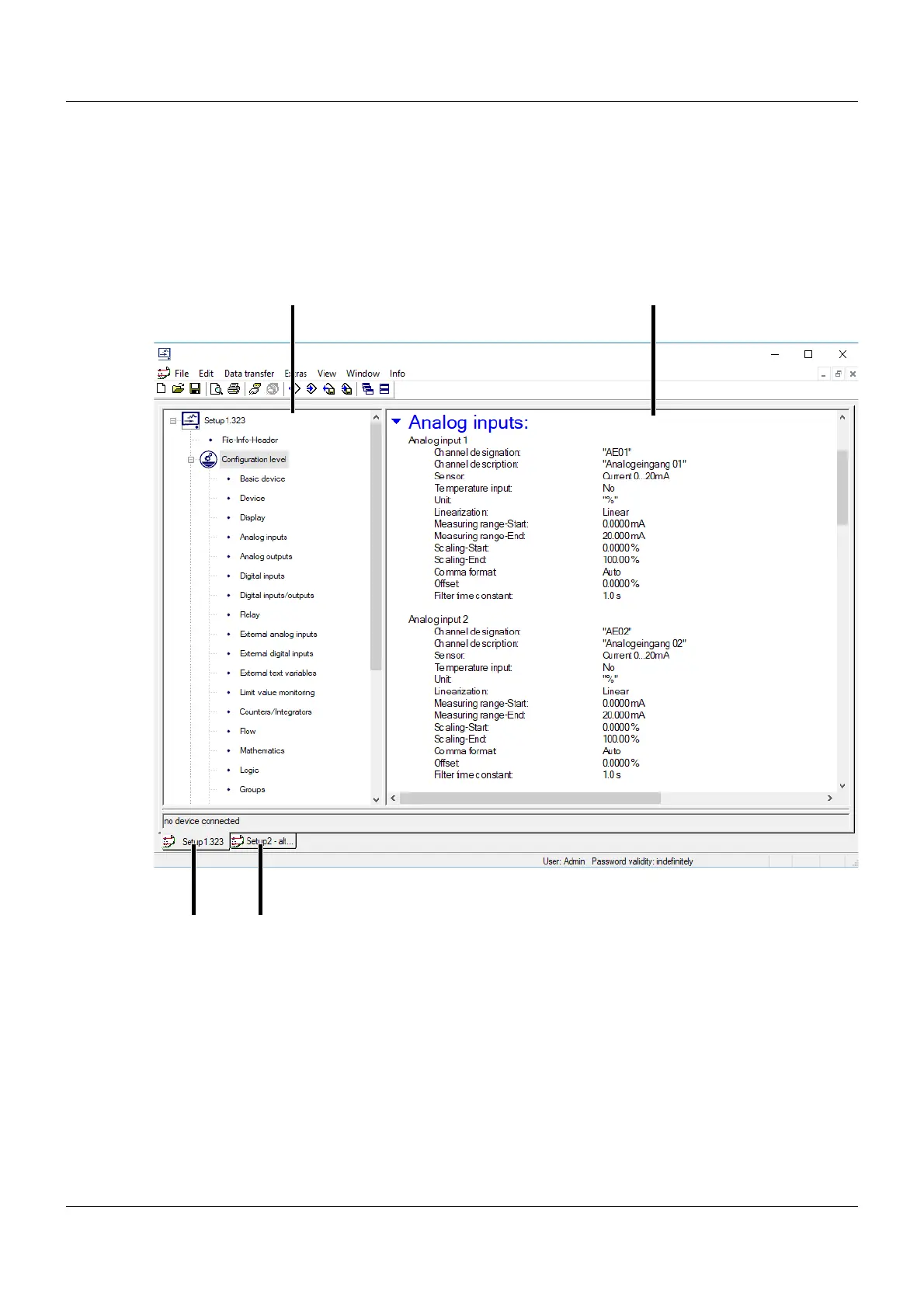

(1) Navigation tree
Shows the areas and the sub-items
(2) Display window
Shows the sub-items and their settings
(3) Active setup window (4) Inactive setup window
