169
7 Configuration
Examples:
First text = 1; text selection bits: 00000 (= 0); text number = 1 + 0 = 1
First text = 1; text selection bits: 11111 (= 31); text number = 1 + 31 = 32
First text = 97; text selection bits: 11111 (= 31); text number = 97 + 31 = 128

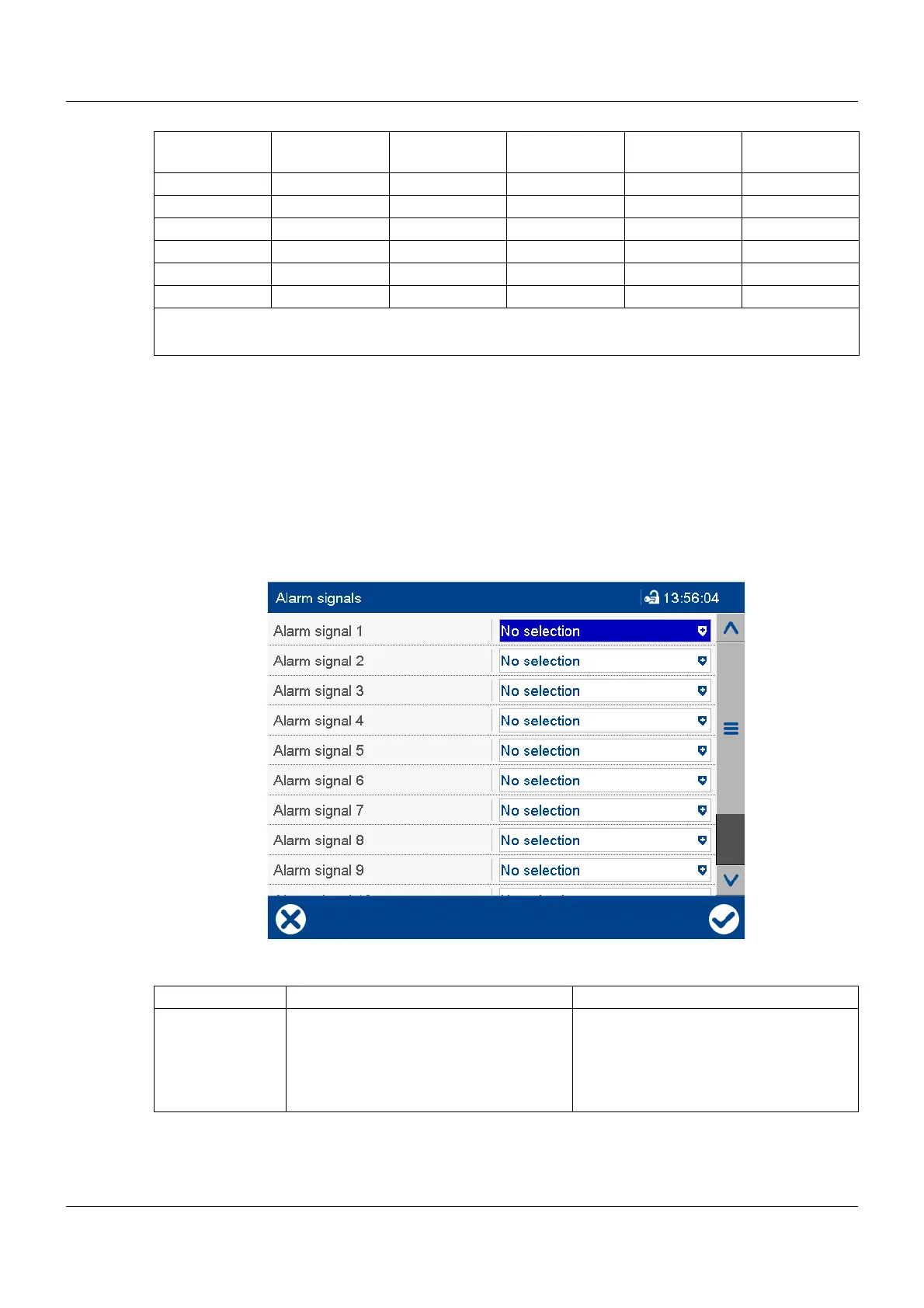

7.18.10 Alarm signals
Up to 12 alarm signals can be assigned to each group. These alarms then cause an entry to be made
in the event list and alarm list of the batch concerned (depending on the configuration).
Device dialog box
Parameter
Digital signal
5 (bit 4)
Digital signal
4 (bit 3)
Digital signal
3 (bit 2)
Digital signal
2 (bit 1)
Digital signal
1 (bit 0)
Decimal value
000000
000011
000102
000113
......
1111131
0 = "No selection" in the digital selector or signal is inactive.
1 = Signal selected and signal is active (high active).
Parameter Selection/settings Description
Alarm signal 1 to
alarm signal 12
Selector of all alarm signals
No selection
The selected alarm is entered in the
event list and alarm list of the batch con-
cerned.
The settings of the respective alarm
source are decisive for the entry.
