JUMO LOGOSCREEN 601 User Manual

4 Electrical connection
32

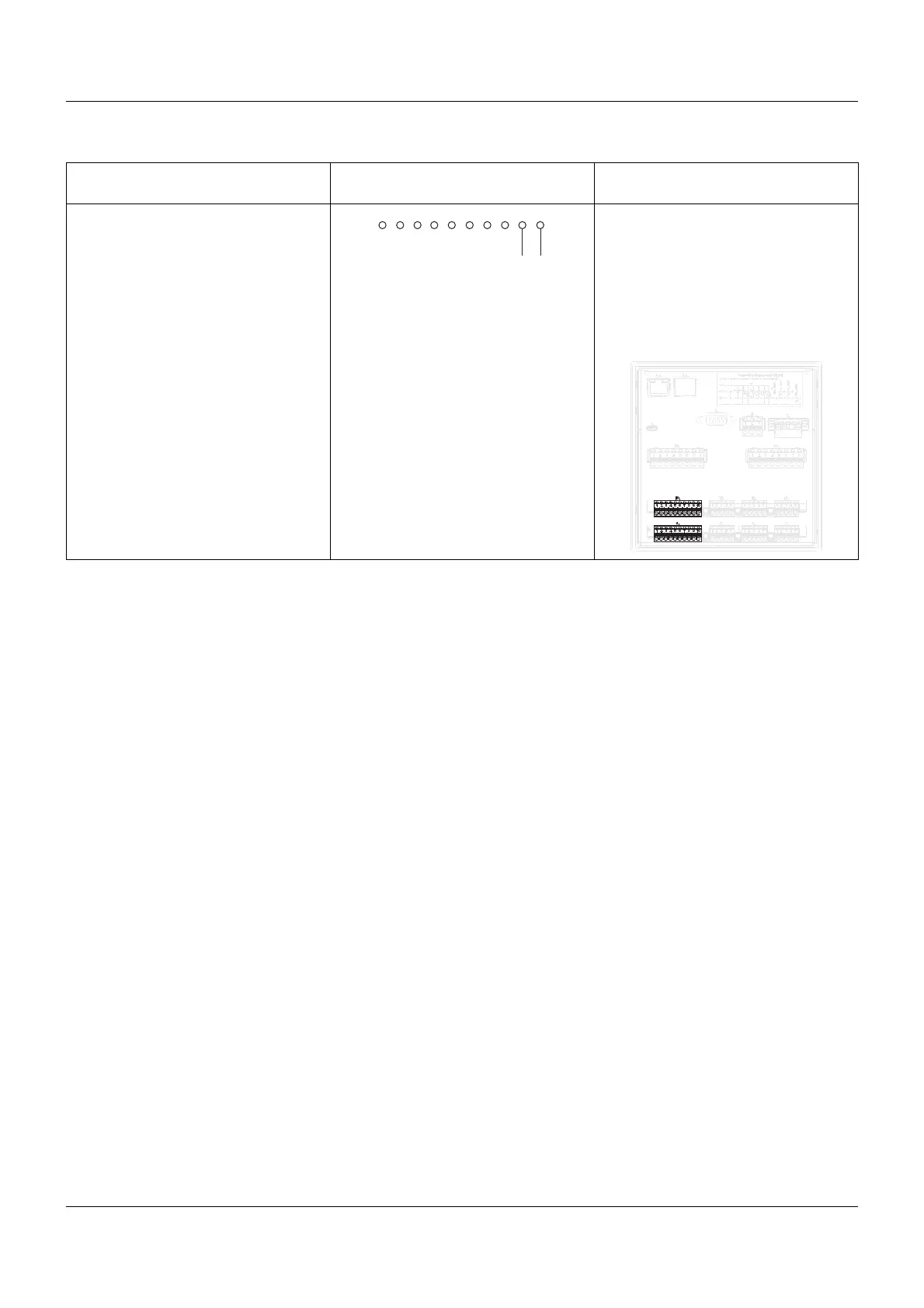

4.4.3 Analog outputs
Version Terminals and connection symbol Connection element.terminal /
assignment
Analog output
DC 0 to 10 V or
DC 0(4) to 20 mA
(configurable)
Analog/digital option
(order code 1):
6.9 / Analog output 1 +
6.10 / Analog output 1 -
10.9 / Analog output 2 +
10.10 / Analog output 2 -
1234 9
+
-
5678 10
x
I
x
U
,
