7.5 Analog inputs
The analog inputs (optional extra) are universal analog inputs for connecting various measuring probes.
For example, the analog inputs are pooled into groups together with other analog signals via the
"Groups" configuration and are available for further use via these groups.

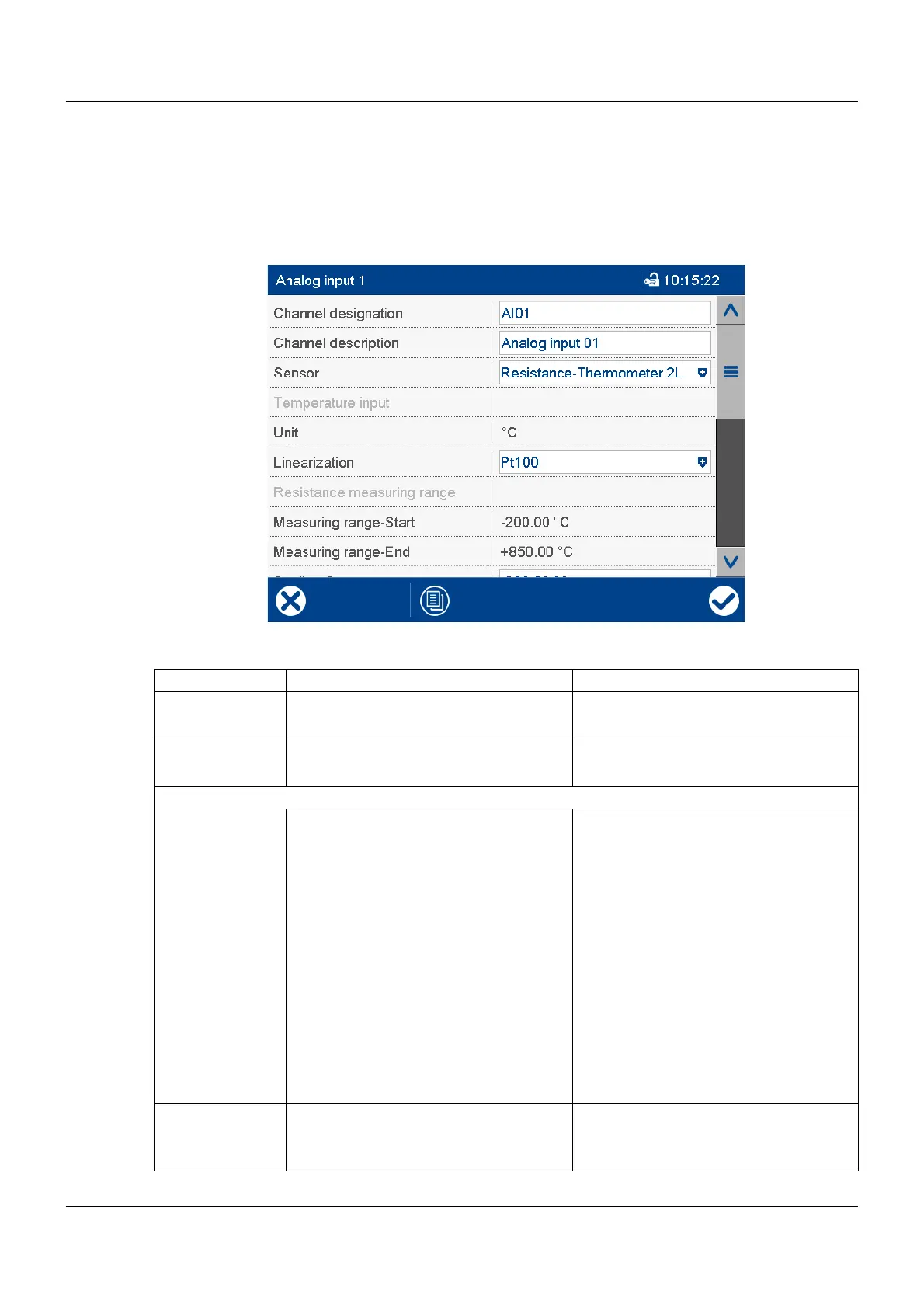

Device dialog (excerpt)
Parameter
Parameter Selection/settings Description
Channel designa-
tion
AI ...
Use default text or enter other text.
Name (abbreviation) with max. 5 charac-
ters that is used in the visualizations.
Channel descrip-
tion
Analog input ...
Use default text or enter other text.
Description (designation) with max. 21
characters (e.g. for curve diagram)
Sensor Selection of measuring probe for the relevant analog input
Inactive No sensor selected
Deviating default setting for analog input
1 to 3 (see below)
RTD temp. probe 2-w RTD temperature probe in two-wire cir-
cuit
RTD temp. probe 3-w RTD temperature probe in three-wire cir-
cuit
RTD temp. probe 4-w RTD temperature probe in four-wire cir-
cuit
Resistance/potentiometer 2-w Resistor/potentiometer in two-wire circuit
Resistance/potentiometer 3-w Resistor/potentiometer in three-wire cir-
cuit
Resistance/potentiometer 4-w Resistor/potentiometer in four-wire cir-
cuit
Resistance transmitter Resistance transmitter
Thermocouple Thermocouple
Voltage 0 to 70 mV Voltage signal
