121
7 Configuration
7.10 External analog inputs
The external analog inputs are analog signals that are transferred to the device via an interface from ex-
ternal systems. The external analog inputs can also be written by a barcode scanner (see
chapter 11.4.2 "Texts and process values", Page 276).
The external analog inputs are pooled into groups along with other analog signals via the "Groups" con-
figuration and are then available for further use via these groups.

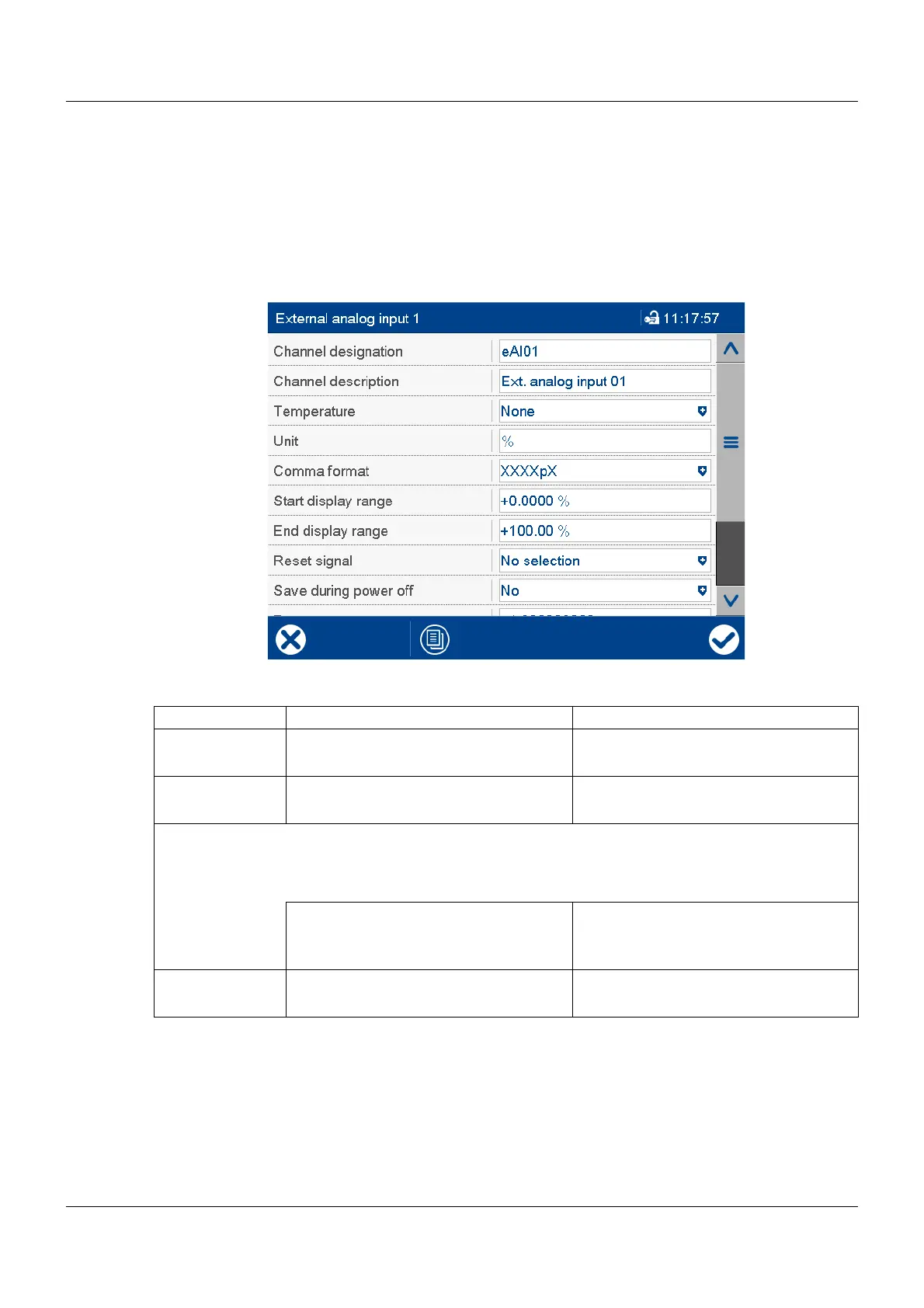

Device dialog (excerpt)
Parameter
Parameter Selection/settings Description
Channel designa-
tion
eAI ...
Use default text or enter other text.
Name (abbreviation) with max. 5 charac-
ters that is used in the visualizations.
Channel descrip-
tion
Ext. analog input ...
Use default text or enter other text.
Description (designation) with max. 21
characters (e.g. for curve diagram)
Temperature The parameter determines whether the transferred value (measured value) is eval-
uated as a temperature value, a temperature difference, or not as a temperature.
The distinction between temperature value and temperature difference is significant
for conversion from °C to °F.
None The value is not a temperature.
Temperature difference The value is a temperature difference.
Temperature value The value is a temperature value.
Unit %
(Max. 5 characters)
The unit is displayed if the measured val-
ue is displayed in numerical form.
