5.4.5 Report
A report shows the statistical information for the relevant group. A report contains the maximum, mini-
mum, and average values of the analog signals during the recording time (the recording period is con-
figurable). A distinction is made between the current (ongoing) report and the completed report.
To create a report, it must be activated in the configuration for the relevant group.

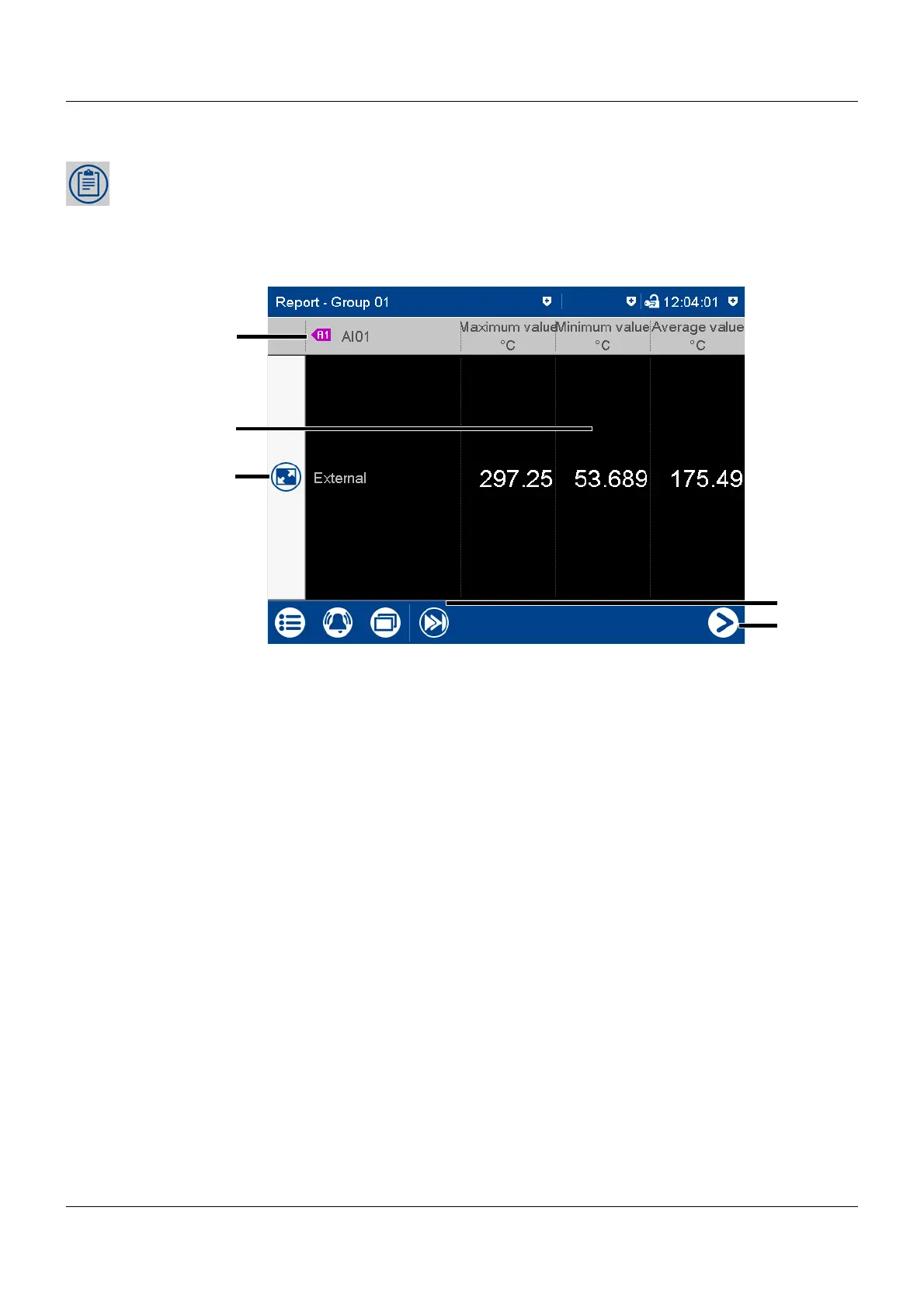

View
(1) Designation (pointer) and signal abbrevi-
ation (configurable) of the analog signal
(4) Go to the next analog signal within the
group
(2) Values of analog signal in the current
(not completed) report
The type (configurable; here: external)
decides when the report is stored and
thus completed.
(5) Go to the report for the next group
(3) Call up detailed view of analog signal
