21
3 Mounting

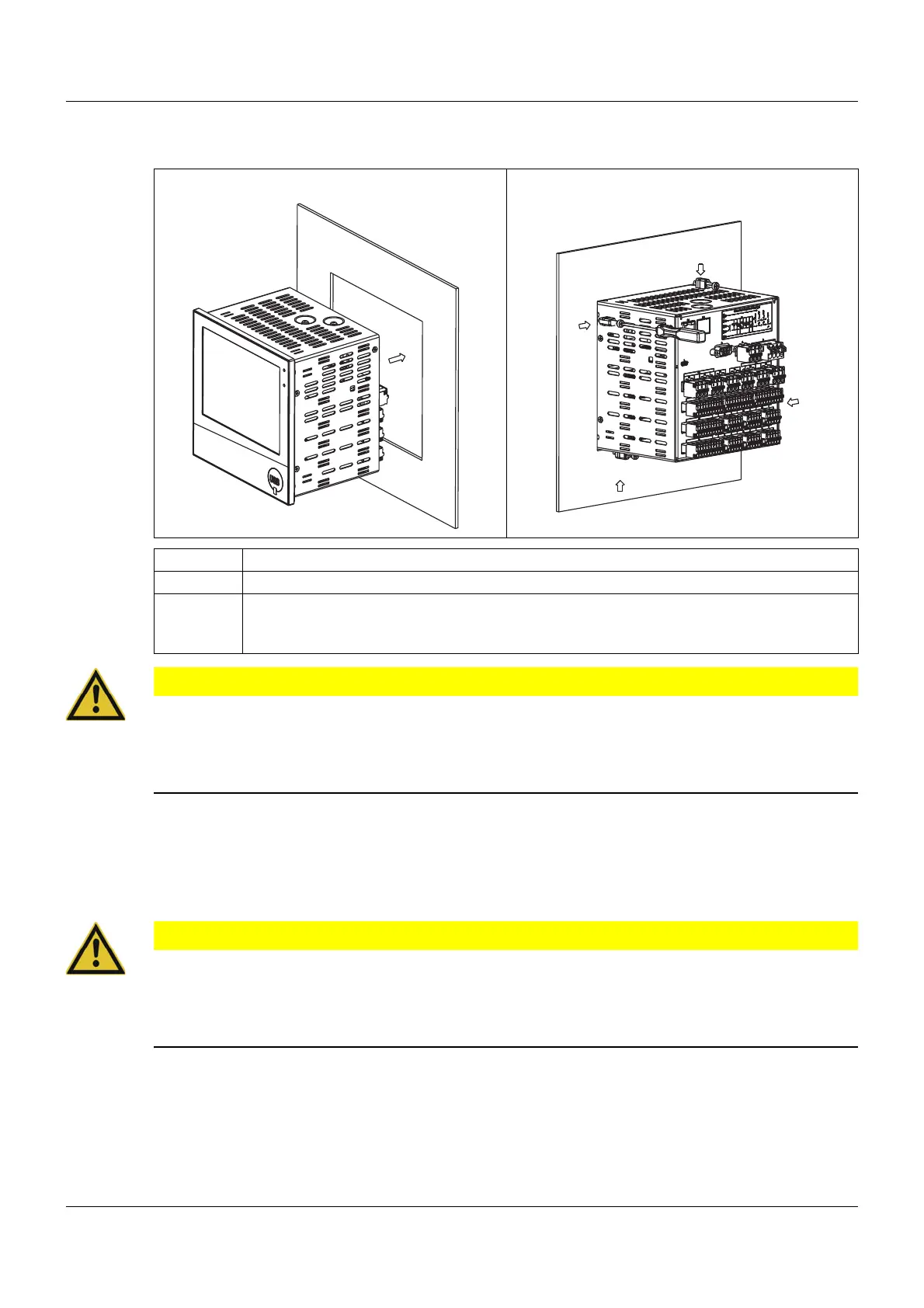

3.3 Panel mounting
CAUTION!
The front of the device and housing have different protection types!
The protection type IP65 (front-side) is only guaranteed if the seal is flush and even.
The four supplied mounting elements must all be used and must be distributed evenly as shown in
the figure.
3.4 Handling the front of the device
Cleaning
The front of the device (front foil) can be cleaned with standard detergents, rinsing and cleaning agents.
CAUTION!
The front of the device is not resistant to aggressive acids and lyes, scouring agents, and clean-
ing with a pressure cleaner.
Use of these media can cause damage.
Only clean the front of the device with suitable agents.
Operation
The screen (resistive touchscreen) can be operated by finger pressure or with a commercially available
touchscreen stylus.
12
Step Action
1 Insert the device into the panel cut-out from the front until the seal is flush with the panel.
2 Insert the mounting elements into the recesses of the housing (one element on each cor-
ner, see figure) and use a screwdriver to evenly clamp them against the rear side of the
panel with a torque of 1.0 Nm.
