JUMO LOGOSCREEN 601 User Manual

29
4 Electrical connection

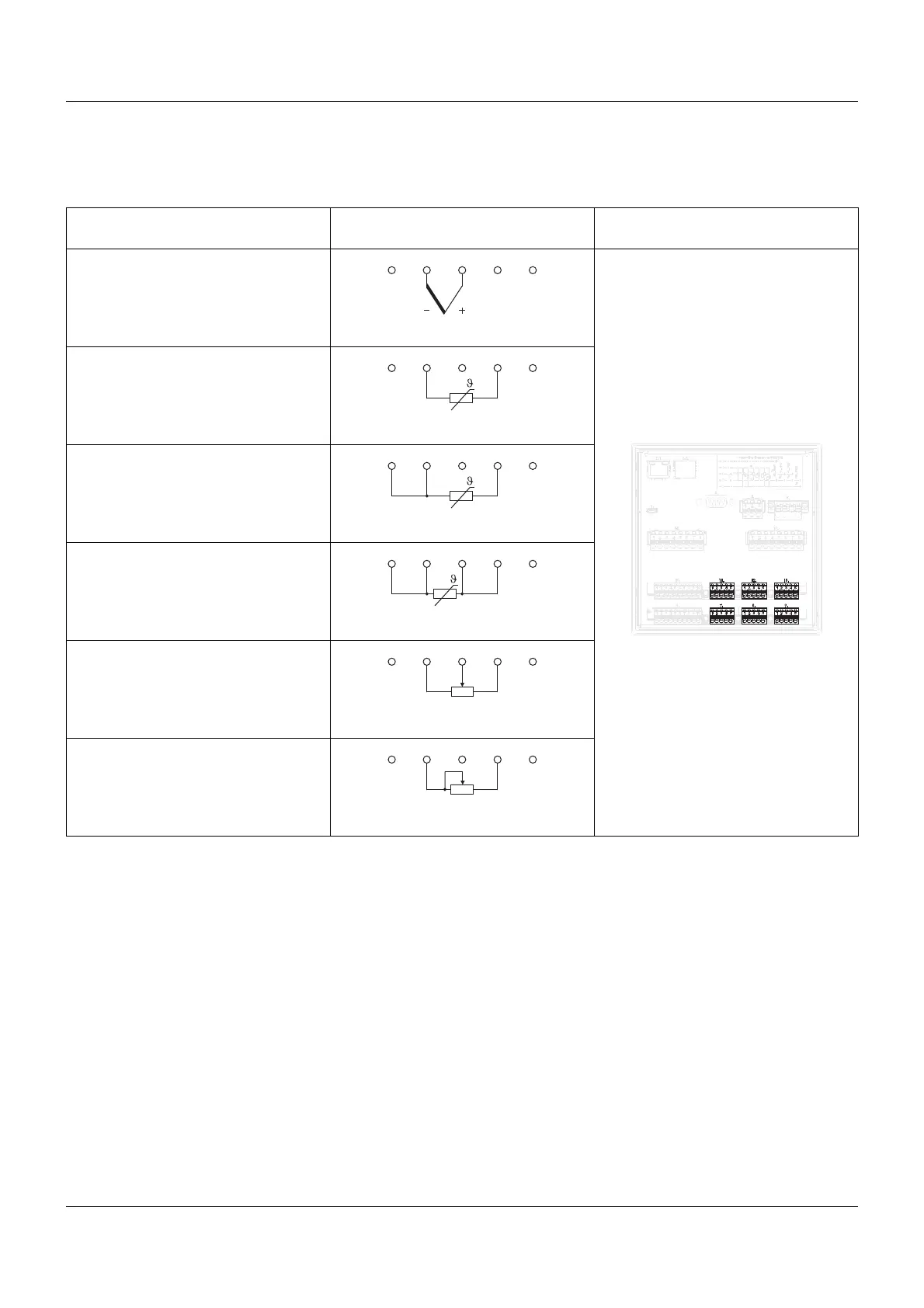

4.4 Connection diagram
4.4.1 Analog inputs
Measuring probe Terminals and connection symbol Connection element.terminal /
assignment
Thermocouple Analog/digital option
(order code 1):
7.1-5 / Analog input 1
8.1-5 / Analog input 2
9.1-5 / Analog input 3
11.1-5 / Analog input 4
12.1-5 / Analog input 5
13.1-5 / Analog input 6
RTD temperature probe
Two-wire circuit
RTD temperature probe
Three-wire circuit
RTD temperature probe
Four-wire circuit
Resistance transmitter
Resistance/potentiometer
Two-wire circuit
12345
12345
12345
12345
12345
ES
A
12345
