117
7 Configuration
7.8 Digital inputs/outputs
The digital inputs/outputs (optional extra) can be individually switched between input and output. The in-
puts are actuated with an external voltage DC 0/24 V or via a potential-free contact (auxiliary voltage in
place). The outputs provide an output signal of DC 0/24 V.
As digital inputs, they are pooled into groups along with other digital signals in the "Groups" configuration
and are then available for further use via these groups.

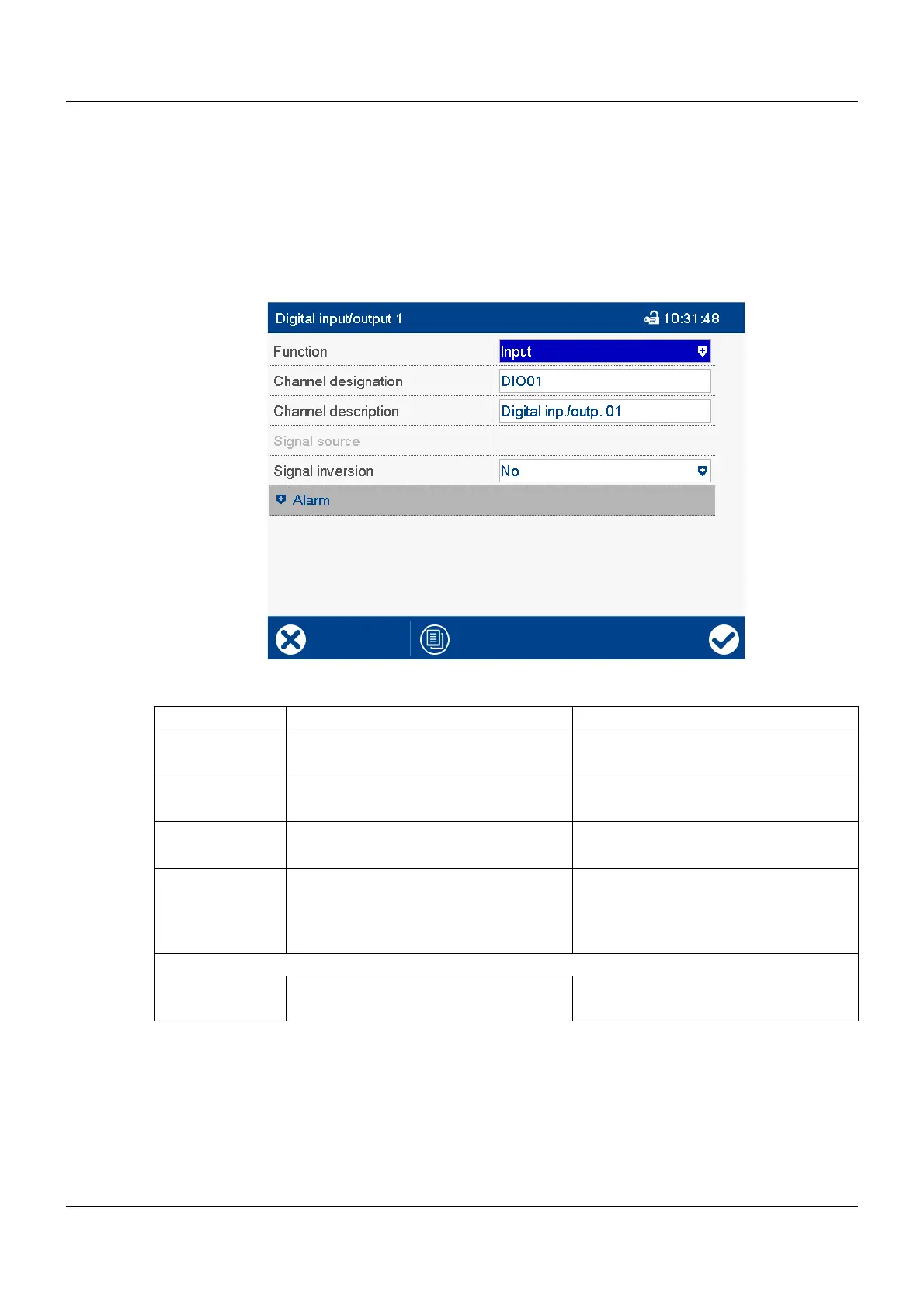

Device dialog box
Parameter
Behavior after power on
During the device's initialization phase, all connections are actuated as digital inputs, even if they were
previously configured as digital outputs.
7.8.1 Signal monitoring
Signal monitoring (alarm) can be activated for each digital input/output.
Parameter Selection/settings Description
Function Input Digital input
Output Digital output
Channel designa-
tion
DIO ...
Use default text or enter other text.
Name (abbreviation) with max. 5 charac-
ters that is used in the visualizations.
Channel descrip-
tion
Digital input/output ...
Use default text or enter other text.
Description (designation) with max. 21
characters
Signal source (for
output only)
Digital selector
No selection
Digital signal output via the digital output.
"No selection": the output signal corre-
sponds to the "Low" state (0 V for non-in-
verted signals, 24 V for inverted signals).
Signal inversion Inversion of the input or output signal
No The signal is not inverted.
Yes The signal is inverted.
