7 Configuration
154

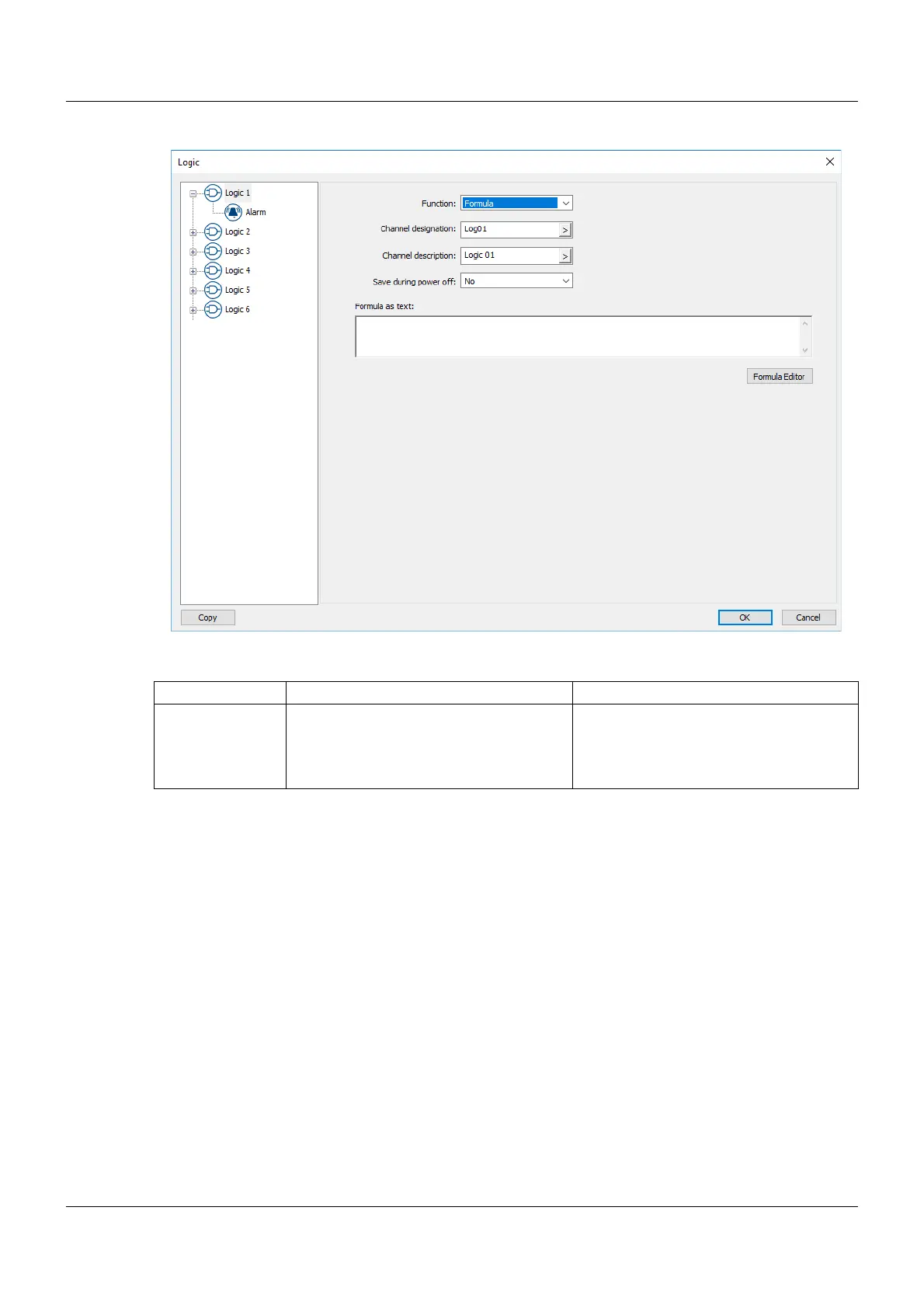

Setup dialog box
Parameter
All other parameters and their settings are identical to the configuration on the device.
Formula as text, Formula Editor
Pressing the "Formula Editor" button opens an editor that can be used to create formulas by selecting
variables and operators (max. 600 ASCII characters). Formulas can be entered freely in line with stan-
dard Boolean rules. Any number of spaces may be used within the formula symbol string. Spaces are
not admissible in function designations, names of variables, or constants.
Status after change of configuration
Modified parameters are incorporated immediately.
Behavior after power on
If the "Save using power off" function is not active, all logic values are set to 0 and the calculation is re-
started.
7.17.1 Signal monitoring
Signal monitoring (alarm) can be activated for the results.
Parameter Selection/settings Description
Formula as text View of the formula created with the For-
mula Editor (max. 600 ASCII characters)
The formula can also be edited in this
field.
