221
9 Configuration – in setup program only
9.8 Modbus frames for writing
This function can be used to compile up to 32 Modbus frames for writing the paperless recorder's pro-
cess values to external devices (via interface) individually for each opposite end. The paperless recorder
writes the process values (analog and digital values; texts) to the frames, where they are available for
external devices.
Each frame can be used to configure up to 24 frame entries with a process value each, which are then
grouped and transmitted in a Modbus telegram.

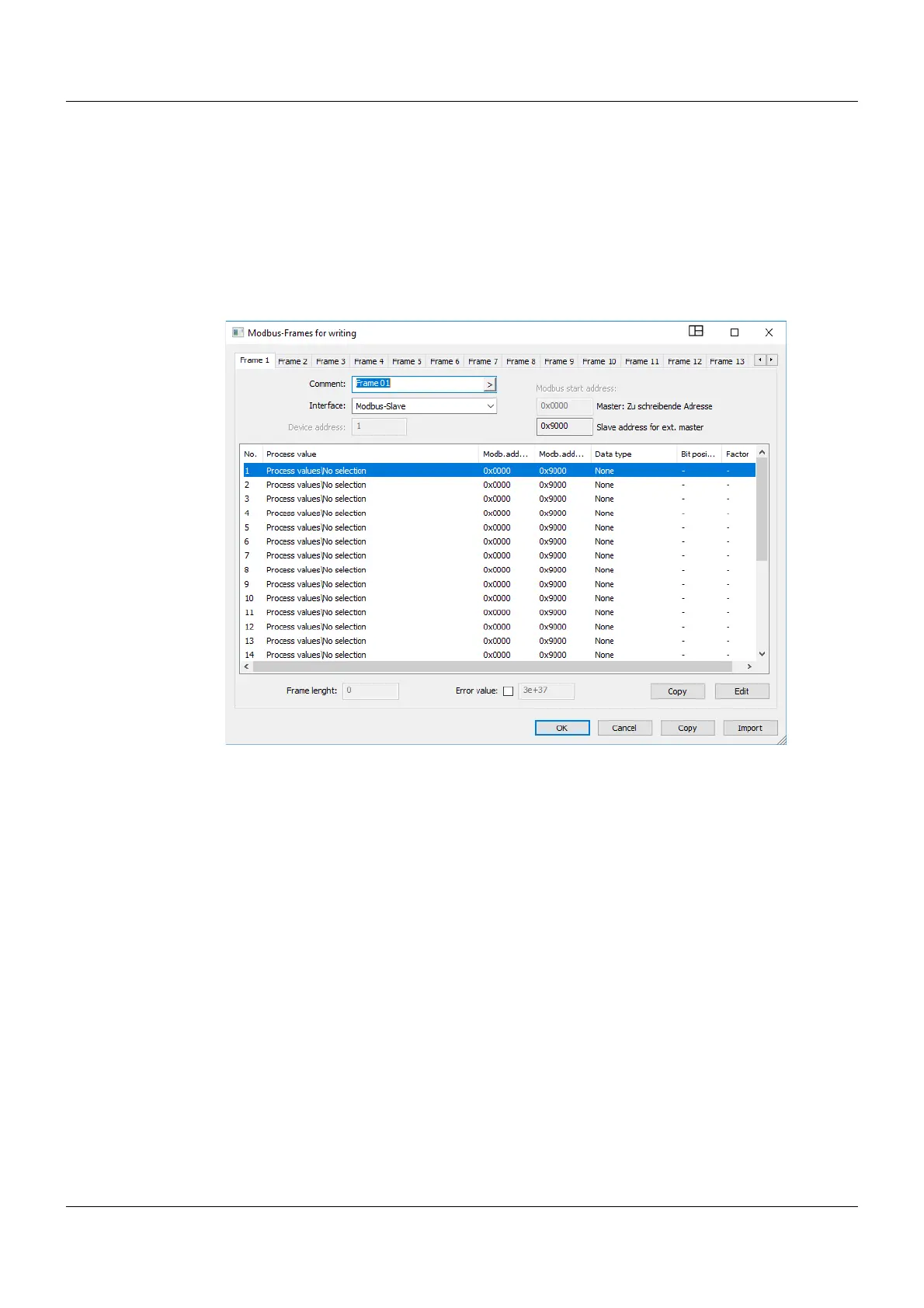

Setup dialog box
Configuration and use of the Modbus frames for writing are described in the interface description.
chapter 1.6.2 "Device documentation in the form of PDF files", Page 15
