9.12.4 General object features
The description of the general object features applies for all object types for which the parameters in
question are available.
The specific object features are described in the following chapters under the corresponding object type.

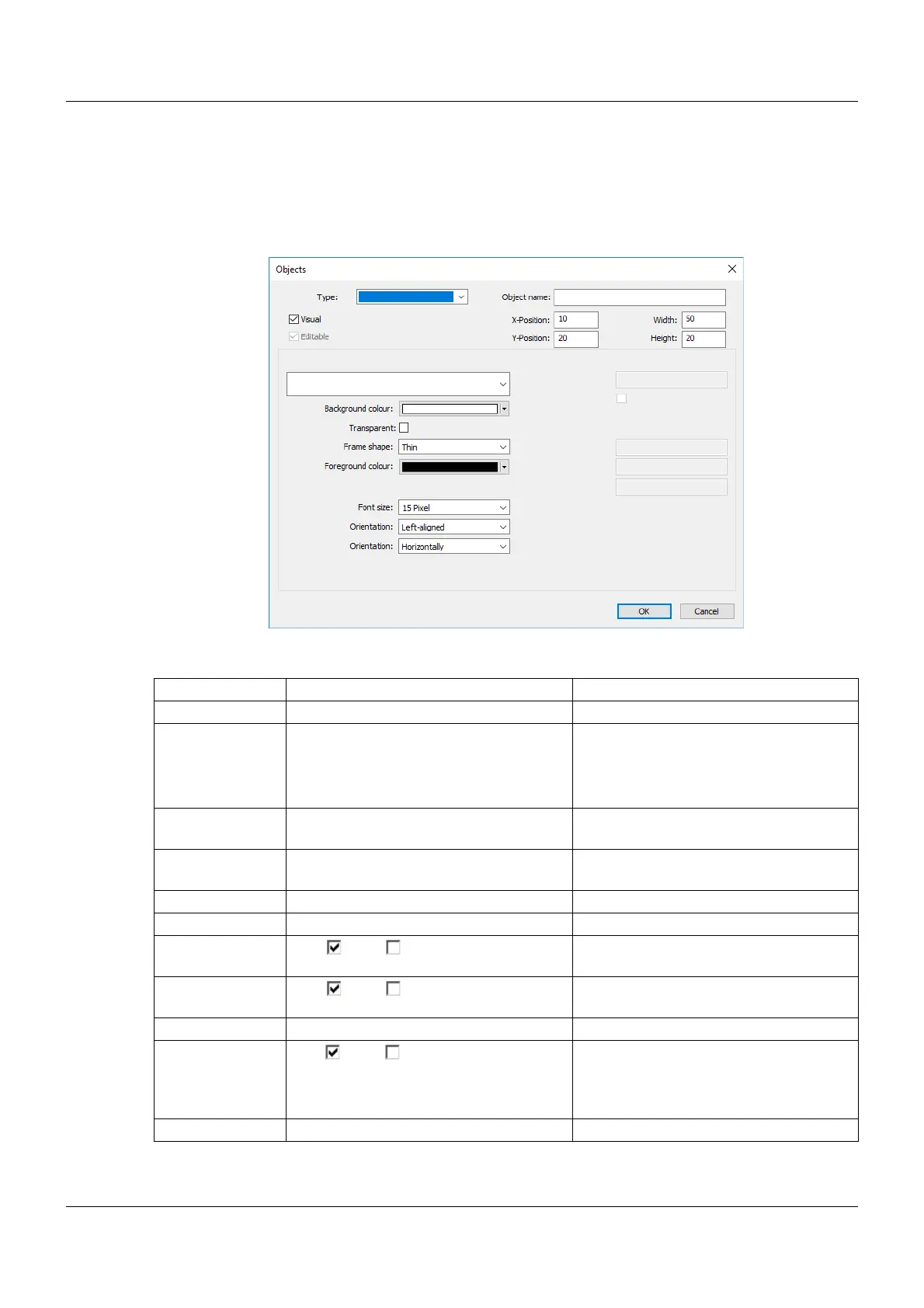

Setup dialog box
Parameter
Parameter Selection/settings Description
Type Selection from list of object types Object type for the process screen
Object name Enter text (max. 24 characters)
Blank (no object name)
In the ST editor, the object ID can be ac-
cessed via the object name.
If an object name is assigned, it must be
unique within the process screen.
X position 0 ... 10 ... 639 X coordinate of the upper left corner of
the object in the process screen
Y position 0 ... 20 ... 378 Y coordinate of the upper left corner of
the object in the process screen
Width 1 ... 50 ... 640 Width of the object
Height 1 ... 20 ... 379 Height of the object
Visible Yes ( ), No ( ) "Yes" releases the display of the object in
the process screen.
Editable Yes ( ), No ( ) "Yes" enables the option for entry in the
process screen (only for input objects).
Background color Select color (drop-down menu). Background color of the object
Transparent Yes ( ), No ( ) If "Yes", the background color of the ob-
ject is not active. Instead, the font will be
displayed in front of the background col-
or of the process screen.
Frame form Select form (drop-down menu). The object can be provided with a frame.
