9 Configuration – in setup program only
9.12.11 Bar graph

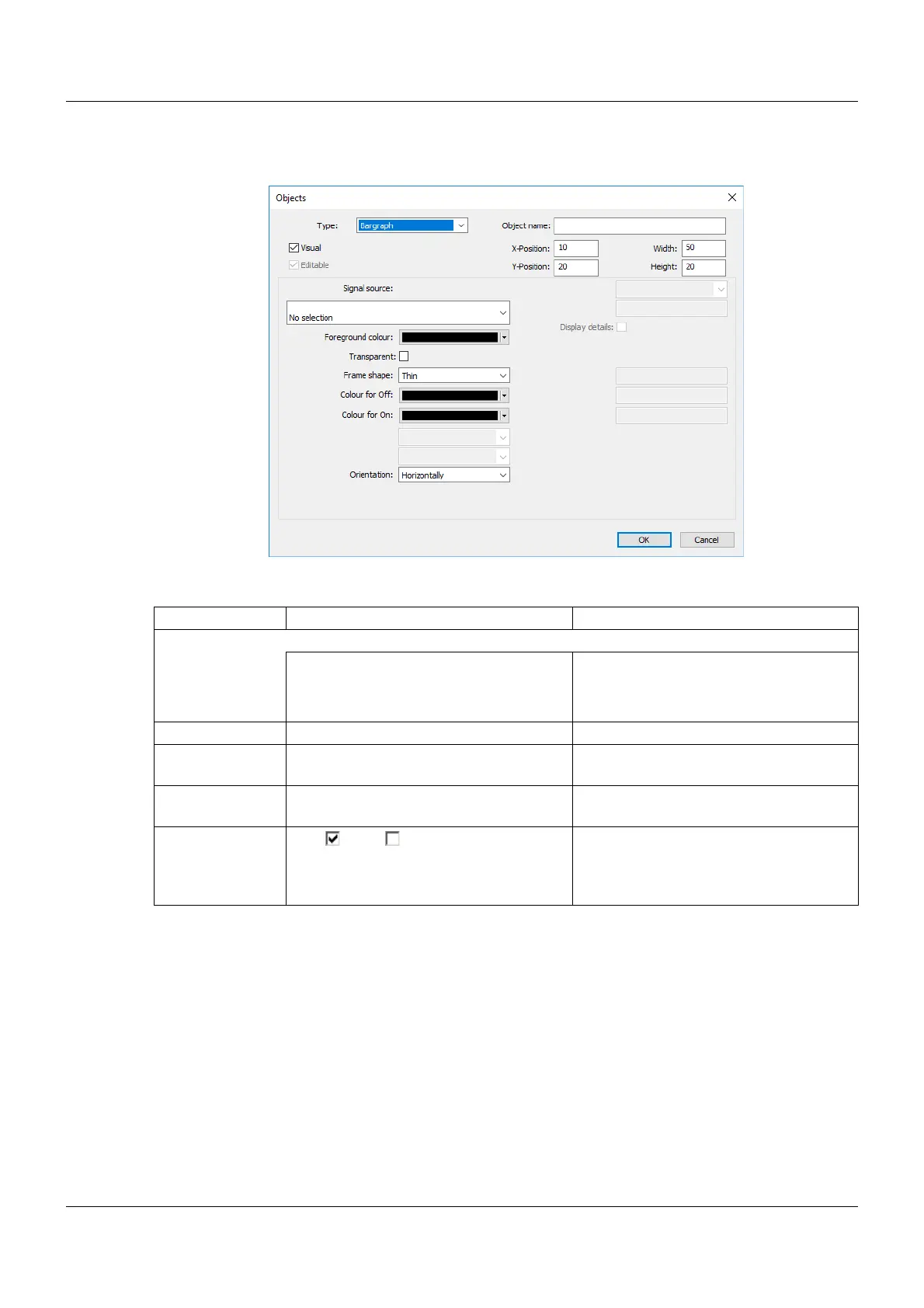

Setup dialog box
Parameter
Parameter Selection/settings Description
Signal source Analog signal whose value is displayed as a bar graph.
No selection No signal selected.
(Display: Bar at "0")
Select signal. Analog selector
Foreground color Select color (drop-down menu). Color for displaying details
Color for off Select color (drop-down menu). Color of the bar background within the
object (background color)
Color for on Select color (drop-down menu). Color of the bar within the object (fore-
ground color)
Show details Yes ( ), No ( ) If "Yes," alarms (Alarm 1 left, Alarm 2
right) and range limits (upper and lower)
are displayed (only in the case of a verti-
cal view).
