7.13.1 Alarm

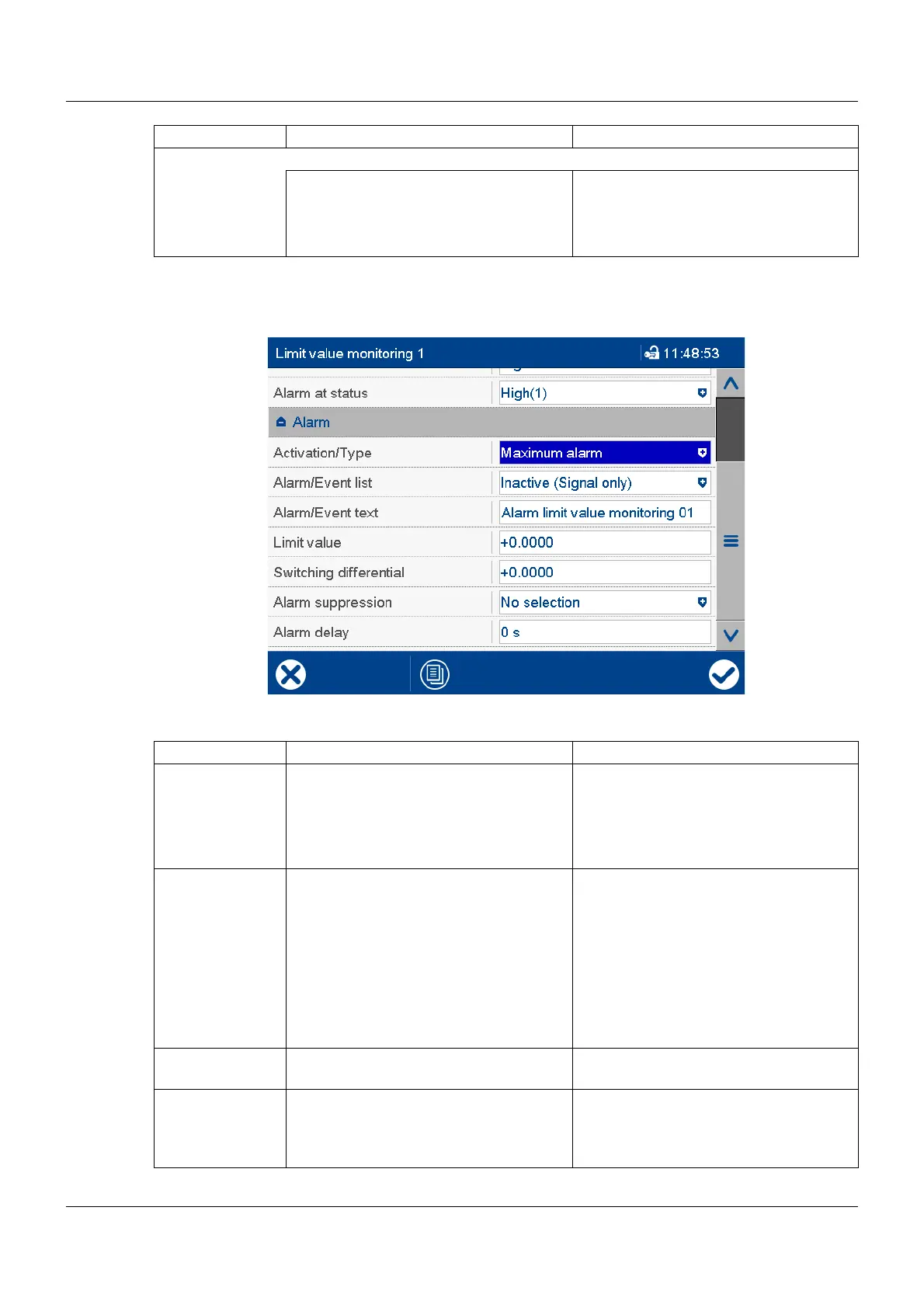

Device dialog box
Parameter
Response in case
of a fault
Behavior of the status signal if the input signal delivers an error value.
Signal inactive Status signal is inactive.
Signal active Status signal is active.
Signal unchanged Status signal keeps the state it had be-
fore the fault.
Parameter Selection/settings Description
Parameter Selection/settings Description
Activation/Type Inactive Limit value monitoring is inactive.
Min. alarm Status signal is active if the value drops
below the limit value.
Max. alarm Status signal is active if the limit value is
exceeded.
Alarm/Event list Inactive (signal only) In out-of-limit cases, only the status sig-
nal is activated.
Event The alarm/event text is entered in the
event list.
Alarm/event The alarm/event text is entered in the
alarm list and the event list. The collec-
tive alarm is activated and the text of the
last alarm to occur is displayed in the sta-
tus bar.
Alarm/Event text Use default text or enter other text. Text entered in the alarm and event list
and displayed in the status bar.
Limit value -99999 to 0 to +99999 If the limit value is exceeded (max. alarm
case) or the value drops below the limit
(min. alarm case), an out-of-limit case
exists.
