JUMO LOGOSCREEN 601 User Manual

31
4 Electrical connection
4.4.2 Digital inputs

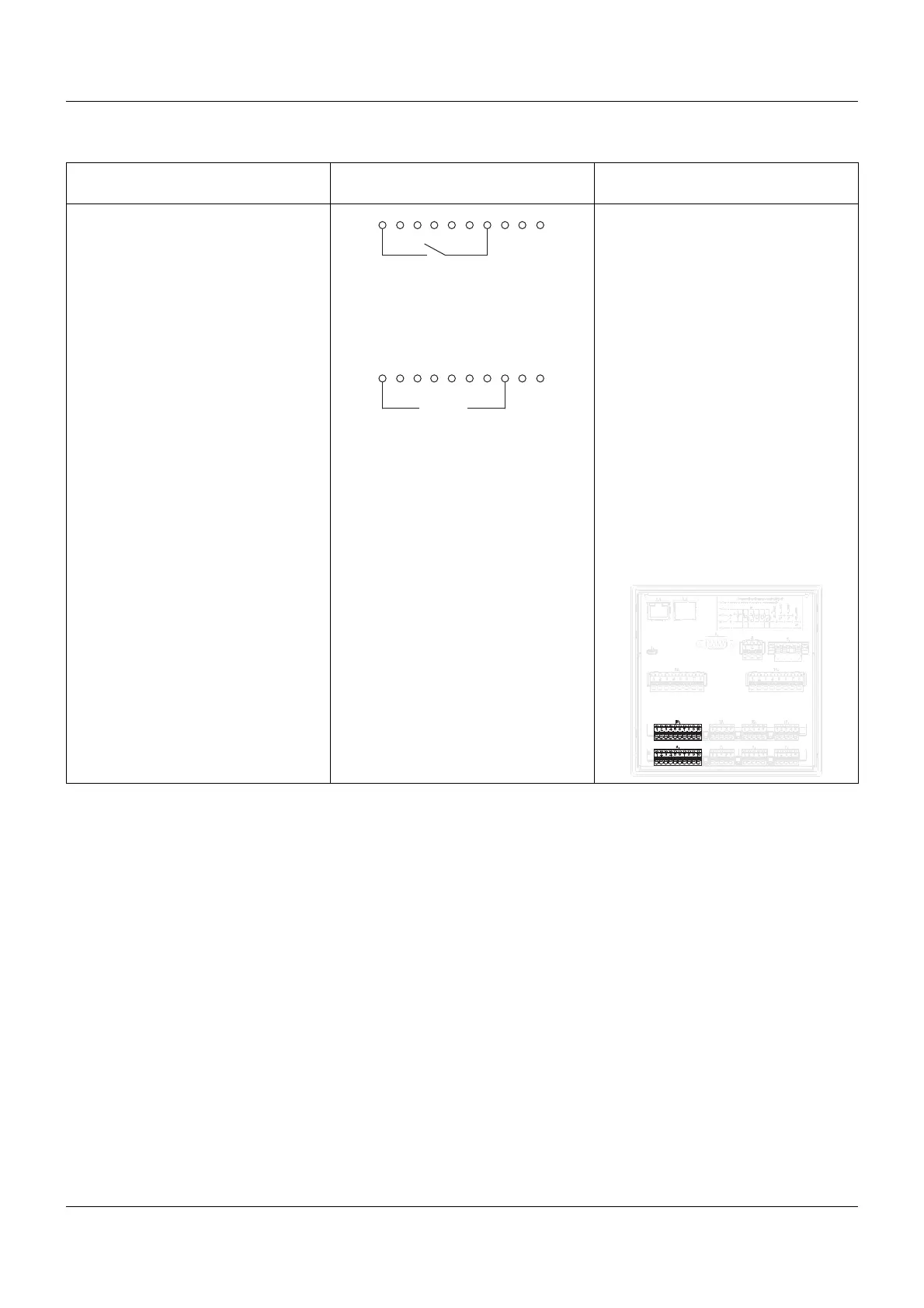

Version Terminals and connection symbol Connection element.terminal /
assignment
Digital input DC 0/24 V,
auxiliary voltage supply DC 24 V
Example: potential-free contact on
digital input 1 and +24 V (auxiliary
voltage)
Analog/digital option
(order code 1)::
6.1 / Digital input 1
6.2 / Digital input 2
6.3 / Digital input 3
6.4 / Digital input 4
6.5 / Digital input 5
6.6 / Digital input 6
6.7 / +24 V
6.8 / GND
10.1 / Digital input 7
10.2 / Digital input 8
10.3 / Digital input 9
10.4 / Digital input 10
10.5 / Digital input 11
10.6 / Digital input 12
10.7 / +24 V
10.8 / GND
Example: external voltage on digital
input 1 and GND
1234
+
-
56789 10
1234 9
U
+
-
x
5678 10
24 V
-
+
