5 Operation
38
The area on the right shows the logon status as an icon and the time. The button additionally shows
the weekday, date, user name, and memory usage.
Icons used:
The status bar is also used as an alarm display. In the event of an alarm, the alarm text (red back-
ground) and the normal text (blue background) are alternately displayed.
Screen
The screen area displays the current visualization, a menu (e.g., main menu) with its menu items, or a
list (e.g., event list).
Channel information
The channel information display in the curve diagram can be switched on and off (configuration). The
designation (pointer) of the analog signal (e.g., A1) is displayed along with the abbreviation of the analog
signal (e.g., AI01 for analog input 1) and the analog value.
Instead of the abbreviation, the designation (description) can also be displayed (configuration).
Navigation bar
The navigation bar consists of three areas which are delimited by vertical lines.
The area on the left contains the buttons (icons) for calling up
- the main menu (left),
- the alarm and event menu (center), and
- the visualization menu (right).
The area in the center contains buttons (icons) whose function depends on the screen currently being
displayed.

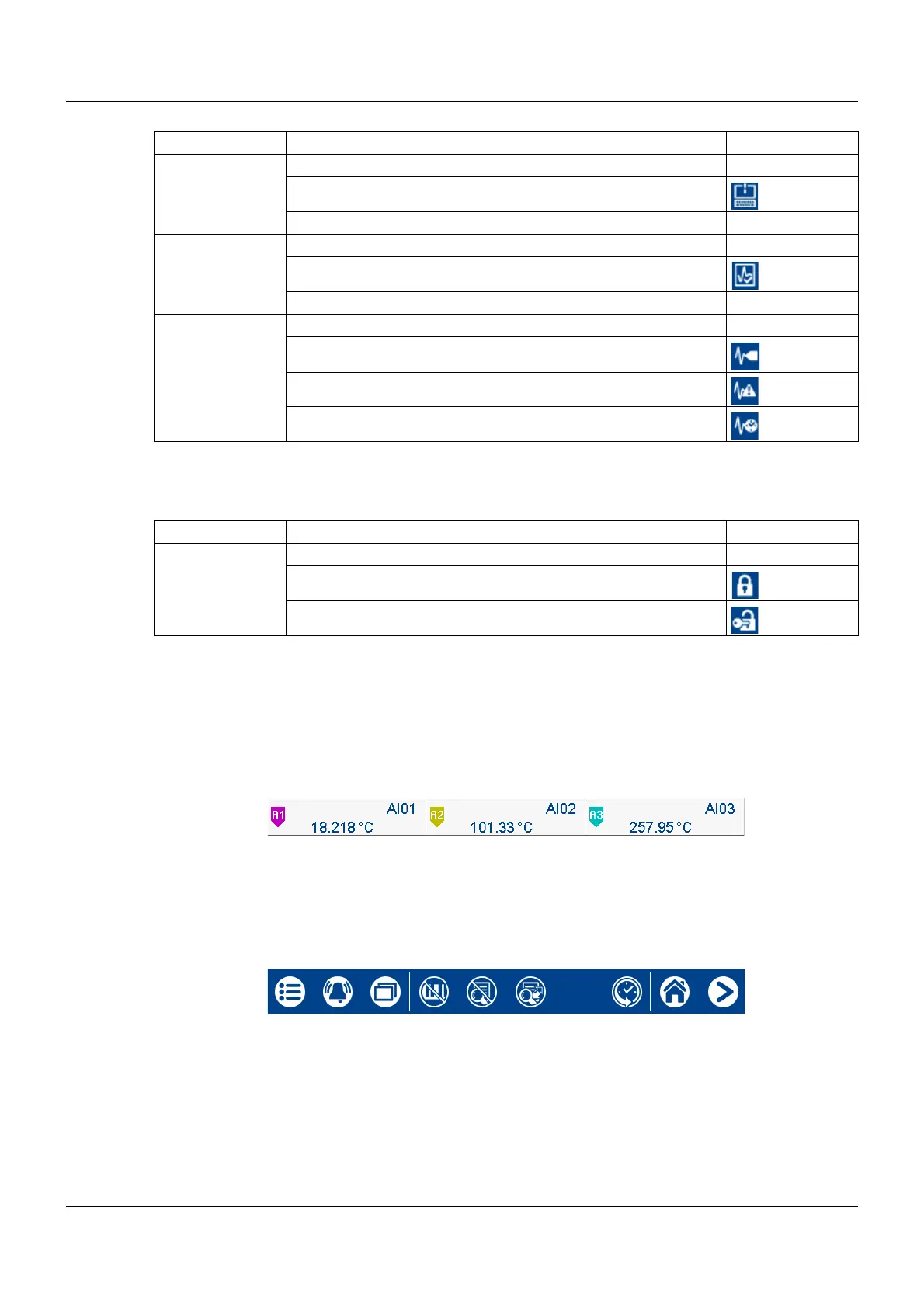

Position Meaning Symbol
Left Data transfer via PCC software
- Transfer active
- Transfer not active No icon
Center Batch recording
- Recording active
- Recording not active (or batch not configured) No icon
Right Operating mode
- Standard operation
- Event operation
- Time operation
Position Meaning Symbol
Left Logon status
- User not logged on
- User logged on
