9.2 Programming Main window

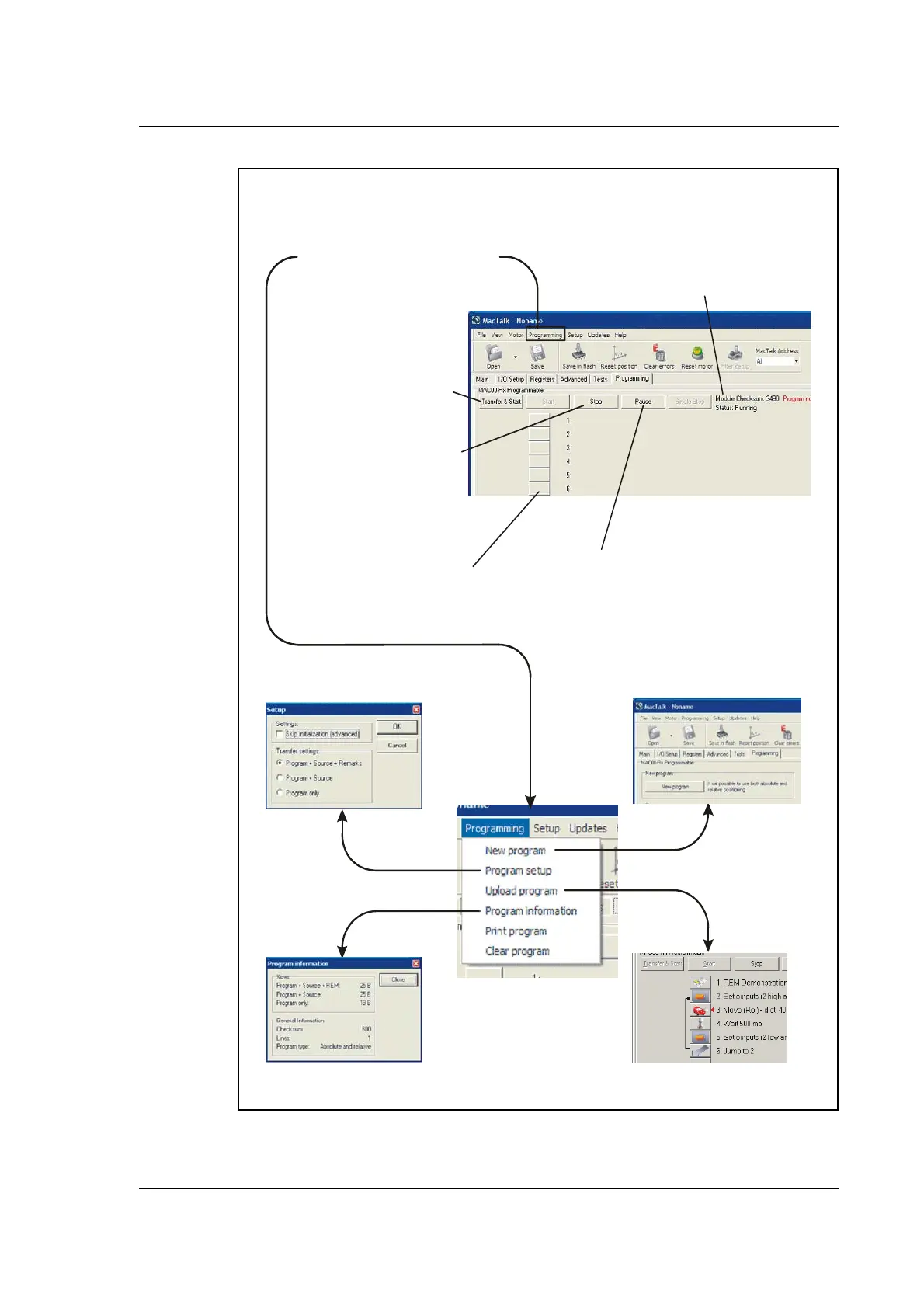

The main window for creating a new program or editing a program is shown below:
Program lines
Each Botton represent a program
line. By pushing the botton a com-
mand can be entered at the program
line.
Tr a n s f e r & S t a r t
Will transfer the complete
program and start it.
Use or to stop it.
Stop Pause
Pause
Use this botton if the program must
be paused. By paused means that actual
program line executed is temporary paused.
When paused the single step feature can be
used to debug the program.
Stop
Use this botton if the program
must be stopped.
Programming menu
Main menu for creating a new program,
Verifying program size and other basic
details for the SMC75 Controller..
SMC75 Status texts
The message means
that there is a difference between the program
seen on the screen and the actual program in
the module. This can happen if the program
have been edited but not transferred.
(or ) refers to the
program in the module.
Program not transferred
Status: Running Stopped
