JVL Industri Elektronik A/S - User Manual - Integrated Stepper Motors MIS23x, 34x, 43x 289

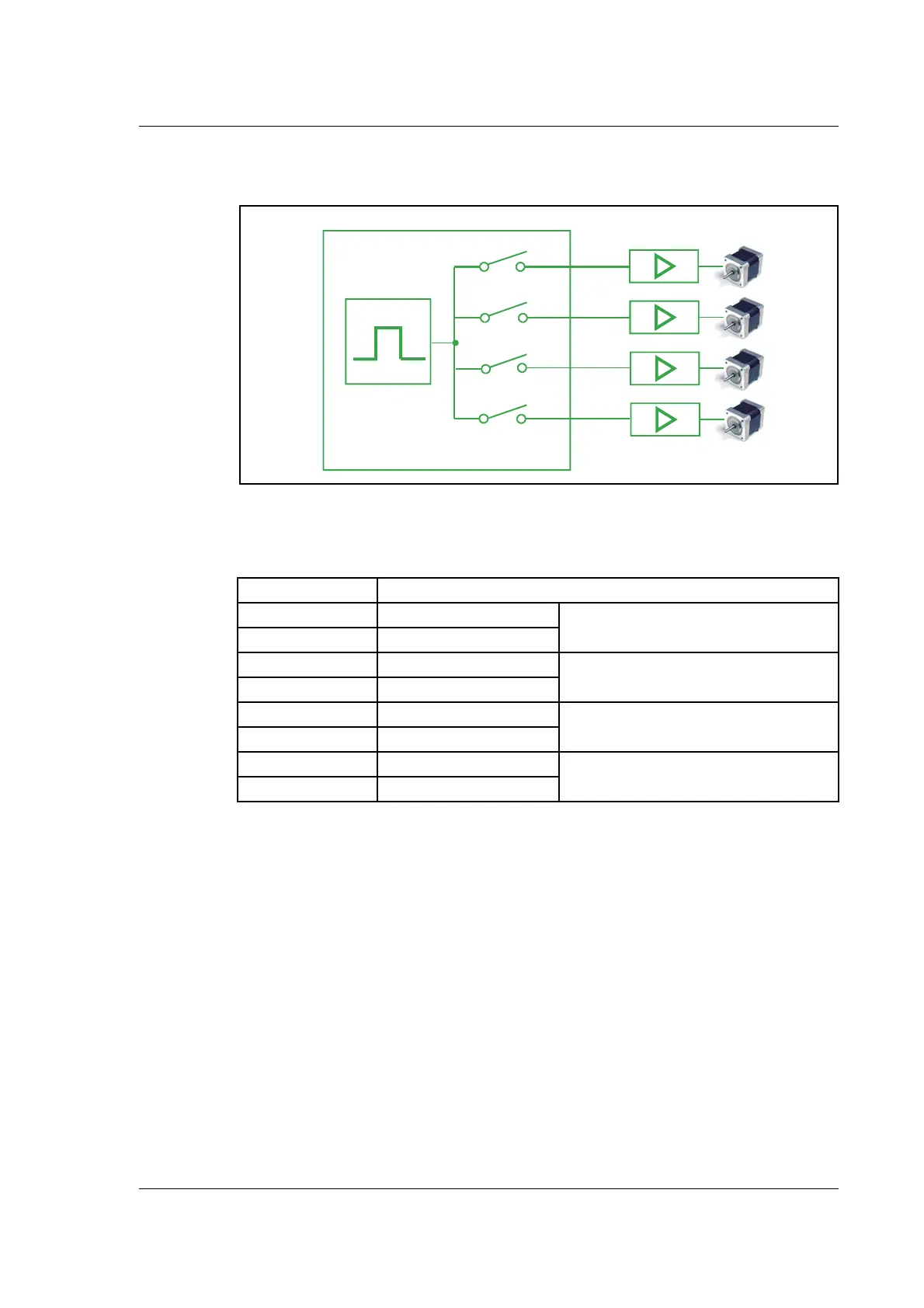

14.2 Connecting MISxx/SMC75 to SMD73
The MISxx/SMC75 can control an external driver with pulse and direction signals for pre-
cise positioning and speed control.
The 8 outputs can be used to generate pulse/direction for up to 4 drivers. This can be
used for accurate synchronization of two or more motors, based on the same source sig
-
nal. Use MacTalk “I/O Setup” to set up the outputs to pulse/direction signals.
SMC75 SMD73 with PNP inputs
O1 (pulse) IN1
Motor 1
O2 (direction) IN2
O3 (pulse) IN1
Motor 2
O4 (direction) IN2
O5 (pulse) IN1
Motor 3
O6 (direction) IN2
O7 (pulse) IN1
Motor 4
O8 (direction) IN2
TT2230GB
Driver
SMC75
O1-O2
O3-O4
O5-O6
O7-O8
Motor
