1 Introduction
This user manual describes the set-up and usage of the following products:
Complete motors with build-in controller or driver
• Types MIS231, MIS232 and MIS234 (NEMA23 sizes)
• Types MIS340, MIS341 and MIS342 (NEMA34 sizes)
• Types MIS43x (NEMA43 sizes) - only limited supported in this manual.
Stand-alone electronics without motor
• Types SMD73 and SMD74 drive PCB without intelligence (not programmable)
• Types SMC75 and SMC85 controller PCB with intelligence (fully programmable)
All the quickstep motors are available as a fully programmable product with a wide range
of features also covering a simple pulse and direction interface.
The smaller quickstep motors size MIS23x are also available as a “non-programmable”
and more simple version with pulse and direction inputs for applications which are price
sensitive.

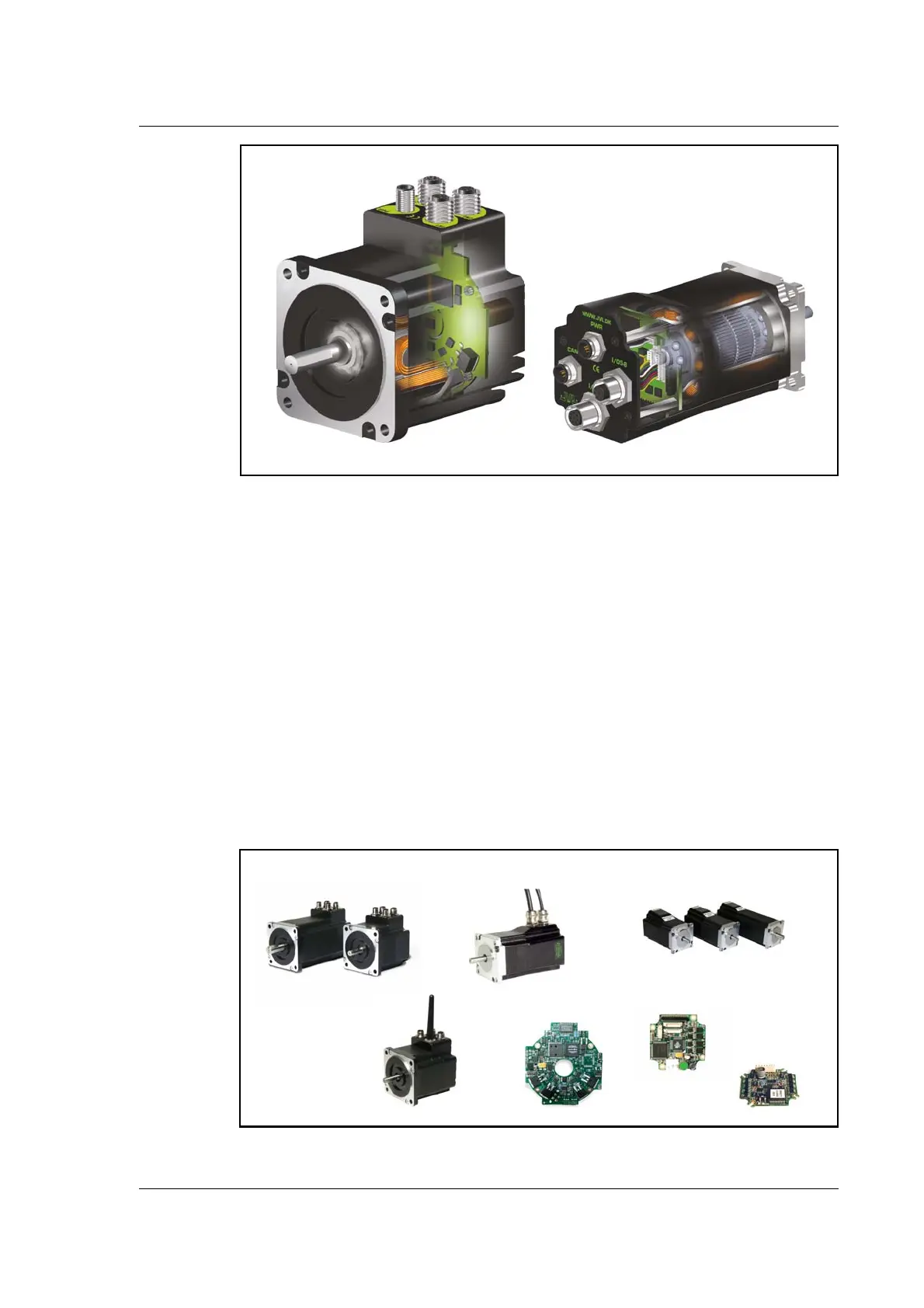

Examples of motors and stand alone electronics.
MIS34x family
(MIS340 shown)
MIS23x family
(MIS232 shown)
TT2317-01GB
TT2319-01GB
MI
342 and MI
340
Standard version
MIS340
with Bluetooth
MI
232
with step and direction input
MI
230-234
Standard version
SMC75A1
Step motor controller
SMC85A1
Step motor controller
SMD73
Step motor driver
