52 JVL Industri Elektronik A/S - User Manual - Integrated Stepper Motors MIS23x, 34x, 43x

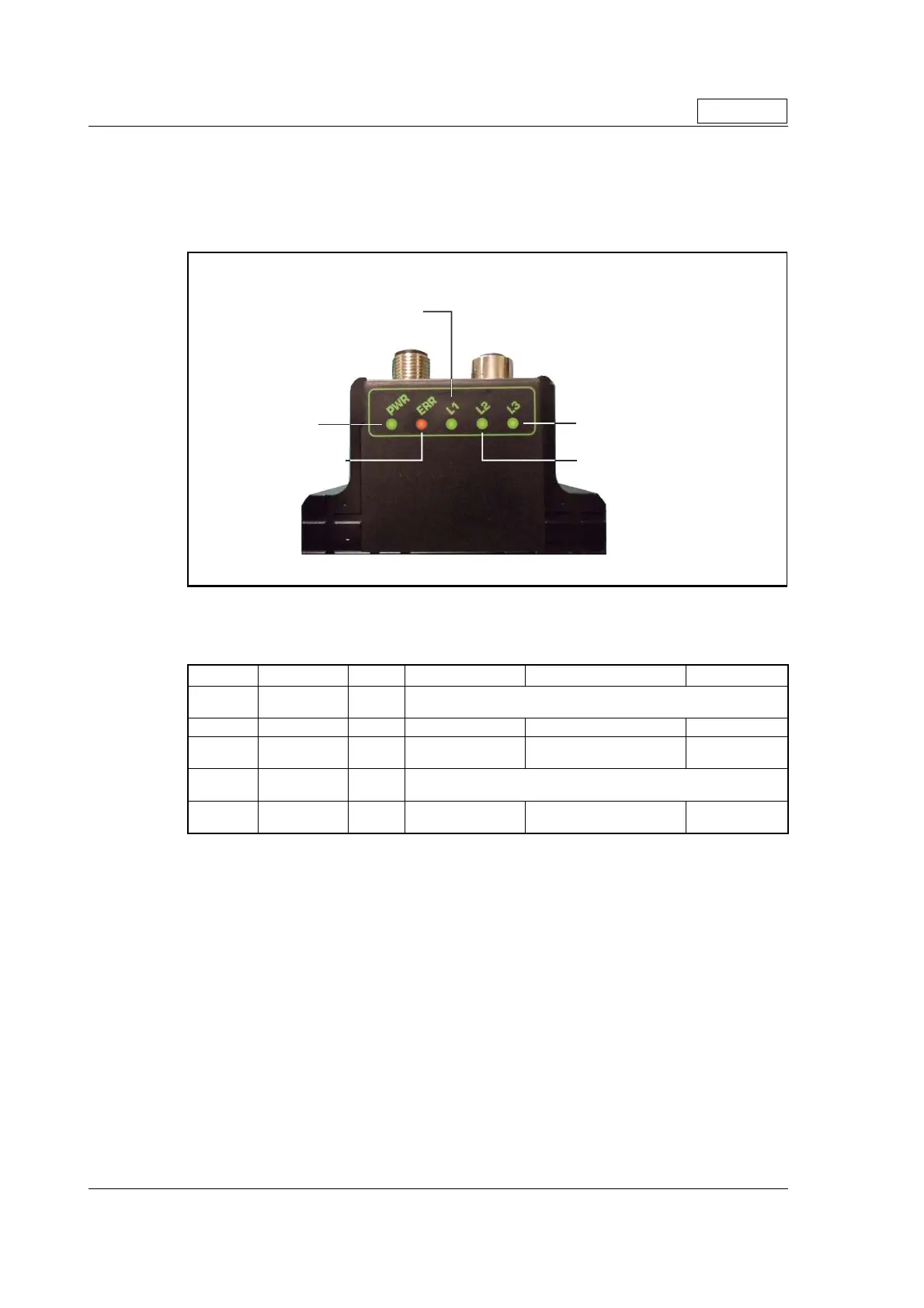

2.13 LED indicators at the MIS34x
2.13.1 Indicator LED’s - description for products with CANopen.
This description covers all MIS34x products with build in Ethernet such as
MIS34xxxxP6xxxx.
The LED's are used for indicating states and faults.
LED indicator descriptions (default setup)
LED Text Function Colour Constant off Constant on Blinking
L1
CANopen
run LED
Green Please see the DS303-3 standard
L2 Motor moving Green Motor not moving Motor moving -
L3
Motor in
position
Green Motor not in position Motor in position -
ERR
CANopen
error LED
Red Please see the DS303-3 standard
PWR Power Green Power is not applied.
Power is applied to both
motor and module.
-
Only MIS34x
TT2
4
-
1
B
CANopen Error LED
Power indicator
CANopen run LED
n
cator overv
ew
Motor moving
(can also be user configured)
Motor in position
(can also be user configured)
