30 JVL Industri Elektronik A/S - User Manual - Integrated Stepper Motors MIS23x, 34x, 43x
2.8 Special Connections

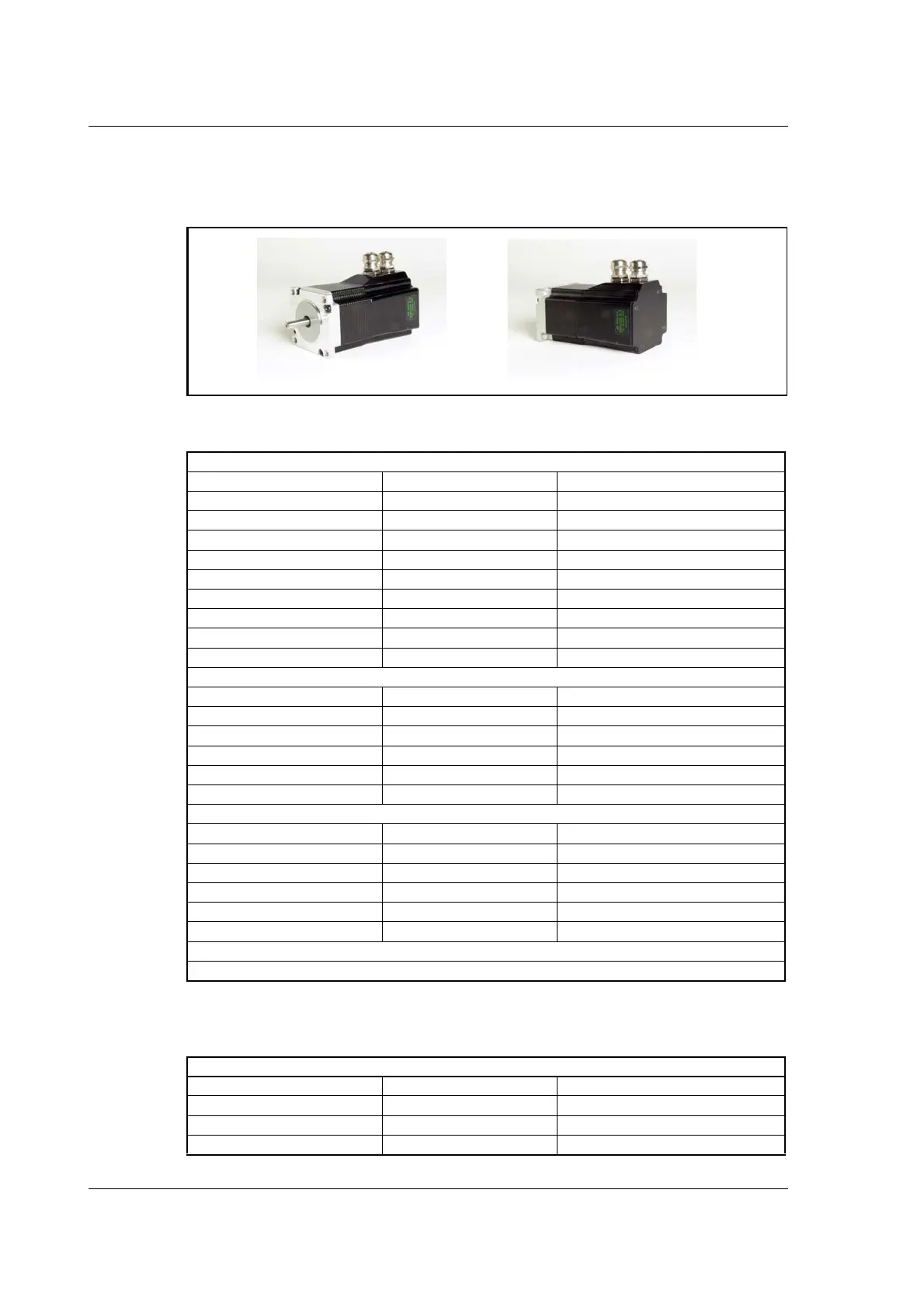

QuickStep motor MIS231A1C1N075.
Motor with 2 cable glands PG12 out of the side for low cost applications where a short
total length is required.
Can also be delivered with 5m cables as MIS231A1C2N075. Option for IP65.
Cable WG0905 for MIS231A1C2N075 and mounted cable on MIS231A1C1HN075
Cable WG1005 for MIS231A1C2N075 and mounted cable on MIS231a1C1N075 (Power
Cable
)
Connector J3
Pin no. Function Colour
1 IO1 White
2 IO2 Brown
3 IO3 Green
4 IO4 Yellow
5 CVO Red
6 A- Grey
7 B+ Pink
8 GND Black
9-10 Not used
Connector J4
Pin no. Function Colour
1 IO5 Blue
2 IO6 Violet
3 IO7 Grey/Pink
4 IO8 Red/Blue
5-10 Not used
Connector J5
Pin no. Function Colour
1-2 Not used
3 CAN_H White/Green
4 CAN_L Brown/Green
5 V+ White/Yellow
6 GND Yellow/Brown
Connector J8
Screen
Connector J2
Pin no. Function Colour
1 P+ Red
2 CVI Blue
3 P-/GND Black/Screen
