12.2 Step motor controllers (SM-
Cxx)
12.2.2 SMC75 Connector overview

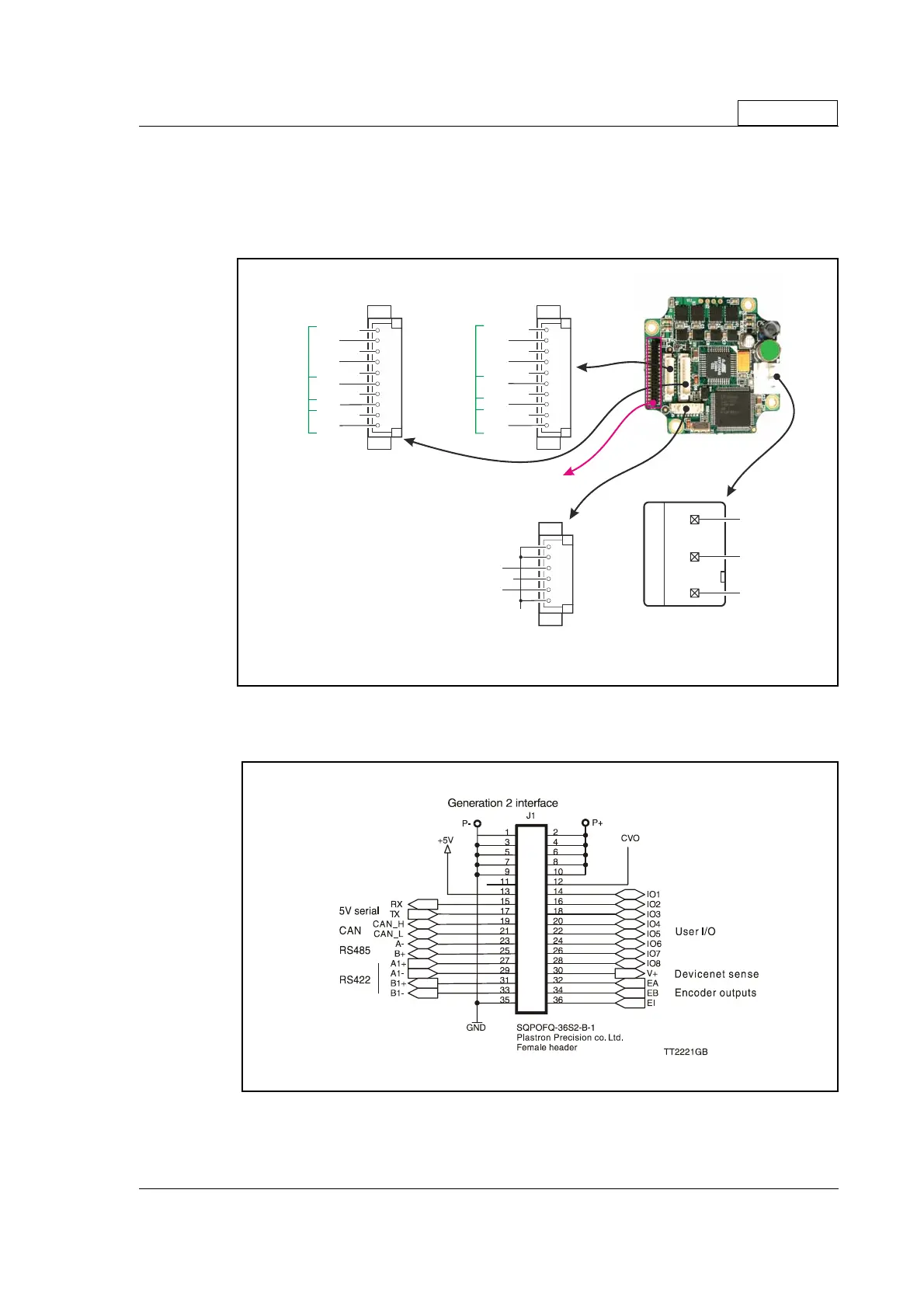

The connections to the various connectors of the SMC75 PCB board is shown below.
Note that GND and P- are connected together internally.
The figure below shows the generation 2 connector for future or special purposes.
Please contact JVL for further information.
Only SMC75
J4
1
2
3
4
5
6
7
8
9
10
IO5
IO6
User IO
IO7
IO8
CVO
GND
A1+
A1-
J3
1
2
3
4
5
6
7
8
9
10
IO1
IO2
IO3
IO4
CVO
User IO
TT2152-02GB
1
1
2
3
4
5
6
J5
J2
SMC75 Circuitboard
CAN_H
J1 - " connectorGeneration 2"
CAN_L
V+
GND
P+
(Main power)
P-
(Main ground)
CVI
(Control voltage input)
Recommended connector
Housing:
Molex 09-91-0300
(N
y
lon UL94V-0)
Crimp terminals:
Molex 08-50-106
Pitch = 3.96mm
Recommended connectors
Molex
CViLux
(or equivalent from CViLux)
Crimp contact 50079-8000 x 10
Housing 10 pin 51021-1000 x 1
or
Crimp contact CI44T011PEO x 10
Housing 10 pin CI4410 S000 x 1
Recommended connectors
Molex
(or equivalent from CViLux)
Crimp contact 50079-8000 x 6
Housin
g
6 pin 51021-0600 x 1
CViLux
Crimp contact CI44T011PEO x 6
Housin
g
6 pin CI4406 S000 x 1
2
3
B1+
B1-
RS422
(Multifunction I/O)
Ground
RS232 (5V)
(optional)
GND
Rx
Tx
A-
B+
RS485
(Communication)
CAN
(Optional)
Ground
RS422
(Multifunction I/O)
