JVL Industri Elektronik A/S - User Manual - Integrated Stepper Motors MIS23x, 34x, 43x 297
15.4 Gear and brake mounting instruction
15.4.1 Mounting a gear or a brake at the motor
When a gear or a brake is to be mounted on the front end of a motor it is very important
that this is done in the right way since a wrong way of mounting may have fatal influence
at lifetime of the motor or gear/brake and performance.
Please follow this instruction step by step to make sure that the mounting is done with a
good result.
1
2

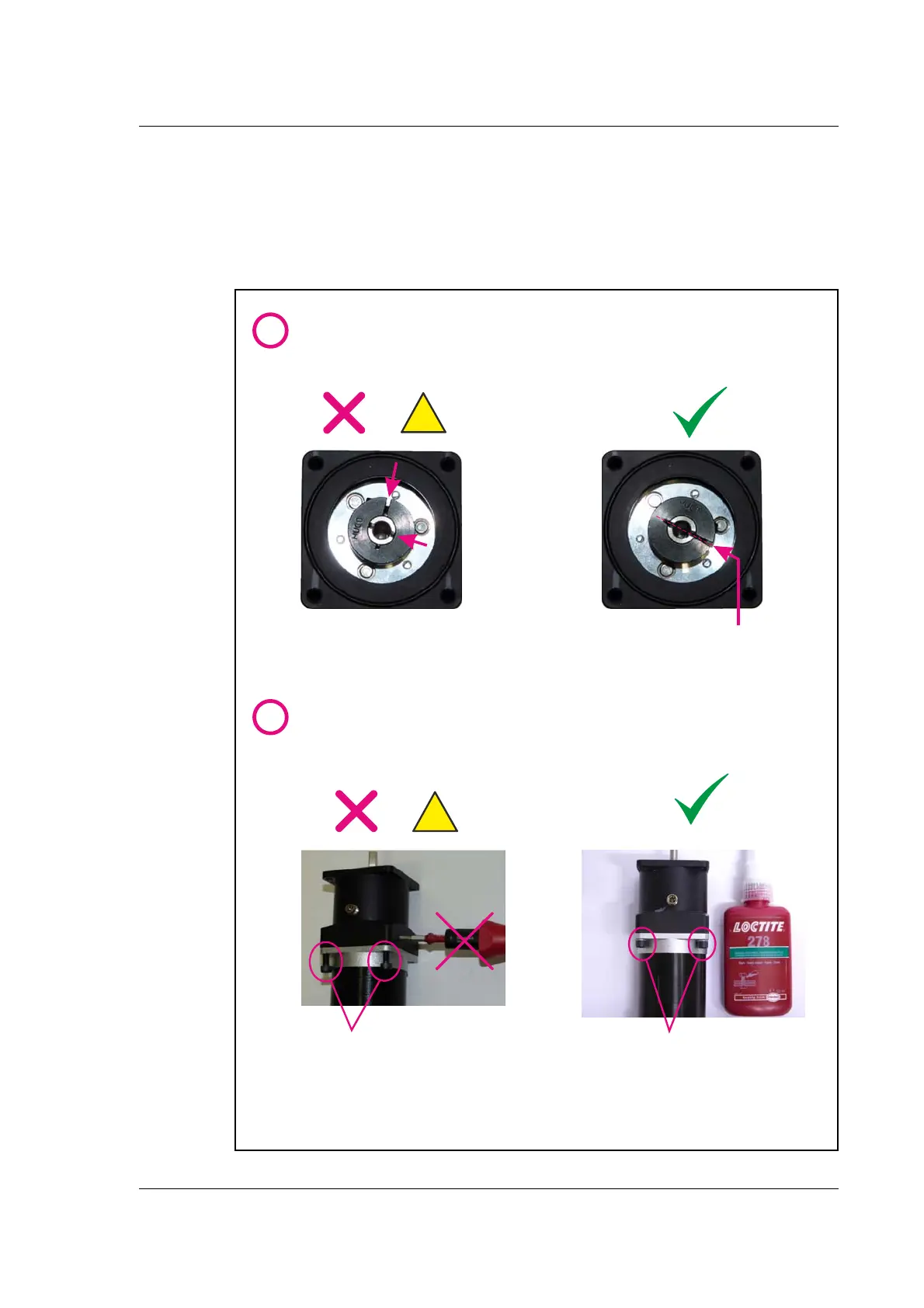

Step 1 - Make sure that the shaft collar is oriented correctly in order to
assure that the right tension around the motor shaft is possible.
Hint: Tighten the shaft collar gently just to keep it in the right position.
Step 2 - Mount the gear or brake at the motor but make sure to fasten the
4 shaft bolt first before fastening the shaft collar.
Its recommended to use Locktite 278 in the threats to make sure that the
bolts stay in place.
The inner and outer slit
is aligned as they should.
The inner and outer slit
is NOT aligned. Make sure
they are aligned as shown
at right illustration
!
!
Do NOT tighten the shaft collar
before the flange bolts are tightend
Flange bolts properly mounted
and tightend.
TT1
-
1
B
