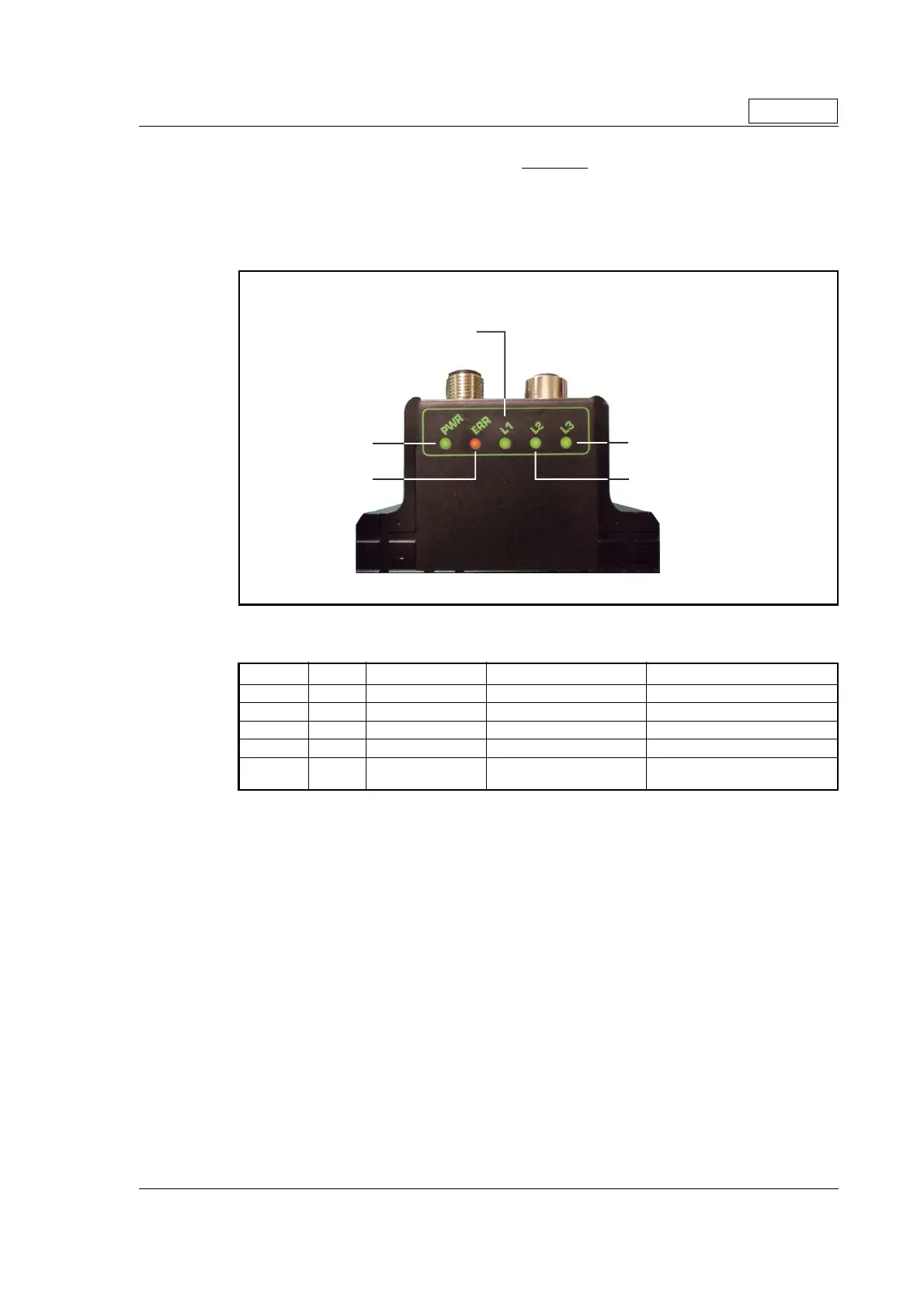

2.12 LED indicators at the MIS34x
2.12.1 LED’s - description for products without Ethernet or CANopen.
This description covers all MIS34x products with basic configuration without any Ether-
net or CANopen such as MIS34xxxxQ5xxxx, MIS34xxxxQ9xxxx, MIS34xxxxFBxxxx, or
MIS34xxxxEWxxxx.
The LED's are used for indicating states and faults.
LED indicator descriptions (default setup)
LED Text Colour Constant off Constant on Blinking
L1 Green Default Only when user configured Only when user configured
L2 Green Motor not moving Motor moving -
L3 Green Motor not in position Motor in position -
ERR Red No error - Error
PWR Green Power is not applied.
Power is applied to both
motor and module.
-
Only MIS34x
TT2
3
44-
0
1
G
B
Error indicator
Power indicator
Unused but user configurable
I
n
di
cator overv
i
ew
Motor moving
(can also be user configured)
Motor in position
(can also be user configured)
