204 JVL Industri Elektronik A/S - User Manual - Integrated Stepper Motors MIS23x, 34x, 43x
9.7 Graphic programming command reference
9.7.12 Conditional jump (multiple inputs)

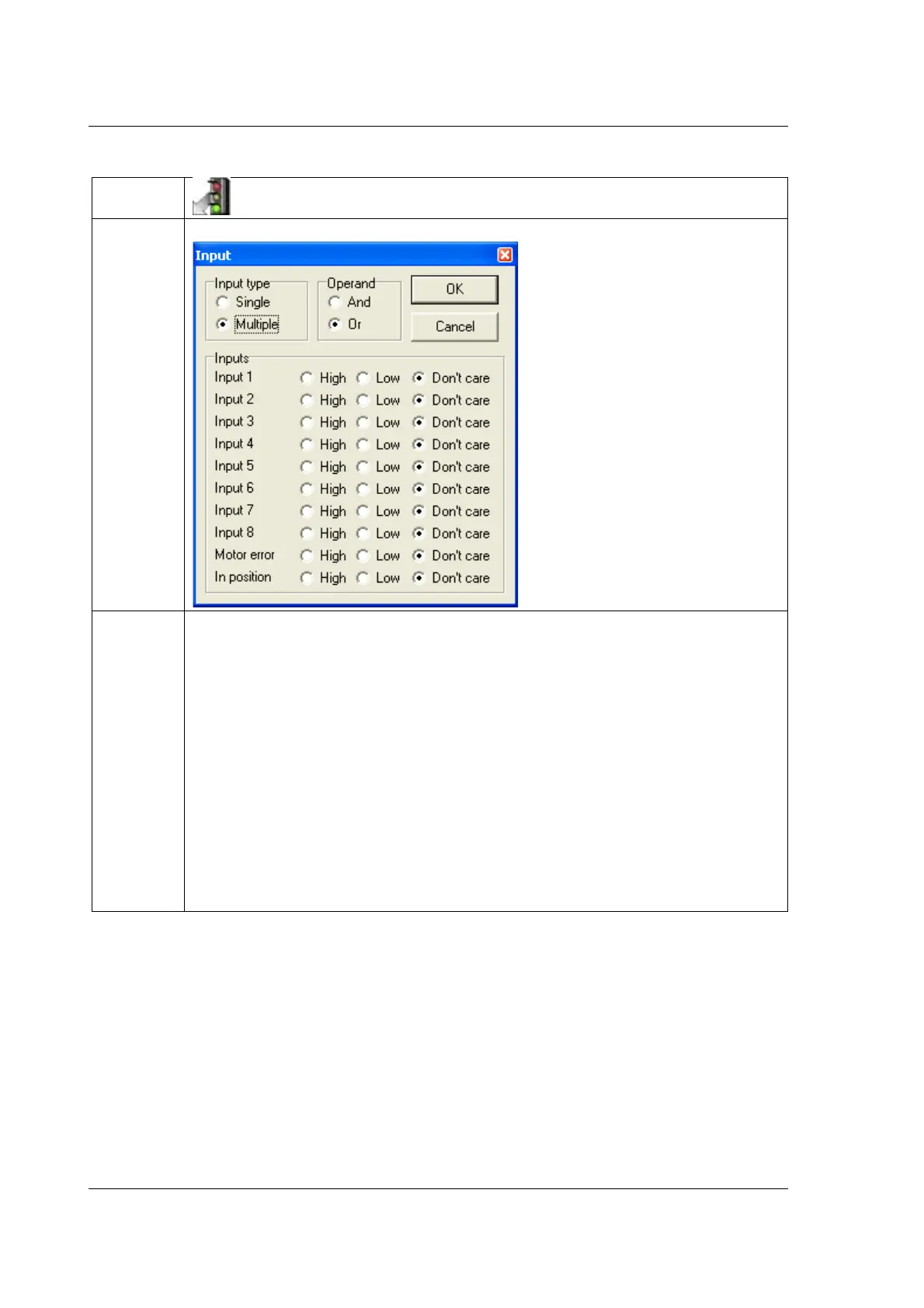

Icon:
Dialogue:
Function: Tests for an input condition before either jumping to another line in the
program or moving on to the next line in the program. If the condition is met,
the command jumps to the specified program line. If the condition is not met,
the program proceeds to execute the next line in the program.
When ‘Input type’ is set to ‘Multiple’, multiple inputs can be tested for being
either high or low. The ‘Operand’ setting determines whether one or all of the
inputs must meet their test criterion. If set to ‘And’, all inputs must match their
test settings. If set to ‘Or’, only one input need match its test setting. Inputs
that are set to ‘Don’t care’ are not tested.
After pressing the OK button, the dialogue will disappear, and the mouse
cursor will change. The next program line that you click on will then become
the destination of the jump command.
