62 JVL Industri Elektronik A/S - User Manual - Integrated Stepper Motors MIS23x, 34x, 43x

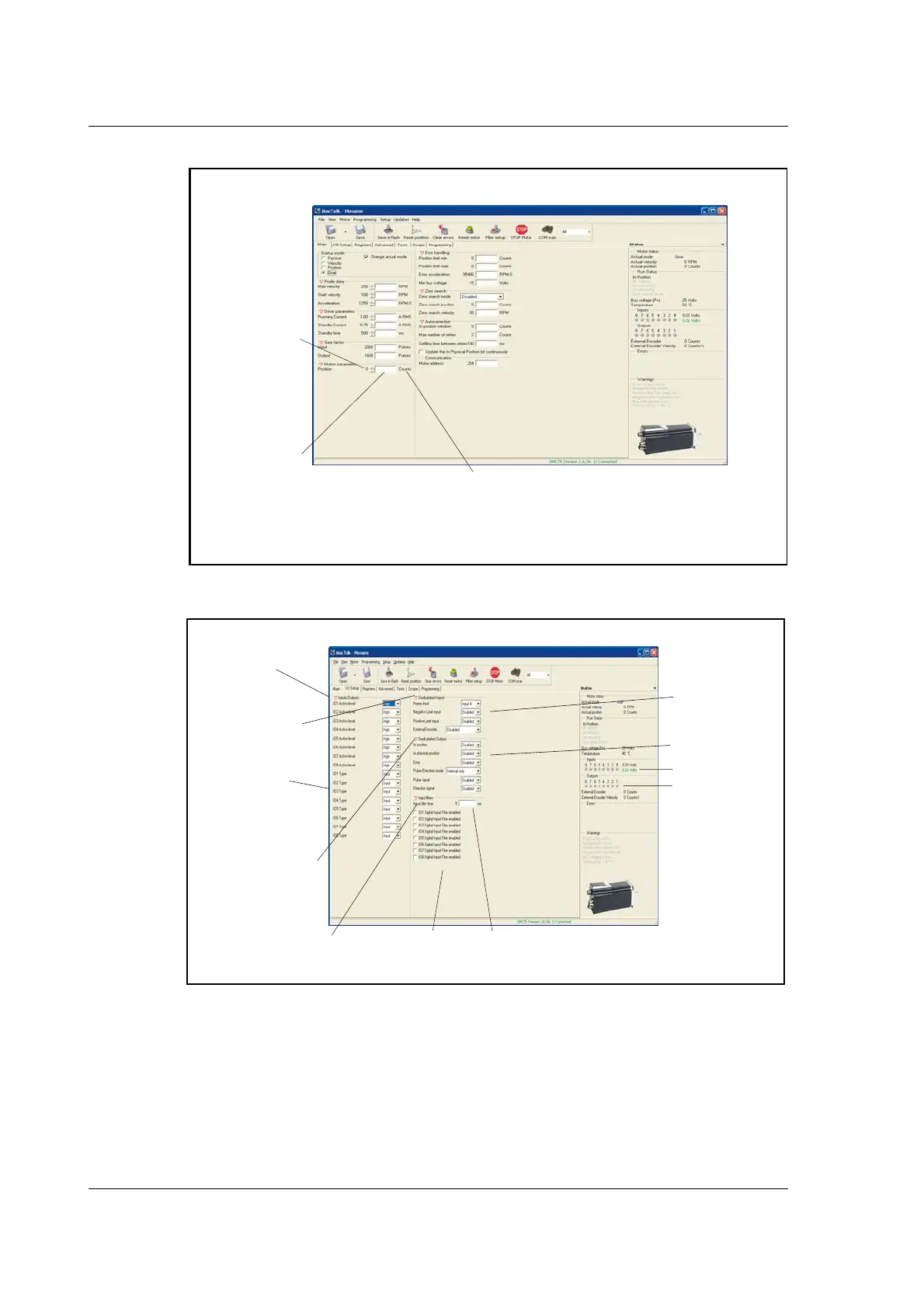

4.1 Using the MacTalk software
4.1.4 Main Screen
4.1.5 I/O Setup tab
*) The analogue value of certain inputs can be read. Click at the input lamp and the ana-
logue value will be shown. The upper value is the actual value and the lower value the
filtered value.
a) This field shows
the register values
in the controller
b) Here it is possible to
key in new values. After
pressing enter the value
ill be transferred to the
motor and thereafter be
read again from the controller
and be shown at point a.
Because of digitalizing of
he keyed in value, the
returned value in a) can be
different from the value in b).
c) By pressing the unit field it is possible to change between internal unit in the control
ler and the unit shown to the user.
E.g. If user unit for current is ARMS and the internal unit is 5.87mA (300ARMS cor-
respond to 511 units.) Not all registers have different internal and user unit. Speed
for exam
le is alwa
s
ecified in RPM.
TT2182GB
Active level can be
chosen to high or
low on inputs
Selection if it shall
be Inputs or Outputs
Dedicated Outputs
Selection for outputs ”In position”,
”In Physical Position”, ”Error”
output. It can also be selected
if the pulses generated shall be
used internally, externally or both
and which output should be used
for pulse and direction signals
Dedicated Inputs
Selection for Inputs
HM, NKL and PL
An external encoder can
also be selected here and
defined as either quadrature
or pulse/direction type.
Selection if IO´s
shall use filters
Input filters
Here the filter for the
digital inputs can be selected.
Filter time constant can be adjusted here.
The same value is used for all inputs if filter
in
uts are enabled.
Status of the outputs
Status of the inputs *)
Selection of output fo
In-Position and Errors
Selection of Inputs for
HM, NL and PL
TT2183GB
