5.5 Absolute Multi-turn Encoder
5.5.2 How to Preset the encoder position.
After installing the motor it is normally desired to make an alignment of the encoder po-
sition which represent the "Actual position" compared to the actual physical position of
the motor and its load.
This operation is recommended to do in the following manner.
1. Set the motor in a known position
2. Insert the corresponding position value as shown below.
3. Press the “Set position” button to preset the new position value.
4. The encoder position and all other relevant position registers are now preset with
the new value. No further action is needed. The motor will remember this change
also during power off.
Only MISxxx---H3--
TT2339-01GB

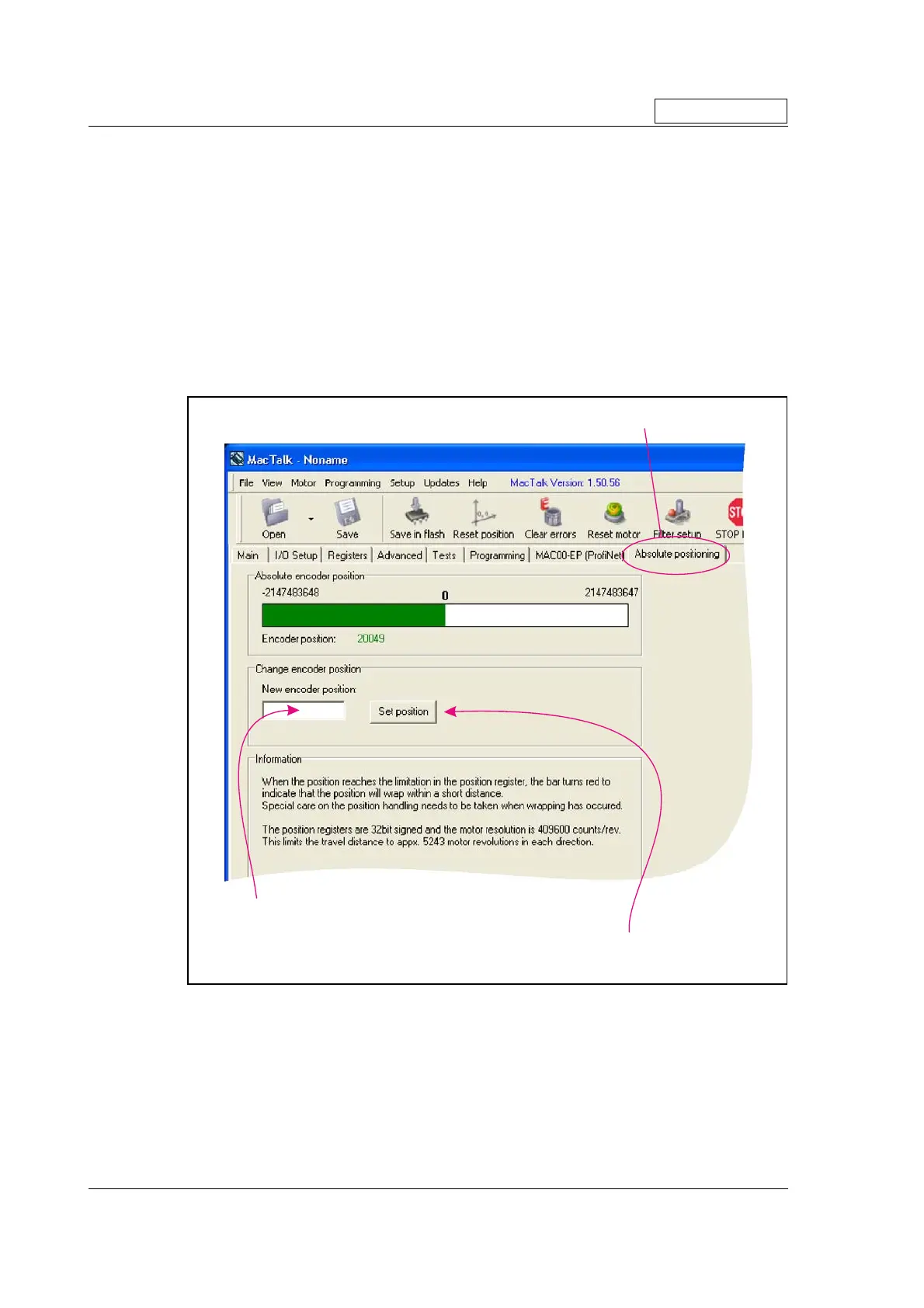

First the new value that the encoder
must be preset to must be typed here
Select the «Absolute positioning» tab
Secondly press «Set position» in order to
p
reset the encoder counter with the new value.
